3 Axle 40Ft Flatbed Semi Trailer

Flatbed Semi Trailer

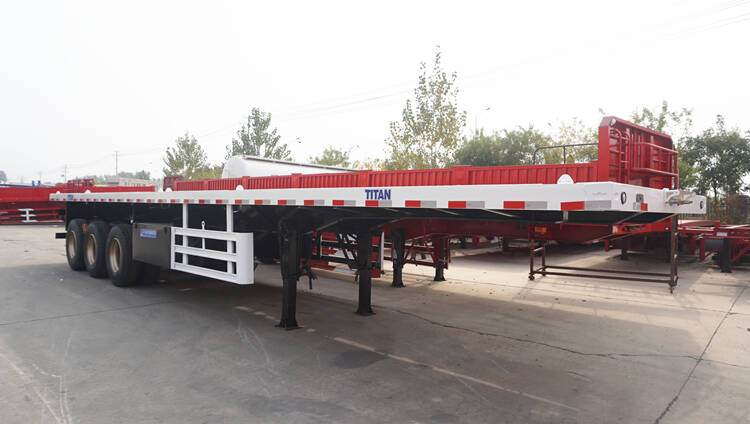

3 Axle 40Ft Flatbed Semi Trailer

TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

TITAN 3 Axle 40 Ft Flatbed Trailer--USD 12000

Specification:

Dimension: 12500*2500*1530mm

Material: Q345B

Axle: 3 axles, 13 Tons

Tire: 12R22.5, 12 units

Main beam: 500mm high, 8mm thick; Upper: 14mm; Bottom: 16mm

Side beam: 16# channel steel

Suspension: 8mm thick；king pin：70mm

Spring:13mm thick, 10 pcs

Landing gear: Jost 28 Ton

Bottom platform: 3mm checked plate

Brake system: WABCO emergency relay valve

Light: LED light

Tool box: 1 set tool box

Color: Optional

Twist locks: 12 set

Advantage

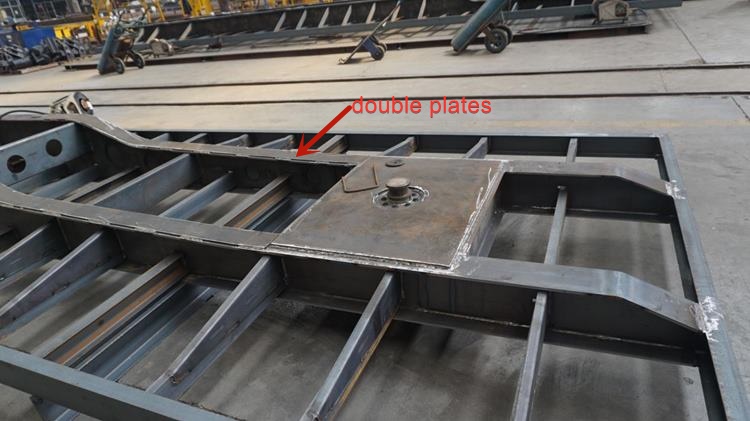

Reinforcement of the beams: The goosenecks of the beams are reinforced with vertical plates, so that the deformation of the vehicle will be small when the vehicle is under heavy load, and it will be more durable. Gooseneck double-layer beam vertical plate.

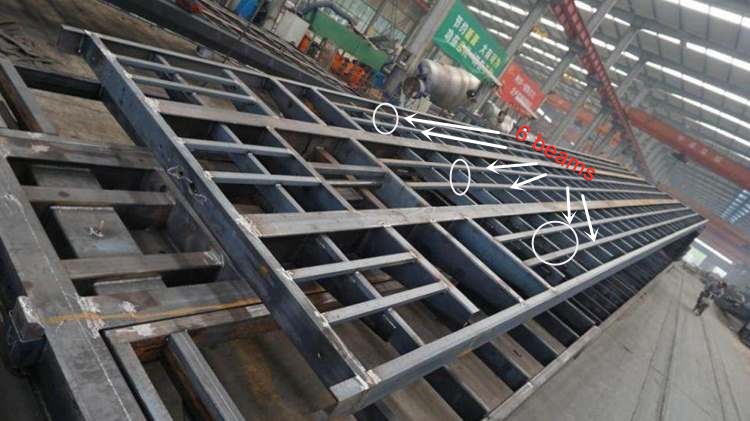

Titan used 6 bottom-laying beams, which effectively guaranteed The flatness of the base plate.

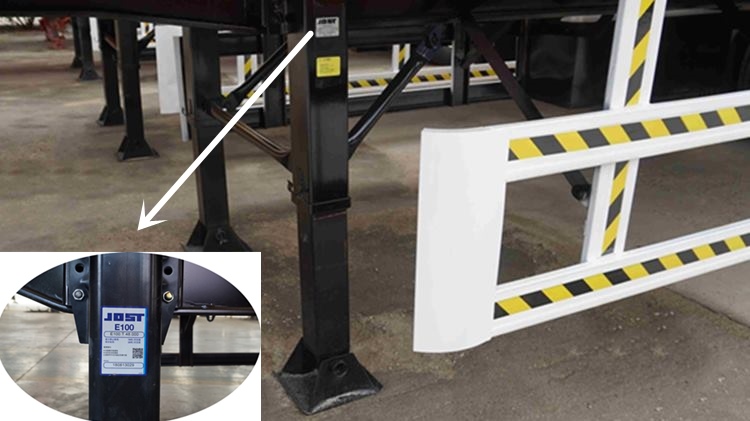

The landing gears are reinforced with triangles to prevent them from tilting front, back, left and right. And TITAN used the world famous brand-JOST 28 Ton.

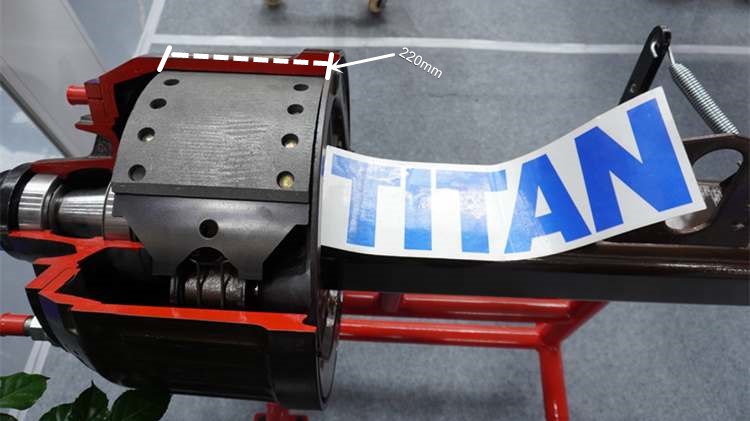

The brake valve is WABCO. The width of the brake pads is 220mm. Many factory brake pads are only 180mm wide, which reduces braking performance and increases stopping distance.

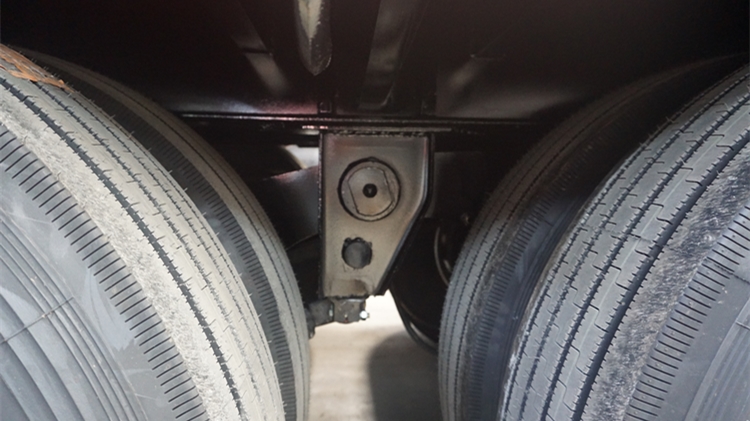

The suspension is reinforced, king pin is 70mm. The suspension vertical bars are lengthened, which can effectively prevent the suspension from welding and cracking, and increase the strength; and the suspension is reinforced at the front and rear, left and right. (A separate road condition for Africa is involved, which can meet dirt roads and bad road conditions)

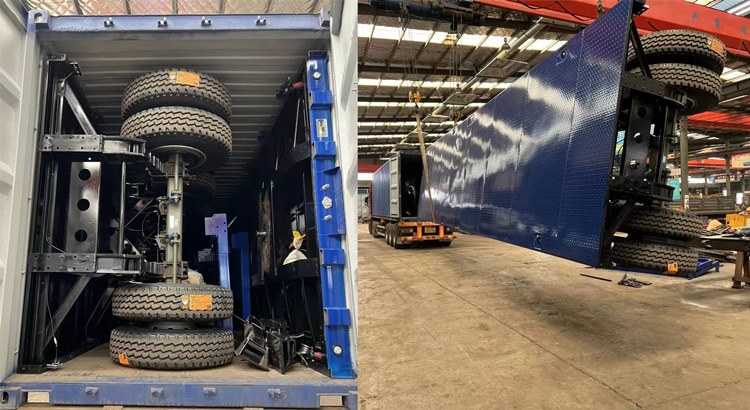

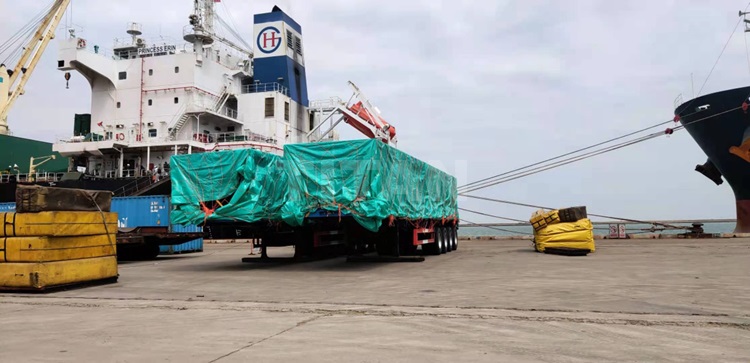

TITAN has professional packaging and shipping methods. It can be transported in containers or in bulk. For bulk transportation, we will spray wax on the vehicle and wrap it with a rain cloth.

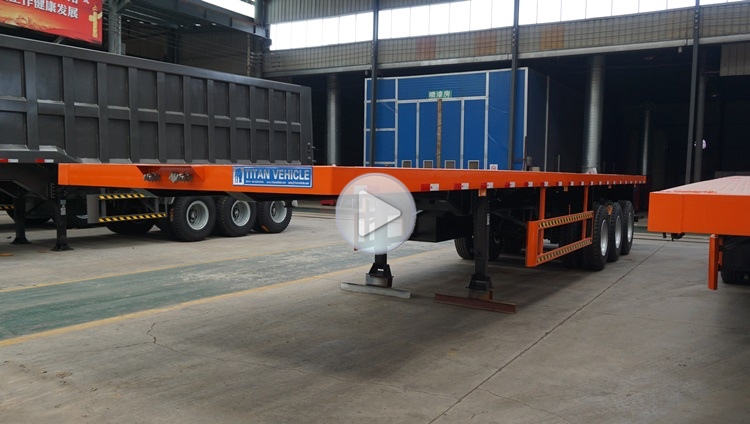

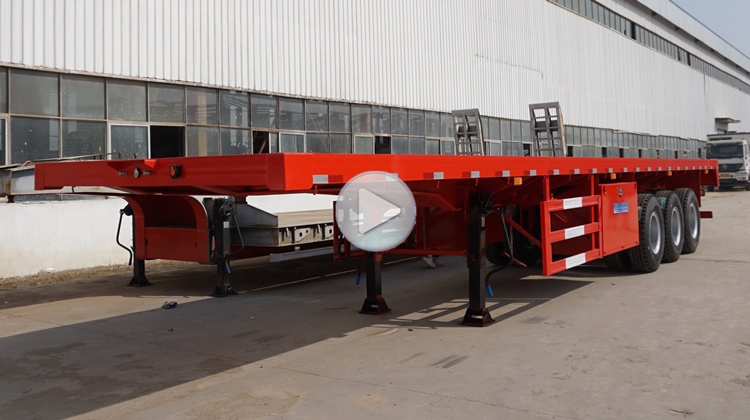

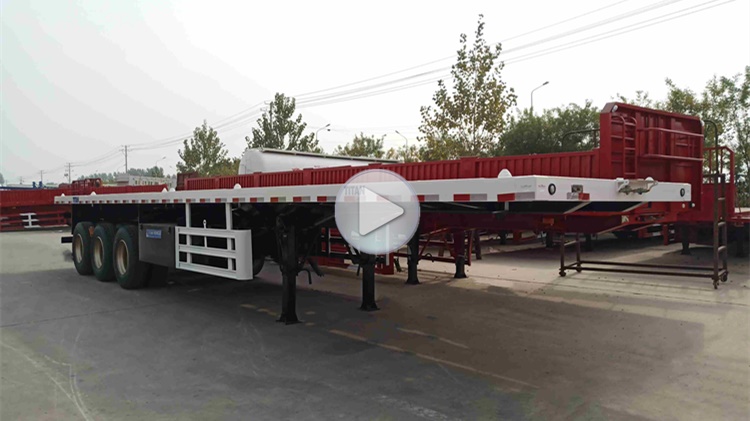

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
