1. About Skeletal Semi Trailer

The skeleton trailers is specially used for the transportation of various containers. It can be used repeatedly for a long time and has high strength characteristics. The skel trailer is widely used in modern logistics and transportation.

TITAN 20 ft / 40ft skeleton trailer can transport two 20-foot containers or a 40-foot container. The specific parameters of the container trailer, painting, etc. can be customized according to customer requirements.

TITAN could offers customers 2 axle, 3 axle, 4 axle 20 ft / 40ft skeleton trailer and 20ft, 40ft and 48ft container chassis trailer for sale.

3 axle 40ft skeleton Trailer

2 Axle 40Ft Container Chassis Trailer for Sale

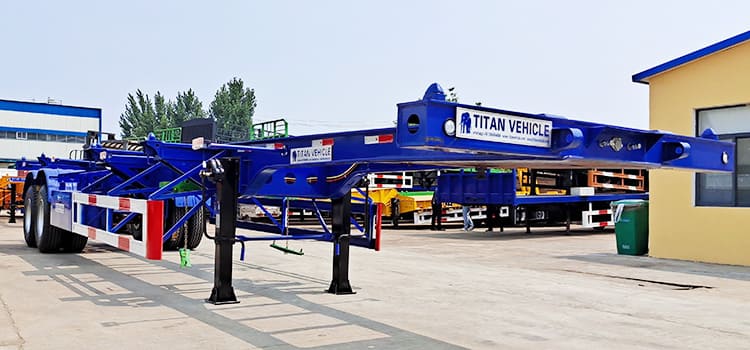

2 axle 40ft skeletal trailer

2 Axle 12M Container Skeletal Semi Trailer for Sale

3 axles 40ft skeletal trailer

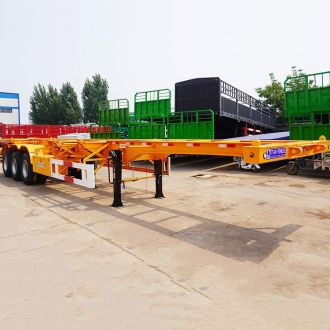

Tri Axle 40 Ft Container Chassis for Sale


2. Skeleton Trailer Specifications:

Dimension(mm): 12500x2500x1430mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

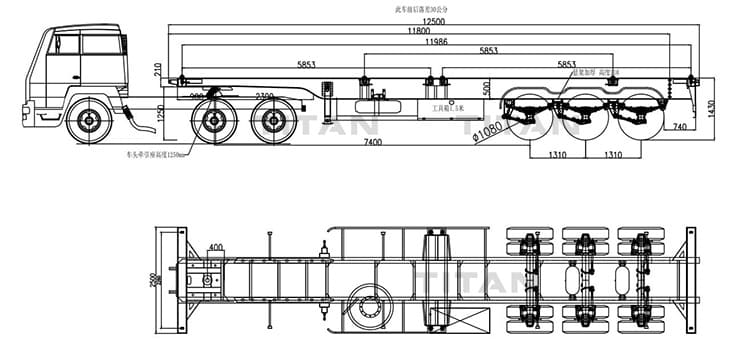

3 Axle 40Ft Shipping Container Trailer

Drawing of the 3 Axle 40Ft Container Trailer

3. Container Chassis Trailer Advantages

1 The bearing surface of the skeleton trailer is low, the center of gravity is low when the goods are fully loaded, the lateral stability is good during driving, it is not easy to roll over when turning, and the safety of the container trailer for sale is improved;

2. The skel trailer for sale has a small shape and small wind resistance during driving, which can save fuel;

3 The bearing surface is low, which can reduce the labor intensity of loading and unloading personnel and improve loading and unloading efficiency;

4. The unique beam structure reduces the amount of welding of the whole vehicle, reduces the deformation of the frame, effectively reduces the stress concentration caused by welding, etc., increases the fatigue strength of the beam, and avoids the fracture of the beam;

5. The modular design concept not only reduces the weight of the body, improves the stability of the frame, increases the cargo capacity, and prolongs its service life
