The most unique advantage of the 12m skeletal trailer for sale is the flexibility and variability. The skeletal trailer has no floor plate or top panels, which can facilitate the loading and unloading of containers to the greatest extent. At the same time, the installation of 2 axles can ensure that the skeletal trailer chassis's load-bearing capacity is greatly increased, reaching a maximum load-bearing capacity of 60 tons, and can also improve the 12m skeletal trailer for sale's braking efficiency.

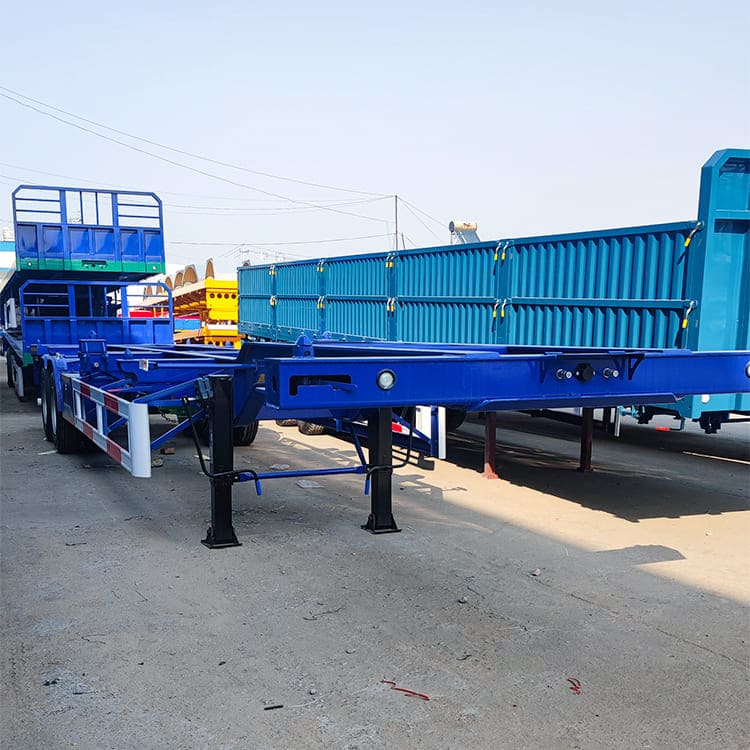

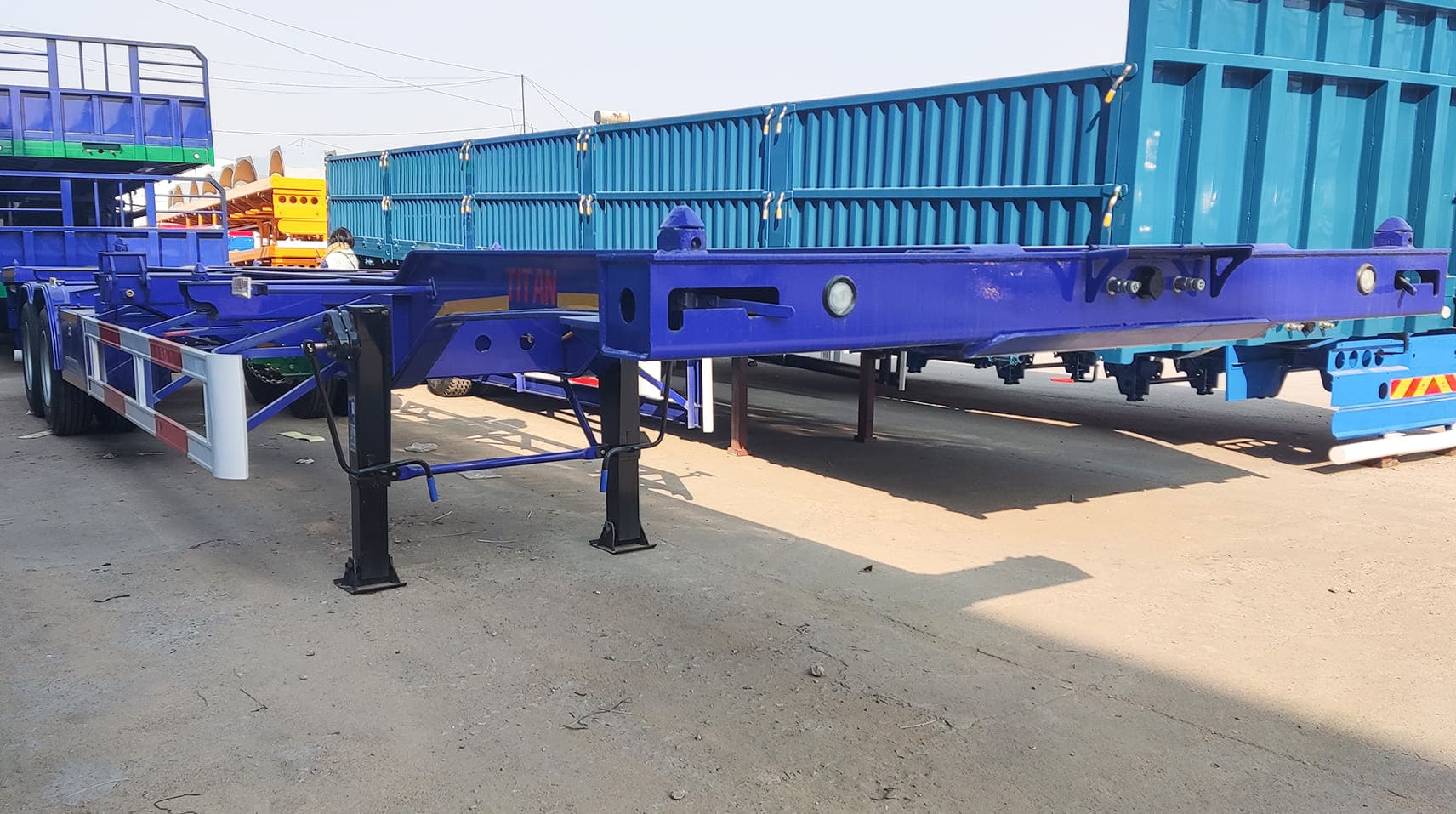

12m Skeletal Trailer Chassis for Sale in Panama
12m Skeletal Trailer Chassis for Sale in Panama
Model: 12m Skeletal Trailer
Overall Dimension: 12500mm*2500mm*1500mm
Load Capacity: 60 ton
Trailer Feature: without floor plate
Axles: 2 axles, 13ton
Tire: 8 units, 12R22.5
Landing Gear: 28 Ton
Suspension: mechanical suspension
Bumper: 4mm thick

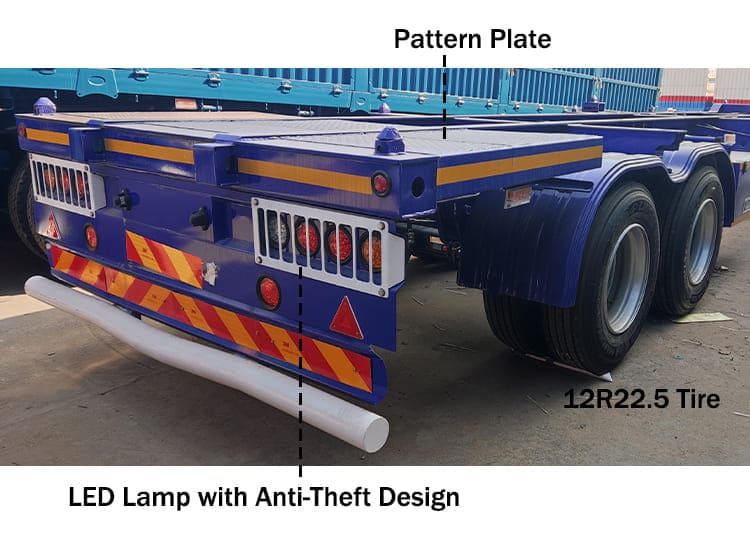

Lamp: LED Lamp with anti-theft design

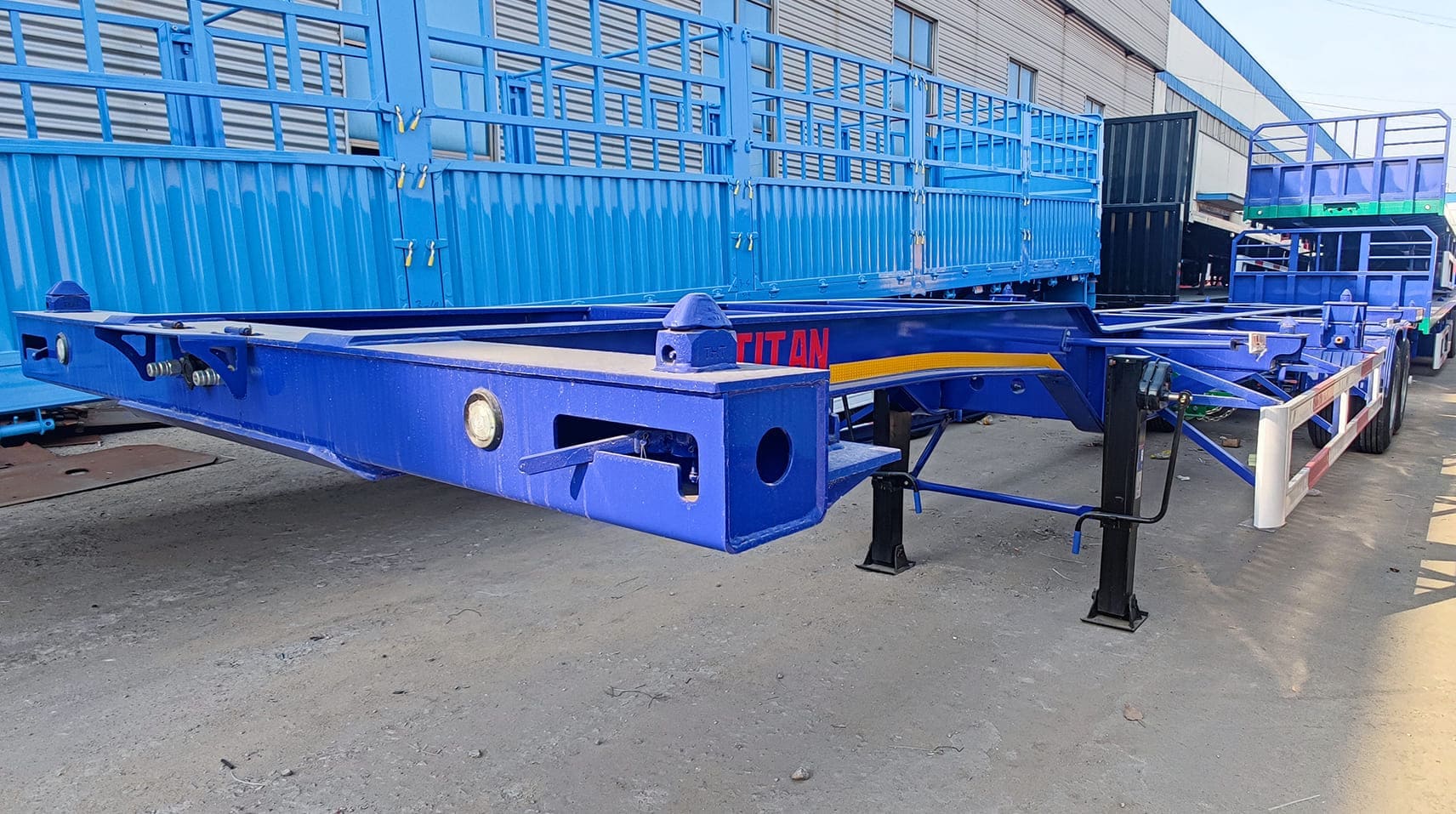

The skeletal trailer's cross beam is firmly connected to the main beam by diagonal bracing to form a stable structural frame of the 12m skeletal trailer for sale. The spacing of the diagonal bracing is controlled within 500mm, so that each point of the cross beam can be evenly compressed to avoid deformation of the skeletal trailer body. The 12m skeletal trailer for sale cross beam is made of 100mm thickened channel steel, which can carry larger tonnage of containers and is suitable for the various transportation needs of Panama customers.
The blue appearance of the 12m skeletal trailer for sale can provide excellent visibility during transportation. The surface treatment of the skeletal trailer chassis adopts advanced powder spraying and baking painting technology. Compared with traditional painting methods, this process can achieve high gloss, and can also customize the color to meet the personalized needs of Panama customers. At the same time, the skeletal trailer for sale has high adhesion, and under normal circumstances, this process can ensure that the paint will not fall off within 5 years, greatly reducing the maintenance frequency to reduce the maintenance cost of skeletal trailer to Panama customers.
The thickness of the TITAN 12m skeletal trailer for sale bumper is 4mm, and combined with the powder spraying and baking painting process, which can prevent the skeletal trailer chassis from rusting and corrosion under dry or wet transportation conditions. In the event of a collision, the thickened bumper can effectively cushion the impact of the collision and avoid serious damage to the skeletal trailer and cargoes in container.
The skeletal trailer chassis is equipped with 16 tons of brake pads, which effectively improves the braking response of the skeletal trailer. The breaking system can prevent the tires from locking during emergency braking, protect the tires and extend the service life of the 12m skeletal trailer for sale. High-tonnage brake pads can also help shorten the braking distance of the skeletal trailer chassis, which can be shortened by more than 5m, and can adapt to the complex road conditions in Panama. At the same time, the brake air pipe uses a high-pressure rubber pipe, which is more durable than ordinary air pipes and can effectively extend the service life by 10 years.

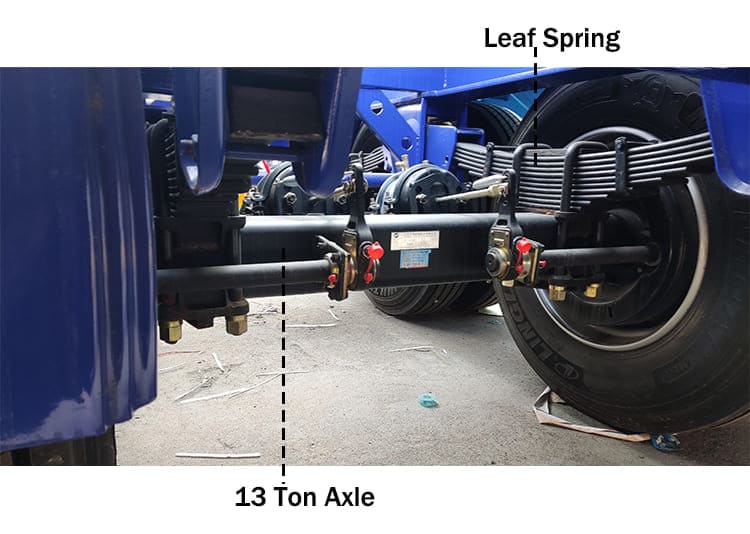

The 12m skeletal trailer for sale mechanical suspension is equipped with a 13 ton axle to cope with the high-frequency impact of gravel on the skeletal trailer chassis. The leaf spring of the mechanical suspension can effectively absorb strong vibrations to protect the skeletal trailer chassis and containers from damage through a multi-layer superposition design. The front, back, left and right sides of the 12m skeletal trailer for sale mechanical suspension have been reinforced, and are equipped with a 70mm center balance pin to ensure normal use in hot weather, which makes the TITAN skeletal trailer highly competitive among a number of skeletal trailers.
Transportation can be shipped by a container. The 12m skeletal trailer for sale can also shipped in RORO ship. Before delivery, TITAN spray wax and cover all skeletal trailer chassis with waterproof raincoats, which can effectively prevent them from being corroded by seawater and sea winds during shipping. TITAN skeletal trailer is worth mentioning that other companies do not have this similar services.
