Chapter 1: About TITAN semi tipper trailer
Chapter 2: About tipper trailer
TITAN semi tipper trailers can be used in many other fields such as construction, agriculture, etc. We have different shapes and types of semi tipper trailers, which are divided into side tipper trailer and rear tipping trailer. skeleton end dump trailer, and flatbed type tipping trailer, Drawbar tipper trailer.
Hydraulic semi tipper trailers for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons tipper tractor trailer, 120 tons-180 tons tipper semi trailer of different tonnage according to the different cargoes. The common volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.
Through the video below, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer.
And the process, testing, packaging and customer feedback, etc.

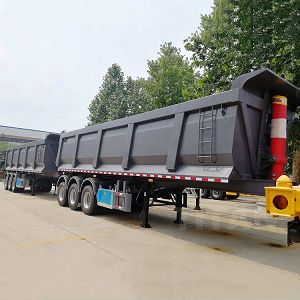

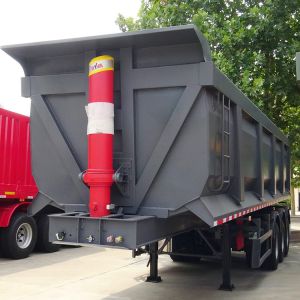

U shape tipper semi trailer for sale

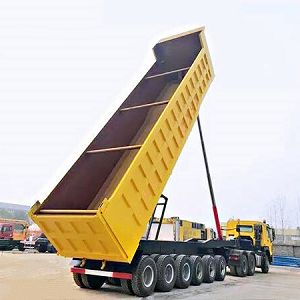

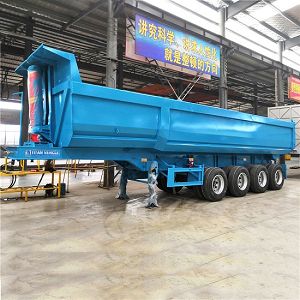

60-80 ton hydraulic semi trailer

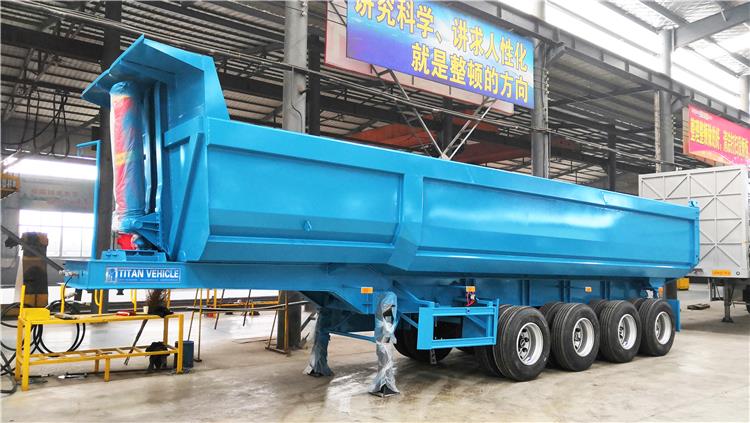

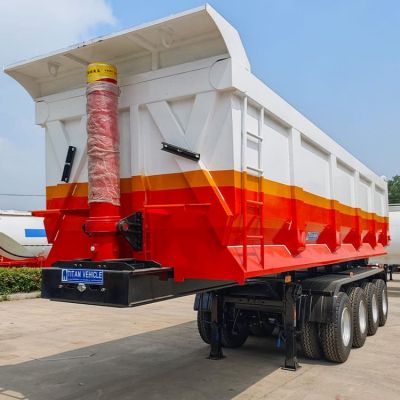

4 axle semi tipper trailers for sale near me
TITAN lifting hydraulic system lifting operation sequence: Open the tarpaulin or box lid on the semi trailer tipper for sale——Open the rear door lock——Press the clutch with the transmission in neutral and wait 5 seconds——Hanging low gear (below 4 gears)——Place the handle of the air control valve in the raised position——The semi trailer tipper starts to lift after releasing the clutch, The engine throttle can be properly depressed but it must be controlled within 1500 rpm-when the cylinder reaches the maximum stroke or the limit valve is activated, the air control valve handle is in the stop position.
The tractor gearbox uses an external power take-off to pressurize hydraulic oil pump. The hydraulic tipper trailer hydraulic oil pump controls the hydraulic oil pressure to achieve the lifting or lowering of the semi tipper trailers for sale hydraulic cylinder. Generally, tipper semi trailer can be fully lifted in 30 seconds to achieve unloading.
Container tipper chassis & tipper semi trailer for sale
TITAN end dump trailer is the front end of the trailer connected to the rear end of the tractor. Part of the total weight of the trailer is borne by the tractor. It doesn’t have itself power, it is carried together with the truck head, and the end dump trailer for sale is driven by the tractor.
A full trailer is also the same without its own power device. The tractor only provides a pulling force and does not bear weight. That is, a full trailer is added behind the ordinary tipper trailer, and the two are connected by a hook. The load of the end dump trailer for sale is fully borne by itself, and it is only connected to the locomotive with a hook. The locomotive only provides power to help the trailer overcome the frictional resistance of the road.
rear tipping full trailer VS end dump trailer

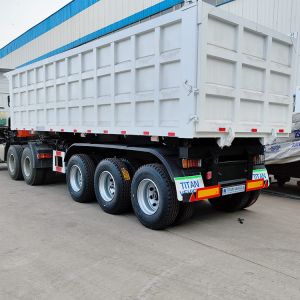

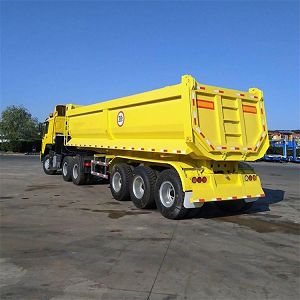

Name: 3 axle semi tipper trailer
Overall dimension：9500mm * 2500mm *3900mm
Capacity : 35CBM
Suspension：Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Brake system: WABCO
Electrical system: 24V, LED lights
semi tipper trailer Dimensions
80 ton tipper semi trailer technical parameter drawing

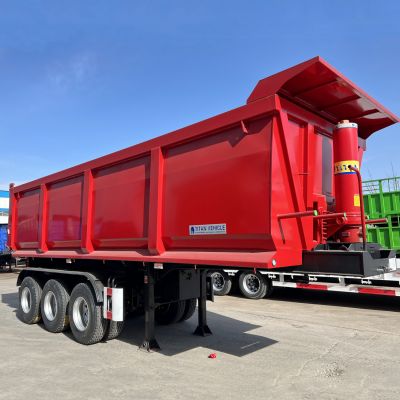

Tri axle end dump trailers for sale details video
U shape tipper semi trailer technical drawing

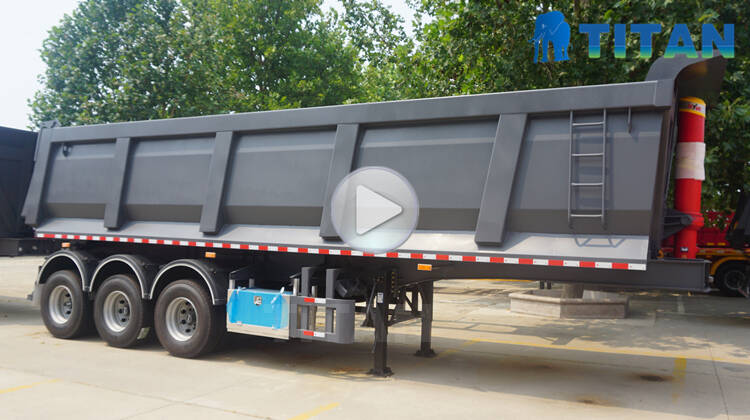

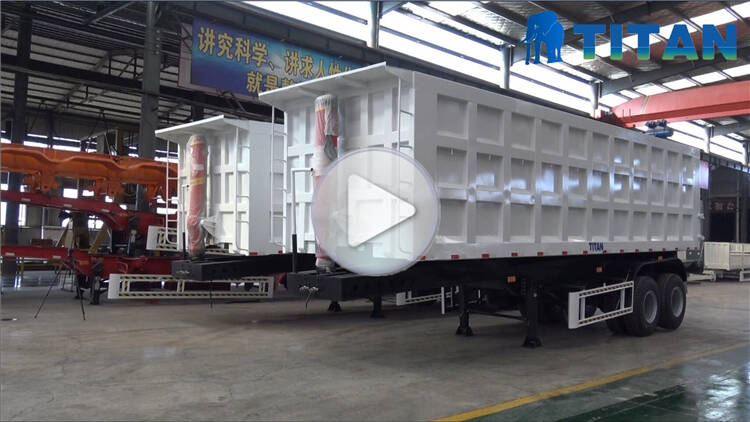

Semi tipper trailers for sale details video

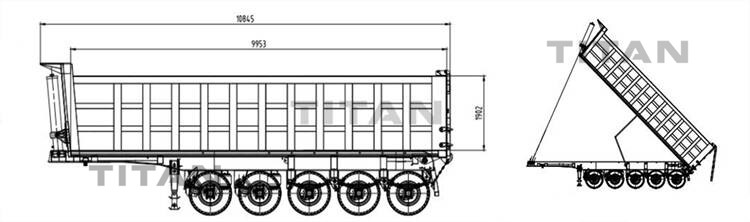

5 axle tipping semi trailer technical drawing
6 axle heavy duty tipper semi trailer drawing

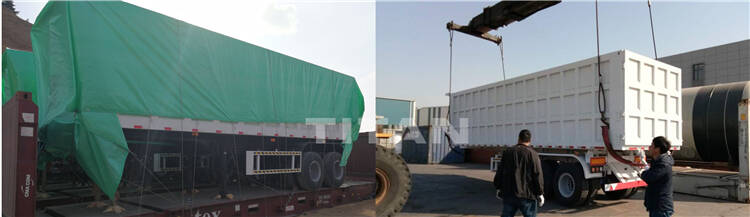

To prevent the TITAN semi trailer tipper for salepaint from being corroded by seawater, TITAN sprays a layer of wax on the surface of the dump trailer before shipping, and then seal it with a waterproof rain cloth.
Package of semi trailer tipper for sale
Here is feedback from our Ecuadorian customers who are satisfied with our semi trailer tipper. He is very satisfied with our semi trailer tipper, he has been cooperating with TITAN for many years and often introduces his friends to us.
New Semi Trailer Tipper for sale feedback
There are four types of semi trailer tipper: rear dump semi trailer, container dump trailer, side tipper trailer for sale, dump truck and trailer for sale, 20&40 feet Container Tipper Semi Trailer.
The dump truck trailer for sale manufacturer’s hydraulic dump trailer can be customized from 15 tons to 80 tons semi dump trailer capacity, 80 tons to 120 tons new tipper trailers for sale, 120 tons-180 tons tractor tipper trailers for sale of different tonnage according to the different cargoes. The volume of the semi tipper trailers for sale can be customized according to the needs of the customers.
Semi Tipper Trailers for sale will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained.
Semi Tipper Trailers are also called end dump trailers. Semi Tipper Trailers are usually used to carry building materials such as sand, stones, ore, and scrap iron.
It is important to note that the length of the new tipper trailers for sale cannot exceed 12m. Because the roadbed is not hard enough, the longer it is, the easier it is to overturn and cause the Semi Tipper Trailers for sale to be scrapped.
Different types of semi tipper trailers for sale
The striking feature with the container tipper chassis trailer is a mechanism that makes it easy to unload the container.There are apparatus added as modifications to the conventional chassis trailer models further simplifying the process of offloading cargo from the container.
The container tipper chassis hydraulic system mounted on the upper platform facilitates the offloading process causing the container to tilt upwards to offload cargo. container tipper chassis is definitely one of the safest means of offloading shipping containers. There is a roller situated at the upper frame, some distance from the pivot device connecting it to the lower frame.
However, container tipping chassis trailer presents a very convenient option for use in the transportation of cargo using containers. The pivotal drive on the upper frame translates to a change in the distance between the roller and the securement point of the 3 axle dump trailer for sale cable in relation to the lower frame. This results in the lift and movement of the loaded container without the need to search for external equipment such as a winch device to trigger the desired distance.
The container tipper trailer roller rotates around the point of mounting on the upper frame. Movement of the roller can now be realized in relation to the lower frame. Ideally, the container tipper chassis trailer comprises upper and lower frames attached by way of a pivot device. In such an arrangement, no external equipment will be required for offloading cargo from the container.
The container tipper chassis trailer comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.

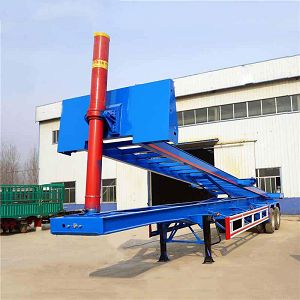

Container tipper chassis trailer for sale

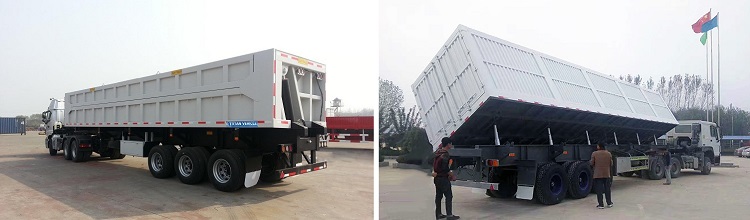

The side tipper trailer is designed to fall sideways for a reason, and you may be forced to unload in areas where there is not enough space.
In this case, you can use side tipper trailer to help save space. The load capacity of the side tipper trailer may be greater than that of the rear tractor tipper trailer.
Semi tipper trailer: its side tippers for sale body length can be 8 meters to 12 meters, according to customer needs.
Side tipper trailer for sale : suitable for large workplaces, side tipper trailer maximum carrying capacity can reach 80-100tons.

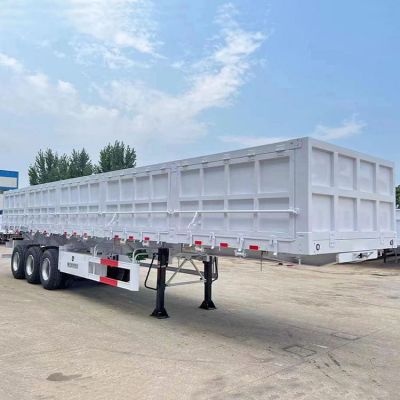

3 axle Side tipper trailer for sale
1. Mine place: According to your requirements, the 6 axle dump truck and trailer for sale engine can choose 290 ~ 420hp. Choosing a short wheelbase improves the strength of the frame and the passability of the dump truck trailer for sale. For the self-unloading system, you can choose mid-top or front-top.
2. Urban buildings: dump trucks usually drive on urban roads with a travel distance of less than 200 km. 336hp or 380hp engine power is the best choice. Choose 6 × 4 or 8X4 tractor semi trailer end dump truck according to the load capacity.
3. For transportation distances over 200 kilometers, it is best to use 8X4 dump truck and trailer for sale to load more goods.

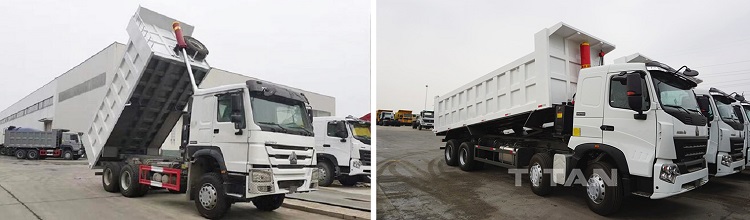

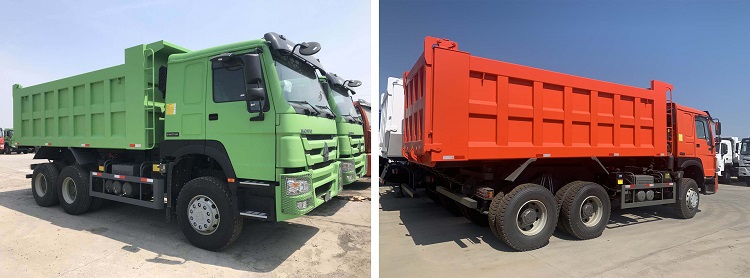

6×4 and 8×4 Sinotruk dump truck and trailer for sale
(1) It is forbidden to disassemble and adjust the relief valve on the lift valve, otherwise, the semi tipper for sale hydraulic system will lose its safety protection function and cause an accident.
(2) Do not leave the semi tipper for sale cylinder exposed to the air for more than 2 hours (more than 30 minutes in humid air) in a lifted state, otherwise it will cause oxidation and rust of the cylinder;
(3) The semi tipper for sale hydraulic tank of the auction is a special lifting cylinder. Don’t use the cylinder as a stable support for the semi tipper for sale body.
(4) When the semi tipper for sale load cargo, we should ensure that the front and back and left and right loading are uniform. If you have too much cargo in front, semi tipper trailers for sale can overload the hydraulic system. Too much cargo is loaded behind the trailer, which will cause the semi tipper for sale to tip over when unloading, and the left and right partial load will easily cause the cylinder to tip over.

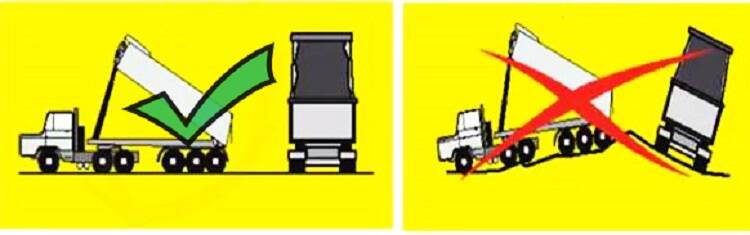

(5) When unloading, please make sure that the ground around the light weight semi tipper for sale is solid and flat, keep the semi trailer tipper stable, and ensure that the main chassis tipper for sale and the Scrap Tipper Trailer are in a straight line;
(6) During the dumper trailer for sale lifting operation, the operator must pay attention to the influence of lateral wind, because the long body of the semi tipper for sale will cause the dumper trailer to roll over under the effect of lateral wind;
(7) Don’t make the height of the cargo exceed the hydraulic tipper trailer back door. Be sure to open the semi tipper for sale rear door locking device before lifting and unloading, otherwise the cargo will be crowded at the rear of the semi tipper for sale and the semi tipper trailer for sale will tip over when unloading;
(8)During the lifting operation, the operator cannot leave the operating position, and no one can stand or walk in the vicinity of the work area;

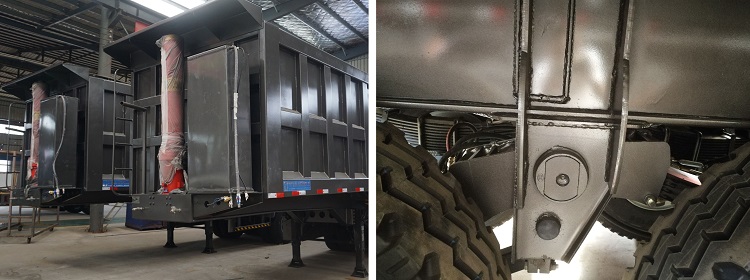

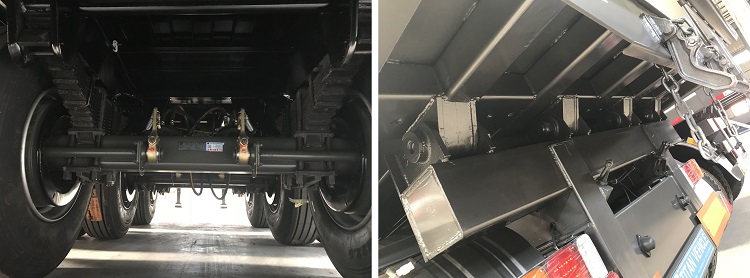

Details of semi tipper trailer for Sale
Although tipper semi trailer owners drive carefully, traffic accidents still occur. In traffic accidents, the most frightening thing is hydraulic tipper semi trailer for sale near me. Due to the high quality, difficult braking, and large blind spots, the loss caused by accidents is unimaginable. However, as long as the safety performance of the tipper semi trailer is in place, safety is still guaranteed.
The hydraulic tipper semi trailer for sale near me has a heavy weight and long braking distance, especially after loading the cargo. However, in the current semi trailer tipper, there is no upgrade of the rear dump semi trailer in this configuration, which makes the safety performance unchanged. The brake pads of the Tipper Semi Trailer have been greatly upgraded in this respect, and they are also equipped with an ABS anti-lock brake system, which makes the braking distance of the tipper semi trailers for sale shorter and the safety more guaranteed.
Tire pressure monitoring configuration
As the only part of the tipper semi trailer that contacts the ground, the tire pressure actually affects the safety of the Tipper Semi Trailer to a large extent, but the dump trailer prices transportation generally has a long working cycle, and the driver will be very tired after working for a long time, so I will not pay attention to these details. The change of vehicle tire pressure will affect the fuel economy and safety of the tipper semi trailer for sale. If the tire pressure is not kept within the normal range in time, it may cause an increase in fuel consumption or a tire burst.
The tipper semi trailer driver can keep track of the tire pressure of the hydraulic tipper trailer at any time, so as to adjust in time, so as to avoid the loss caused by the tire pressure being too high or too low, and driving is safer.
Details of tipper semi Trailer for Sale
Tip trailer rollover is a common traffic accident. The body of the 3 axle tipper semi trailer is not easy to control and it is difficult to turn. There are not many rollover accidents. Moreover, in rainy or snowy days, the driving conditions are complicated and problems are more likely to occur.
The front and rear axles of the tipper semi trailer chassis are now equipped with stabilizer bars to prevent semi trailer tipper rollover, which greatly improves safety performance, and there is also a lateral dual hydraulic shock absorber under the cab, which also has the prevention Roll function.
1. Why doesn't the semi tipper trailer lift?
Check the distribution valve: Check whether there is gas in the air pipe on the distribution valve. Press the lift and down switches to check whether the two tracheae on the distribution valve have air. If there is no gas, it means that the solenoid valve that controls the lifting and lowering is faulty, and the solenoid valve should be replaced.
Check the power take-off: First, see if the semi tipper trailer drive shaft connected to the oil pump rotates. If it does not turn, it indicates that the solenoid valve of the power take-off or the power take-off itself is defective; If it rotates, it indicates that the power take-off is ok. Should further investigate.

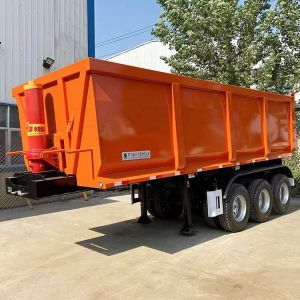

3 Axle semi Tipper Trailer For Sale
Check the oil pump: Whether the rotation direction of the semi tipper trailer for sale oil pump is correct. Extend the left hand, the thumb is facing the spline of the oil pump, and the rotation direction of the remaining fingers is the same, it is the left-handed pump, otherwise, it is the right-handed pump. Whether the oil pump is damaged. Wear of the oil pump will cause the high and low pressure chambers of the oil pump to communicate and fail to pump oil.
Sometimes in the carriage lifting process, there will be a climbing phenomenon, this phenomenon is mostly due to the hydraulic system, air intake, the cylinder is full of oil and gas mixture caused by.

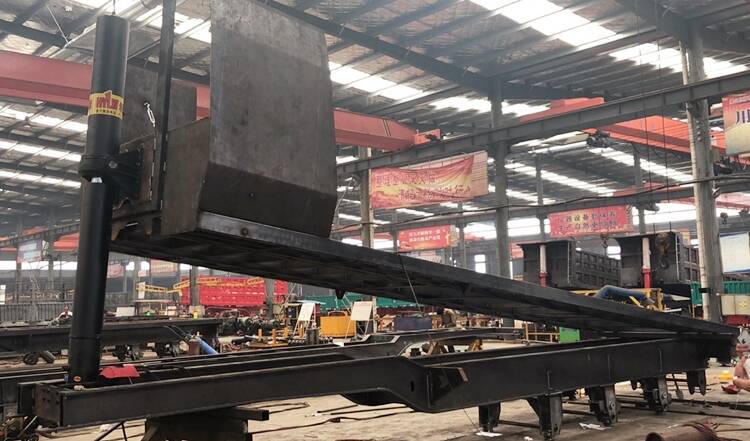

Production Process of Dump Truck Trailer
2. What are the important hydraulic components of the hydraulic lifting system and what role do they play?
Oil pump, supplying oil; One-way, valve - controlling the flow of oil; Distribution valve (rotating valve), controlling the lifting and lowering of the vehicle box; Oil cylinder, generating thrust.
3.Why does the gear pump have an abnormal noise? How to exclude?
With a dump truck trailer that has been used for a while, it's possible that the feed line has aged, or the filter of the oil outlet of the oil storage tank is blocked, causing a poor oil feed.
Sometimes when the pickup force, gear pumps make a rasping noise, which is mostly due to insufficient oil pump into the oil caused by.
Dump truck trailer this phenomenon, maybe the oil pump into the oil pipe is too thin or into the oil pipe is deflated caused by.

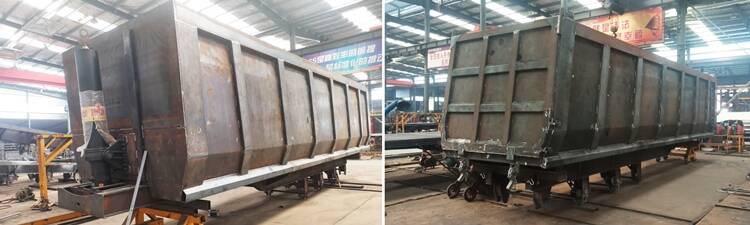

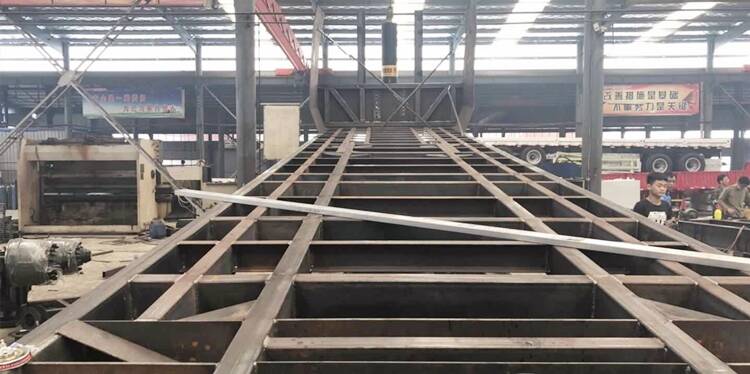

Factory show of Tipper Trailer for Sale
The reasonable weight matching of the entire vehicle, the dump industry also follows the principle of light truck pulling, but considering the special nature of the working nature of the tipper semi trailer, we must not blindly reduce weight.
Aluminum alloy wheels are currently the most popular weight-reducing artifacts. While ensuring strength, it can also reduce the weight by half compared to ordinary steel wheels, and the effect is very impressive.
It is only because of the current rise in the price of raw materials that aluminum alloy wheels have risen sharply and the purchase cost is relatively high, but compared to the benefits brought by long-term operation, this price increase is actually acceptable.
Semi Tipper Trailer For Sale
In addition to using a high-strength material body structure, the application of aluminum alloy accessories is also a good choice. For example, the use of aluminum alloy for the tool box and outriggers can reduce considerable weight, and the corrosion resistance of aluminum alloy is stronger. After two or three years of use, the toolbox will be rusted and damaged, and the life will be longer.
As for the lower frequency of use of the dump truck trailer for the outrigger, the aluminum alloy outrigger is sufficient for occasional use.
Dump trailer is a vehicle used to transport construction materials such as sand, clay, and plate materials. The dumping rate is relatively high. The difference from other buckets is that there is a hydraulic press lifting organization, which consists of a retarder, a car fuel tank, Valves, pipes, hydraulic cylinders and other hydraulic components. The following is about the maintenance of the dump Trailer
1. Maintenance of the hydraulic system; the maintenance of the hydraulic system mainly starts with gear oil. Gear oil is divided into 32# and 46#. In winter, 32# gear oil with low viscosity is usually filled, and 46# in summer. For gear oils with high viscosity, it is forbidden to mutually use different types of gear oils or to be filled with gear oils that do not meet the requirements.
2. The impurities in the hydraulic oil filter element should be kept before changing the oil. Keep the oil clean at all times and replace them regularly. If there are impurities in the operation of the hydraulic transmission system, they will enter the valves and hydraulic cylinders along with the pipelines, causing valve jamming or damage to the hydraulic pressure. The seal in the cylinder affects the use of the lifting system.
3. The seals in the hydraulic transmission system should be checked for damage and aging before the winter, and need to be replaced in time and checked regularly.
4. Check the hydraulic pipelines and observe whether there is any loose oil leakage at the joints. If so, find out the cause and deal with it in time. In addition, observe whether the rubber tubing is cracked and replace it in time.
5. Dump trailer fuel tank surface and fuel filler port to prevent impurities from entering the tank.
6. Check whether the retarder is working normally and whether there is a hidden danger in the biting of the link gear.
7. On the surface of the hydraulic cylinder, check the piston rod surface for scratches or bruises. If necessary, replace it in time, otherwise, the gear oil will leak out and affect the lifting process.

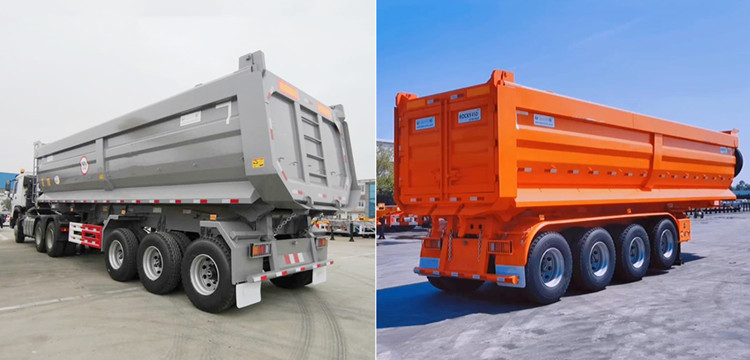

Dump Trailer for Sale
Tipper Semi Trailer are also called dump trucks, dumper trailer, side tipper, tip trailer, scrap dump trailer.
In civil engineering, it often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The dump trailer carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader. The semi truck trailer tipper carriage is inclined at a certain angle, so that the cargo in the carriage is unloaded. The power of the dump truck trailer engine is used to complete the dumping mechanism.

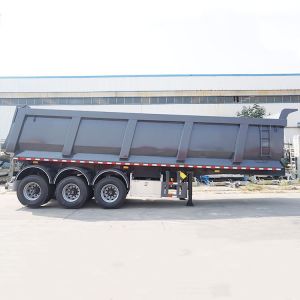

3 axle tipper trailer for sale
There are four types of tipper semi trailer: rear tipping semi trailers, side dump semi trailer, skeleton dump trailer, and flatbed type tipping trailer.
What are the tonnages of hydraulic dump trailer?
The tilt chassis trailer manufacturer’s hydraulic dump trailer can be customized, semi dump trailer capacity from 15 tons to 80 tons, 80 tons to 120 tons, 120 tons-180 tons of different tonnage according to the different cargoes.
The volume of the tipper semi trailer can be customized according to the needs of the customers. The common volumes are 30 cubic meters, 32 cubic meters, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on. Such as 15m and 20m3 tipper trailer for sale.
To prevent the tipper semi trailer paint from being corroded by seawater, we spray a layer of wax on the surface of the dump trailer before shipping, and then seal it with a waterproof rain cloth.

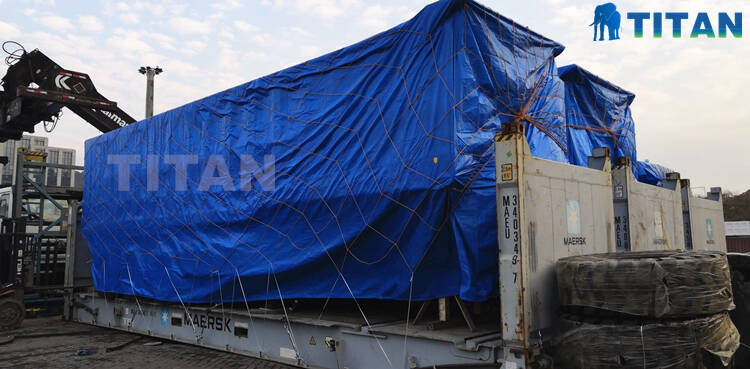

grain tippers for sale ready for shipment

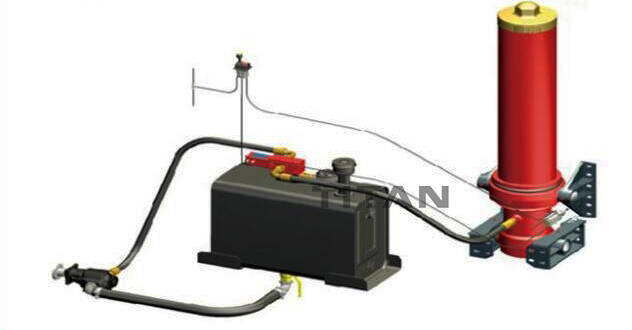

The rear tipping semi-trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train. The rear dump trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.
The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.
The lift valve sends high pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the end dump trailer hydraulic oil cylinder.
(1) Titan lifting 20/28ft adjustable custom container chassis trailer hydraulic system lifting operation sequence: Open the tarpaulin or box lid on the trailer——Open the rear door lock——Press the clutch with the transmission in neutral and wait 5 seconds——Hanging low gear (below 4 gears)——Place the handle of the air control valve in the raised position——The dump trailer starts to lift after releasing the clutch, The engine throttle can be properly depressed but it must be controlled within 1500 rpm-when the cylinder reaches the maximum stroke or the limit valve is activated, the air control valve handle is in the stop position.
(2) Rear tipping trailer descending operation sequence: Step on the clutch and wait 5 seconds——Adjust PTO——Adjust transmission gear——Release the clutch——Turn the handle of the air control valve slowly from the stop position to the down position——When you fully lower the car body, wait for 30 seconds and put the handle of the air control valve in the stop position.
(1) The hydraulic tank of the Titan chassis tipper for sale auction is a special lifting cylinder. Don’t use the cylinder as a stable support for the dump trailer body.
(2) Do not leave the cylinder exposed to the air for more than 2 hours (more than 30 minutes in humid air) in a lifted state, otherwise it will cause oxidation and rust of the cylinder;
(3) It is forbidden to disassemble and adjust the relief valve on the lift valve, otherwise the hydraulic system will lose its safety protection function and cause an accident.
(4) When the chassis tipper for sale load cargo, we should ensure that the front and back and left and right loading are uniform. If you have too much cargo in front, it can overload the hydraulic system.Too much cargo is loaded behind the 20&40 feet Container Tipper Semi Trailer, which will cause the semi end dump trailers for sale to tip over when unloading, and the left and right partial load will easily cause the cylinder to tip over.
(5) When unloading, please make sure that the ground around the light weight tip trailer is solid and flat, keep the triple axle dump trailer stable, and ensure that the main dump truck and the Scrap Tipper Trailer are in a straight line;
(6) During the semi tipper for sale lifting operation, the operator cannot leave the operating position, and no one can stand or walk in the vicinity of the work area;
(7) During the side dump semi trailer lifting operation, the operator must pay attention to the influence of lateral wind, because the long body of the dump semi-trailer will cause the dumper trailer to roll over under the effect of lateral wind;
(8) Don’t make the height of the cargo exceed the back door. Be sure to open the rear door locking device before lifting and unloading, otherwise the cargo will be crowded at the rear of the tractor tipping trailer and the vehicle will tip over when unloading;
(9) When unloading at temperatures below 0 degrees, it is important to pay attention to whether the cargo frozen, otherwise the rear dump semi trailer will roll over due to imbalance between left and right when unloading;
(10) Do not move the dump tipper while the dump trailer is in the lifted state, and don’t use the emergency braking method to unload sticky goods, otherwise it will cause the tractor tipping trailer to roll over or damage the oil tank;
(11) If the container tipper trailer lifting angle of the box reaches about 25 degrees, and the cargo in the box has not been unloaded, please stop lifting and check the cause of stickiness;
(12) If the anticipation that a rollover may occur during lifting, be sure to stop lifting and drop the tipper semi trailer slowly;
(13) Wait for about 30 seconds after the schmitt dump semi trailer body completely lower. Make sure to keep the handle of the air control valve in the stop position. Do not start the heavy duty dump trailer in the lowered position. Do not drive the dump trailers in the lowered position. Otherwise, all the tipper semi trailer hydraulic oil in the hydraulic cylinder will flow back into the hydraulic tank, causing cavitation and Fuel injection problem.

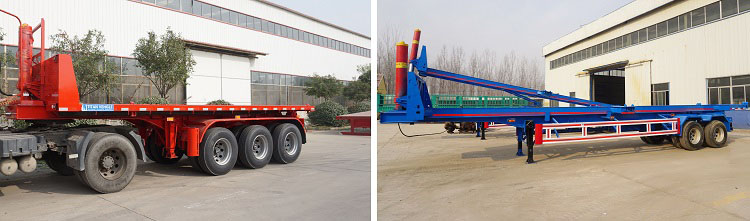

20&40 feet Container Tipper Semi Traile
(1) The new hydraulic dump trailer prices should be slowly raised during the running-in period. In principle, we should control the engine speed at about 1000 rpm, and it should not exceed 1500 rpm after the running-in period;
(2) Due to the existence of impurities such as iron filings in hydraulic system during the running-in of the semi dump trailers, when the side tipper trailer is lifted about 300 times, we should replace hydraulic oil and clean the hydraulic oil box in time;
(3) The high pressure oil pipe must be replaced every two years. In daily maintenance, if you find that the hose is leaking, damaged or partially swollen or cracked, you should replace it in time;
(4) Check the hydraulic oil for discoloration or deterioration every week. If there is any discoloration or deterioration, replace the hydraulic oil in time. Change the tractor tipper trailers for sale oil according to different regions and seasons. Generally, it is more appropriate to change the oil in April and October. When you find that the fuel is insufficient, you should add it in time.
(5) The upper and lower brackets of the oil cylinder need to be filled with grease (butter) in time. It is recommended that the oil cylinder be filled with grease once every 120 times or 15 days. After a long period of non-use, you need to refill the grease once again;
(6) Check the oil return filter element and air filter element inside the dump semi trailer hydraulic oil tank for debris clogged and cleaned every half month, and replace the hydraulic oil tank return filter element and air filter element every six months.

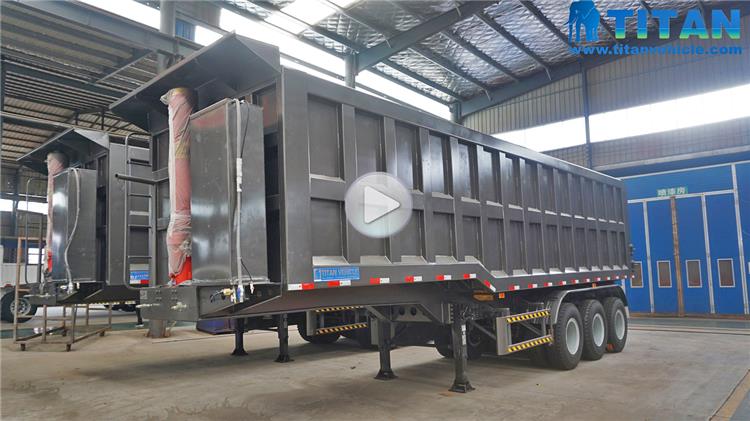

tri axle end dump trailers for sale details video
Usually in the use of dump trailer for semi truck, there are many small problems that are easy to overlook, which become hidden dangers during driving. They are very noteworthy. The following are some typical usage specifications and precautions during exercise and lifting and unloading. I suggest friends When using it, check carefully and comply with the following requirements.
1. Before unloading, make sure that there are no people on both sides and rear of the dump truck and trailer for sale, and check whether the dump truck trailer for sale lifting limit device is intact.
2. After the semi dump trailers for sale lifting operation is completed, before driving, be sure to turn off the semi dump trailers power take-off switch to separate the power take-off from the gearbox and stop the oil pump; then put the manual operation valve at the mid-stop position to avoid automatic lifting during driving Danger.
3. The tipper trailer for sale can only be driven after the carriage is reset to the upper wing surface of the sub-frame. Because the semi dump trailers for sale carriage is in the lifted state, it is very likely to cause malfunctions and accidents.
4. The goods in the semi dump trailers for sale carriage are evenly distributed, and do not exercise or dump with serious partial load.

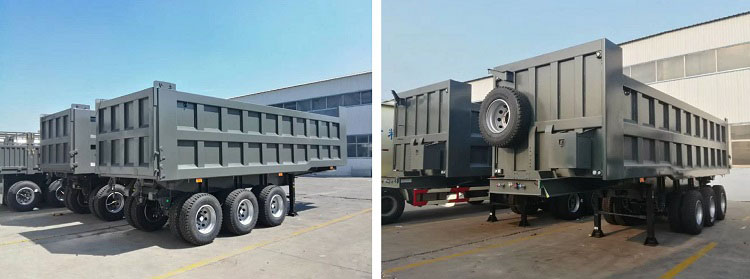

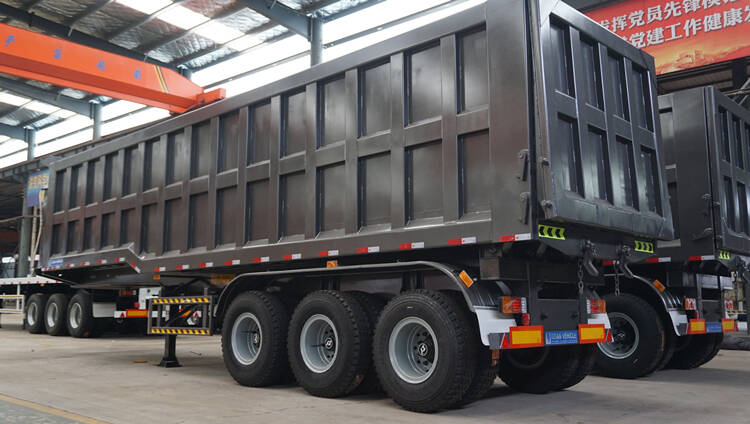

3 axle dump trailer for sale
5. To make the gear pump work, step on the clutch pedal first, and then turn on the tip trailer power take-off switch to avoid impact when the power take-off gear is engaged.
6. When the semi tipper trailers for sale is lifted, the engine speed should be controlled within 2000r/min, especially after the new tipper trailers for sale is lifted to 40°, do not increase the throttle to avoid damage to the limit valve and other parts.
7. When the carriage is lifted, there should be no facilities or people within 5 meters around it, and the operator should not leave the grain tippers for sale cab.
8. When the tipper trailer for sale near me is running, the chassis power take-off must stop, and the manual operation valve must be in the chassis tipper for sale mid-stop position. It is strictly forbidden to operate the manual operation valve to the lifting and lowering positions.

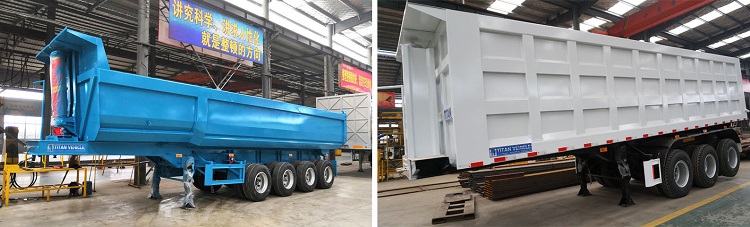

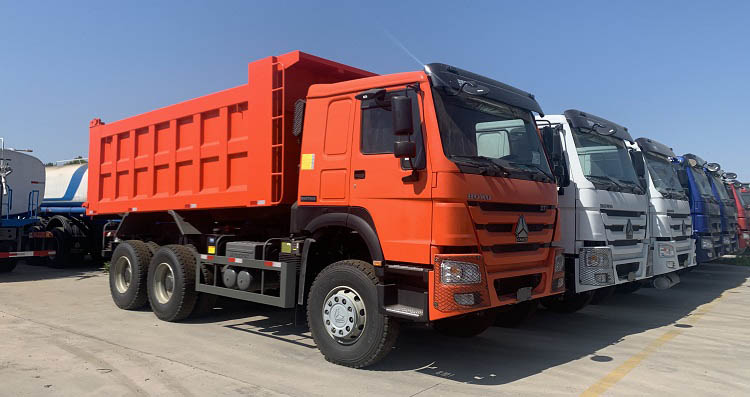

dump truck trailer for sale
Usually, a semi tipper for sale can carry 15-100 tons, different models carry different weights. As semi trailer tipper professional manufacturer, hydraulic semi trailer end dump truck can be customized from 15 ton to 120 tons semi end dump trailers of different tonnage according to the different cargoes. Different types of semi dump trailers for your choice: semi end dump trailers, side tippers for sale, container dump trailer.
The volume of the U type tipper semi trailer can be customized according to the needs of the customers. The common volumes are 30 cubic meters, 32 cubic meters, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters grain tippers for sale and so on.
Whether it is a small agricultural tipper trailer for sale near me or a mining semi trailer tipper weighing hundreds of tons, you can see the hydraulic cylinder. And only need to touch the button lightly, no matter how heavy the object is, it can be easily lifted up, as if it will always have endless strength, it is the hydraulic lifting mechanism. " For tipper trailer for sale near me, the lifting mechanism can greatly improve the transportation efficiency of the chassis tipper for sale.

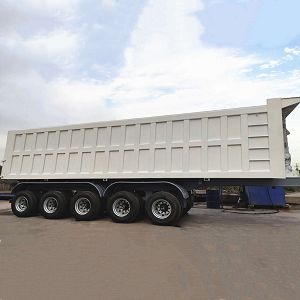

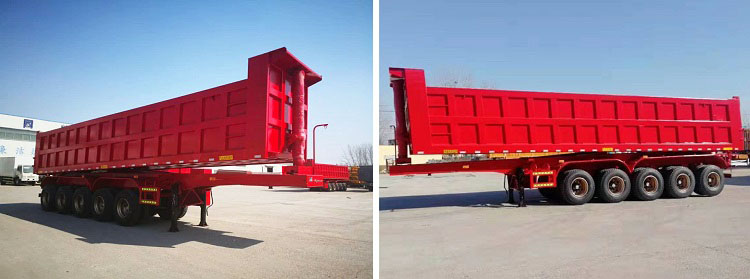

5 axle dump truck trailer for sale
Due to the incompressible nature of liquid, it is often used in various hydraulic transmission systems. For the hydraulic lift used in 20&40 feet Container Tipper Semi Trailer, it usually consists of 5 parts, namely the cylinder and the cylinder head, Piston and piston rod, sealing device, buffer device, and exhaust device. And its working principle is also very simple, basically equivalent to an enlarged version of the jack.
Chassis tipper for sale use Hyva hydraulic cylinders, which are widely used for high load and long life. Hyva hydraulic cylinders are multi-section cylinders and are installed at the front end of the carriage. Compared with the cylinders in the center-mounted lifting mechanism, they require less lifting force. If the 3 axle dump trailer for sale load is 40 tons, the front-top multi-section cylinder only needs about 20 tons of force to lift, while the oil cylinder of the center-mounted lifting mechanism requires more than 60 tons of force to lift.
Because the required lifting force is small, the pressure requirements on oil pumps, valves, pipelines, etc. are also lower. At the same time, the force on the cylinder support shaft, the carriage, and the frame is also small, so that the entire lifting system and mechanism can be improved. The service life can be extended. This is also the biggest advantage of Hyva hydraulic cylinders.
In fact, the importance of hydraulic lifting mechanism is self-evident for both mining semi end dump trailers for sale and traditional urban muck dump trailer for semi truck. Especially now that the automobile industry has developed for more than a century, the power system of new tipper trailers for sale has also changed from traditional diesel, natural gas and other fossil fuels to pure electric power, but the only lifting mechanism used is still hydraulic transmission, all thanks to The hydraulic cylinder has a simple structure, reliable performance, and a very good operation. At the same time, this is also the main reason why hydraulic cylinders shine in the field of 3 axle dump trailer for sale.

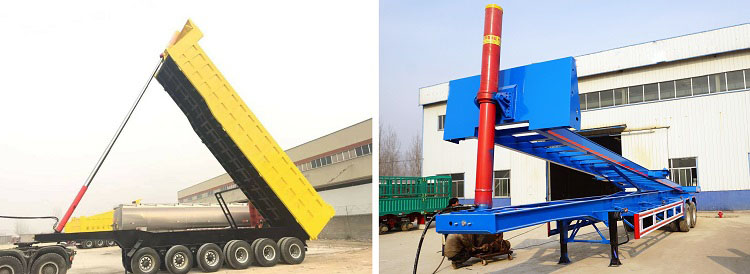

6 axle dump truck trailer for sale hydraulic lifting
As a tractor trailer tipper manufacturer, finding the best dump trailer for semi truck for your business needs is an important decision. According to your needs and budget, we will provide you with different models, hoping to find the most suitable semi trailer tipper for customers. At the same time, in order to assess the total cost of owning and operating a dump truck, some additional costs that need to be considered are fuel, insurance, tires, and inspection costs.
We are a manufacturer that exports new tipper trailers for sale, and many customers ask us about second-hand drop side tipper. However, regardless of whether you choose to buy a second-hand or new tipper trailer for sale, remember that the second-hand dump trailer prices are between US$3,000 and US$4,000, and sometimes even as high as US$10,000 in the best condition. On the other hand, the price of a new chassis tipper for sale is usually over US$10,000-20,000. the price of a dump truck is USD 30000-50000, Depends on customer customization needs.
Highway standard hydraulic tipper trailer
Heavy-duty side tippers for sale usually have a fixed route and the characteristics of heavy load, so high horsepower and load-bearing capacity are the main considerations when choosing a rear dump semi trailer. Heavy-duty dump trucks generally have a relatively large curb weight, while the models are mainly 8X4.

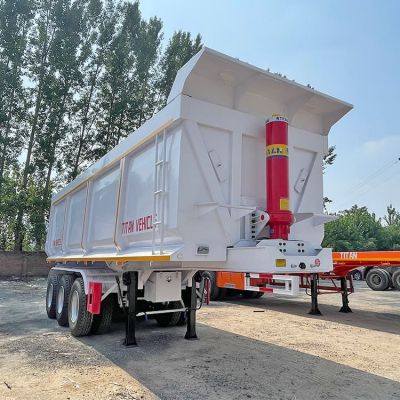

Heavy duty dump trailers for mine
In addition to the tipper trailer for sale that normally runs on the highway and occasionally goes down the foundation pit, there is also a high-horsepower heavy-duty dump truck that is fixed in the mine.
This model is mainly used in mines and will not drive on the road during the entire life cycle. Semi dump trailer capacity often need to bear more than 100 tons, and the road conditions are poor, and the economic speed of the vehicle is usually between 50-70.
dump truck and trailer for sale
In addition to the semi trailer end dump truck configuration mentioned above, there are also general-purpose dump trucks with relatively compromised configurations, which can be used in almost every field, but they are not the most suitable.
The general-purpose engineering dump truck can meet the needs of non-urban earthwork and general mining vehicles. When used as a road transport vehicle, the loading capacity and self-weight are not dominant, but various working conditions can be involved, and it is suitable for applications that are not fixed. Card friends.
Generally speaking, before you buy a grain tippers for sale, you must clarify your needs and the environment in which you use the car. After all, dump trucks are not like other models and have strong counterparts. If the wrong configuration is selected, it will not only be difficult to use later, but also Various problems may occur.
