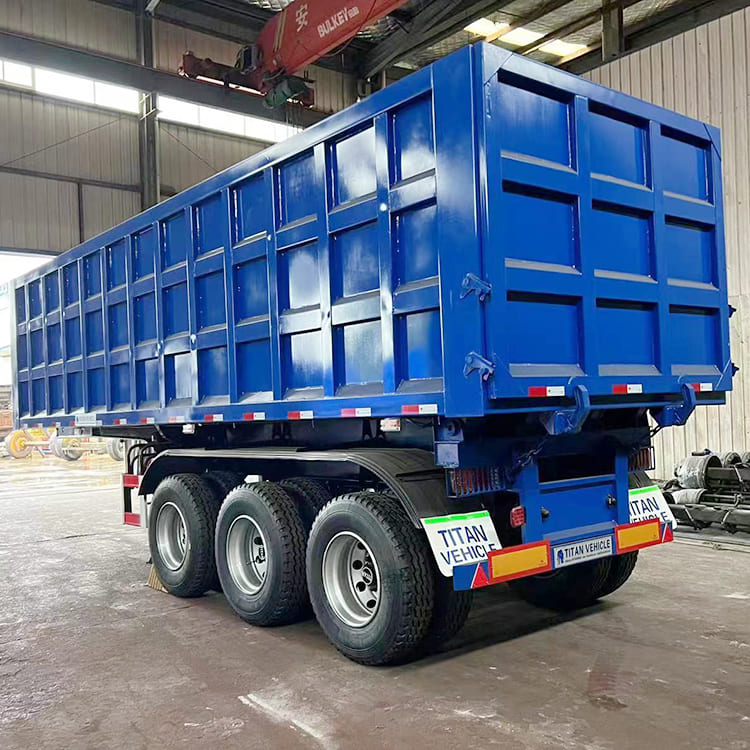

33CBM Tractor Tipper Trailer
33CBM Tractor Tipper Trailer

33CBM Tractor Tipper Trailer

17500 USD

33cbm tractor tipper trailer is a cargo vehicle of a open type, which is a cargo trailer with a tipping platform for unloading (equipped with a hydraulic lift), which is designed to solve cargo transport tasks on public highways.

SKU: 33CBM Tractor Tipper Trailer
GTIN: 06975766113056
MPN: TITAN6804106
Brand: TITAN VEHICLE

33CBM Tractor Tipper Trailer:

TITAN 33cbm tractor tipper trailer is used for transportation of bulk cargo, building materials, coal. Depending on the features and characteristics of the cargo to be transported, the body of tractor tipper trailer is made of high strength steel. Tractor tipping trailer have rear loading / unloading, however, there are designs that provide for multilateral loading / unloading.

This Tractor Tipper Trailer can be 2 axle, 3 axle, 4 axle, 5axles, the volume of the trailer is also optional.

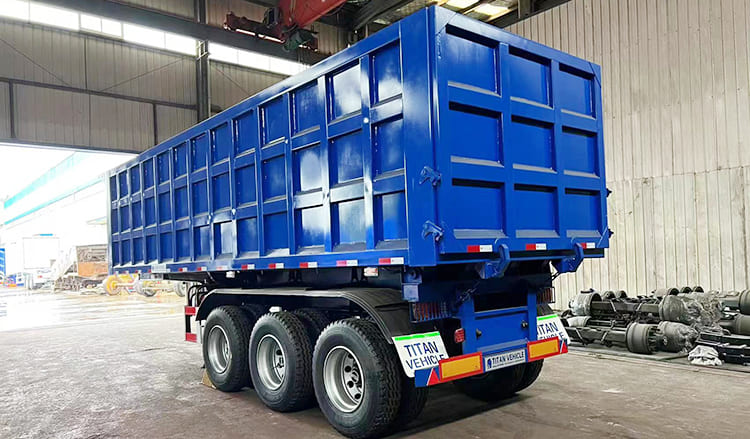

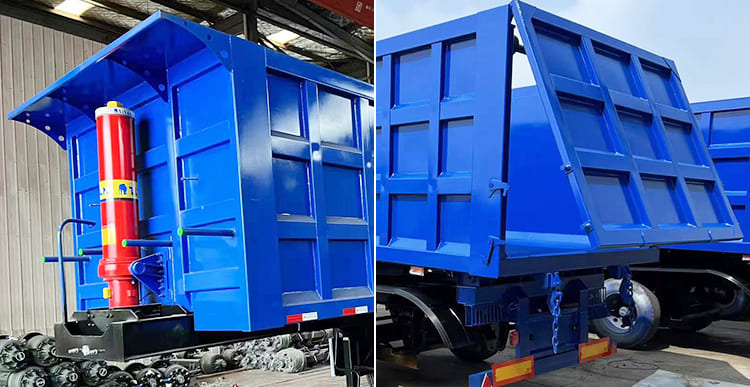

33cbm tractor tipper trailer

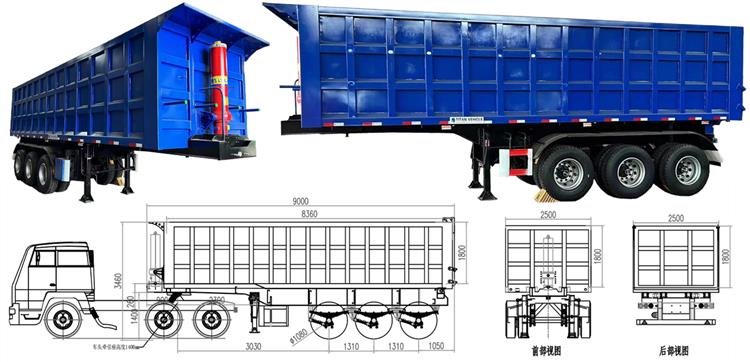

Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper

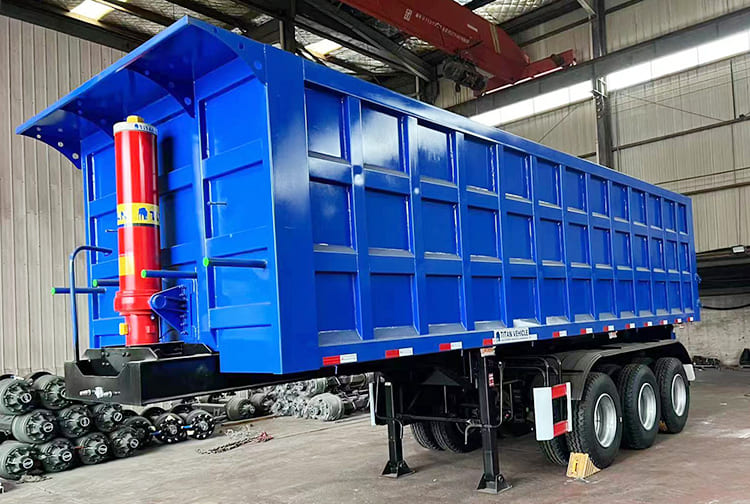

33cbm tractor tipper trailer

Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper

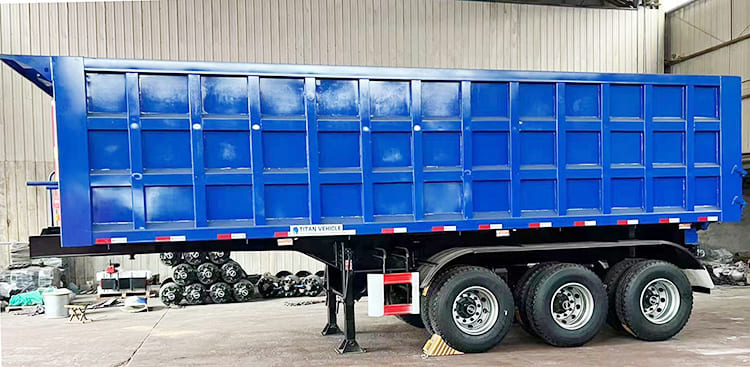

33cbm tractor tipper trailer

Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper

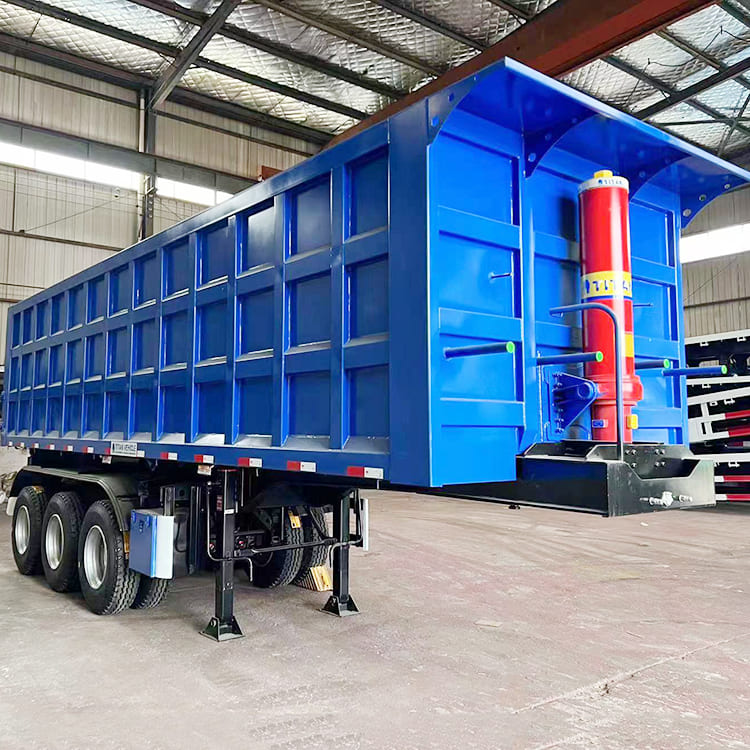

33cbm tractor tipper trailer

Tractor Tipper Trailer for Sale | Tractor Tipping Trailer for Sale | Tractor Trailer Tipper



Specifications of tractor trailer tipper:

Dimension: 8000mm * 2500mm *1600mm ( inside dimension )

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm

Total volume(m³): 33 CBM

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand





Advantages of the TITAN  tractor tipper trailer:

1. Double-plate main beam. TITAN is using the double-plate main beam for tipper tractor trailer; the main beam is designed with double plates, which have stronger carrying capacity; it is not easy to damage;

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. Steel material. TITAN is using the HG60 high-strength steel, which can effectively prevent collision and avoid deformation of the cargo box of the tipper tractor trailer.

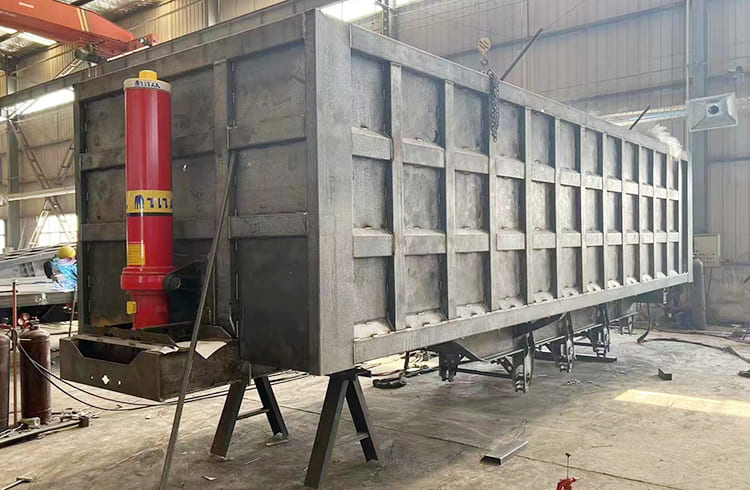

33cbm tractor tipper trailer

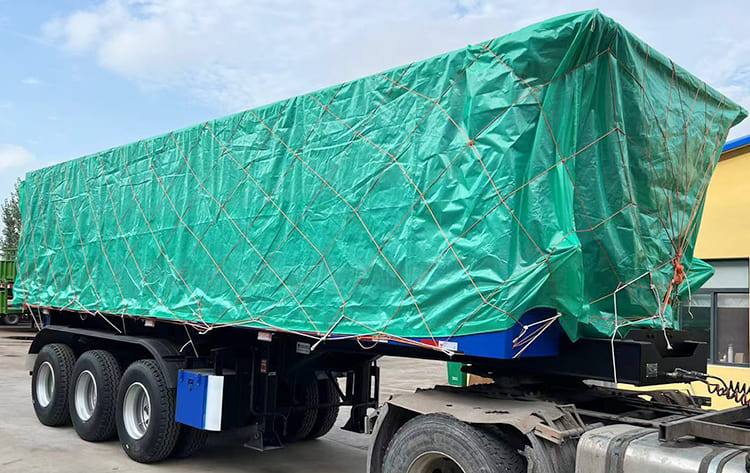

Package of the tractor trailer tipper:

33cbm tractor tipper trailer





Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

semi tipper trailer



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
