The subjective structure of flat bed semi trailer for sale near me in Tanzania is mostly straight beam style. Mainly used in logistics systems supporting ships, ports, routes, highways, bridges, and multimodal transport. The flat bed semi trailer is a very commonly used trailer tool during transportation.
Can be used to transport 2 20ft and 1 40ft containers
In transportation, flat bed semi trailers are more widely used because of their great flexibility and economy.
Advantages of 40 ft flat bed semi trailer for sale near me in Tanzania
40 Ft flat bed trailers for sale near me in Tanzania are versatile. It is not only used for container transportation but can also be used for other functions. This way, you can use it for whatever you want since the slab is easily customizable.
1. Large transport capacity, 40 ft flat bed trailers for sale near me in Tanzania can transport multiple containers at the same time, which can meet the needs of large-scale cargo transportation;
2. Convenient and fast, the 40 ft flat bed semi trailer for sale near me in Tanzania can directly pull the container from the port or cargo yard to the destination without transshipment in the middle, saving time and labor costs;
3. Safe and reliable, the solid structure and stable performance of the 40 ft flat bed semi trailer for sale near me in Tanzania can ensure the safety and stability of the cargo;
4. Flexible and changeable, free combination according to the needs of goods, 40 ft flat bed semi trailer for sale near me in Tanzania can provide customers with flexible transportation solutions;
5. Improve efficiency, have the characteristics of rapid loading and unloading, and quickly complete loading and unloading through mechanical equipment. The 40 ft flat bed semi trailer for sale near me in Tanzania improves transportation efficiency;
6. Energy saving and environmental protection. Compared with other modes of transportation, 40 ft flat bed semi trailer for sale near me in Tanzania can reduce fuel consumption and environmental pollution, and have lower energy consumption and emissions.

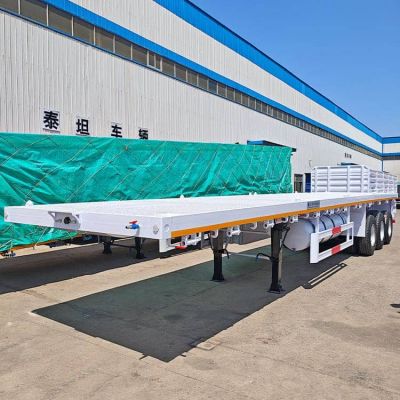

40 ft flat bed semi trailer for sale near me in Tanzania

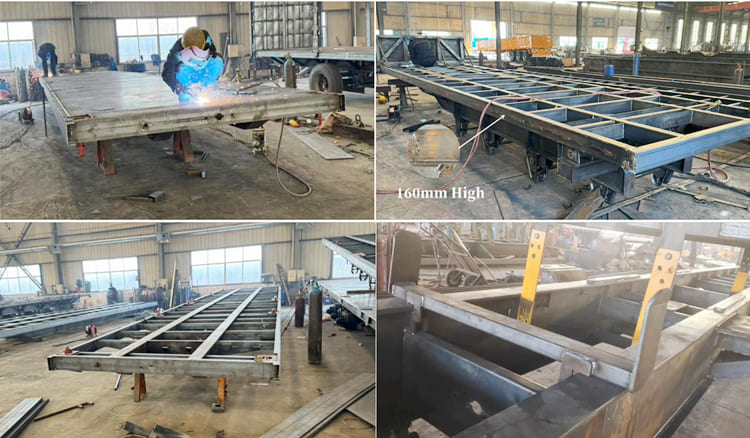

The main beam of TITAN 40 ft flat bed semi trailer for sale near me in Tanzania is made of Q345 low-carbon high-strength steel. All cross beams are supported by inclined brackets with a distance of no more than 500mm to ensure that the 40 ft flat bed semi trailer is not easily deformed during transportation. The bottom plate uses a 3mm pattern plate for transporting heavy objects, which not only ensures the load capacity but also improves the safety of the transportation process. At the same time, the wheels, legs, and braking systems all use world-renowned accessories with reliable quality.

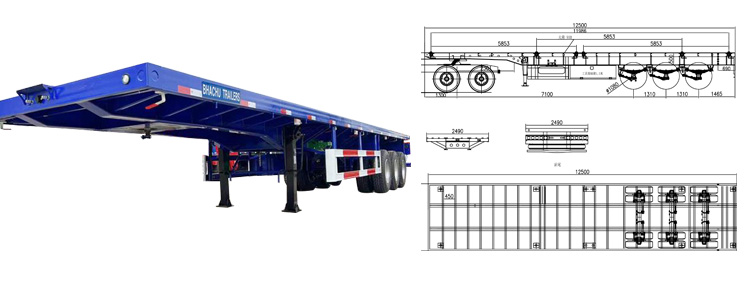

Container trailer
One challenge of 40 ft flat bed semi trailer for sale near me in Tanzania with using containers in shipping is that containers come in different sizes. Therefore, some containers require specialized vehicles for transportation due to their size. So people needed a semi trailer that could carry high-weight containers without loading and unloading problems, which prompted the emergence of container trailer. The subjective structure of the container trailer is a straight beam or a small gooseneck style on the front neck.
This type of trailer is simple yet sturdy and will serve you well even in rough terrain. Gooseneck models lower the center of gravity, improving trailer stability. Essentially, they are safer to use in terms of stability.
This container trailer for sale in Tanzania is adjustable to suit your required loading and unloading maneuvers. The axis spacing can also be adjusted as needed.
The main advantages of a container trailer; it is a cheap and affordable construction; the structure is lightweight and strong; it uses less material but can carry heavier cargo;
A defining feature of a container chassis (skeleton) trailer is that it can transport containers of different sizes, such as 45-foot, 40-foot and 20-foot long containers.
Since the frame truck has no floor, once the goods are loaded, all the weight is borne by the girder, which is easily damaged. Therefore, the load-bearing capacity of the girder is an important factor in choosing a container trailer.
Choose the right semi trailer
Your choice among these types of trailers will first depend on your preference based on the type of work that needs to be done. Typically, the selection is usually based on the following:
weight capacity requirements
All of these semi trailers can carry considerable weight. However, when considering weight, a 2-axle/3-axle flat bed semi trailer for sale in Tanzania helps a lot. Its structure is mainly to provide a chassis that can help you carry high-weight containers. Best of all, it can be adjusted to suit your desired maneuverability, loading, unloading and axle spacing conditions.
Number of axles
Depending on the amount of cargo to be transported, the number of axles per flat bed semi trailer may be considered. They can be 2-axles or 3-axles. Don't expect a container with more than three axles, as the maximum weight of a container is 30 tons. For example, a 40 ft flat bed semi trailer structure can support multiple axle assemblies at different locations along the length of the trailer.
application
If you are using a trailer to transport not only containers but also other goods, it is better to choose the flat bed semi trailer type.
The most common flatbed trucks on the market are 40 feet or 40 ft long and can be used to transport two 20-foot containers.

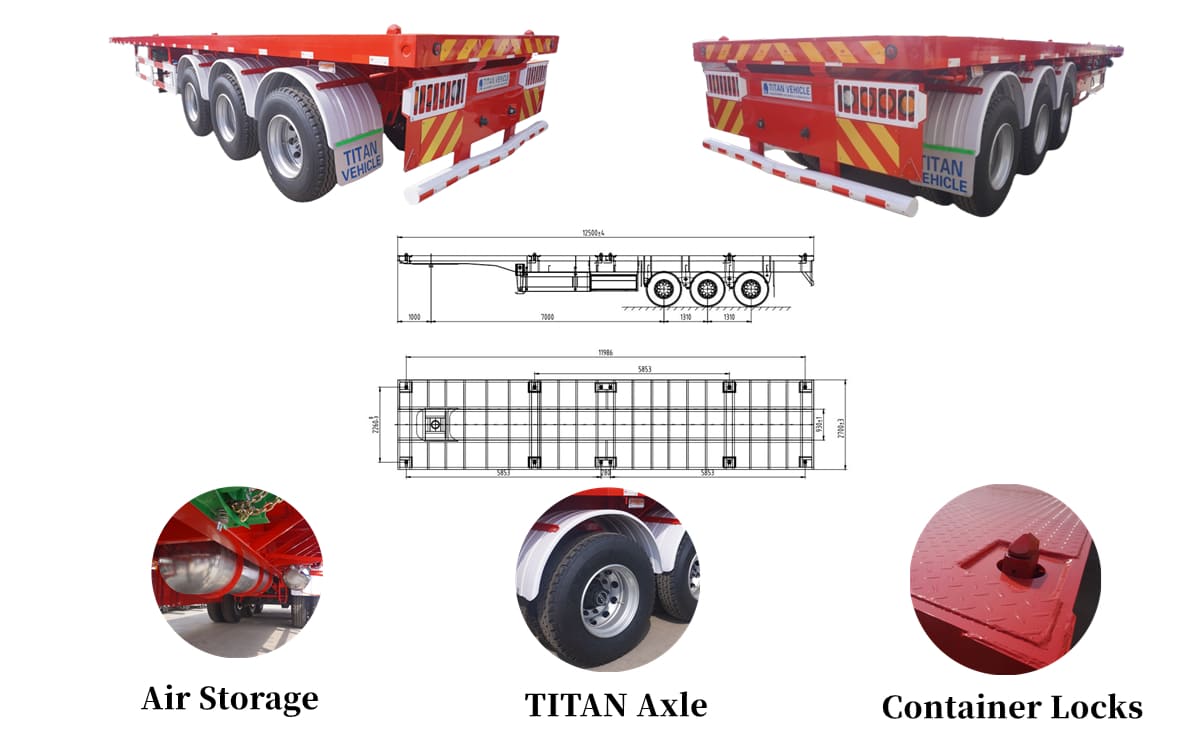

TITAN 40 ft flat bed semi trailer for sale near me in Tanzania is equipped with 12 sets of container locks. Used to lock the trailer chassis to the container body. This consists of a handle, a wall device having a defined strike groove, a sleeve fixed to the handle and extending through the strike groove, a locking gusset mounted on the sleeve and formed in two accessible A locking angle slot is embedded in a separate position of rotation, a shaft extension usually carried with the sleeve at one end and again extending into the container cavity at the other end, a slip joint connecting the sleeve to the shaft extension, and a safety A locking plate having an elongated shape extends through the shaft extension.

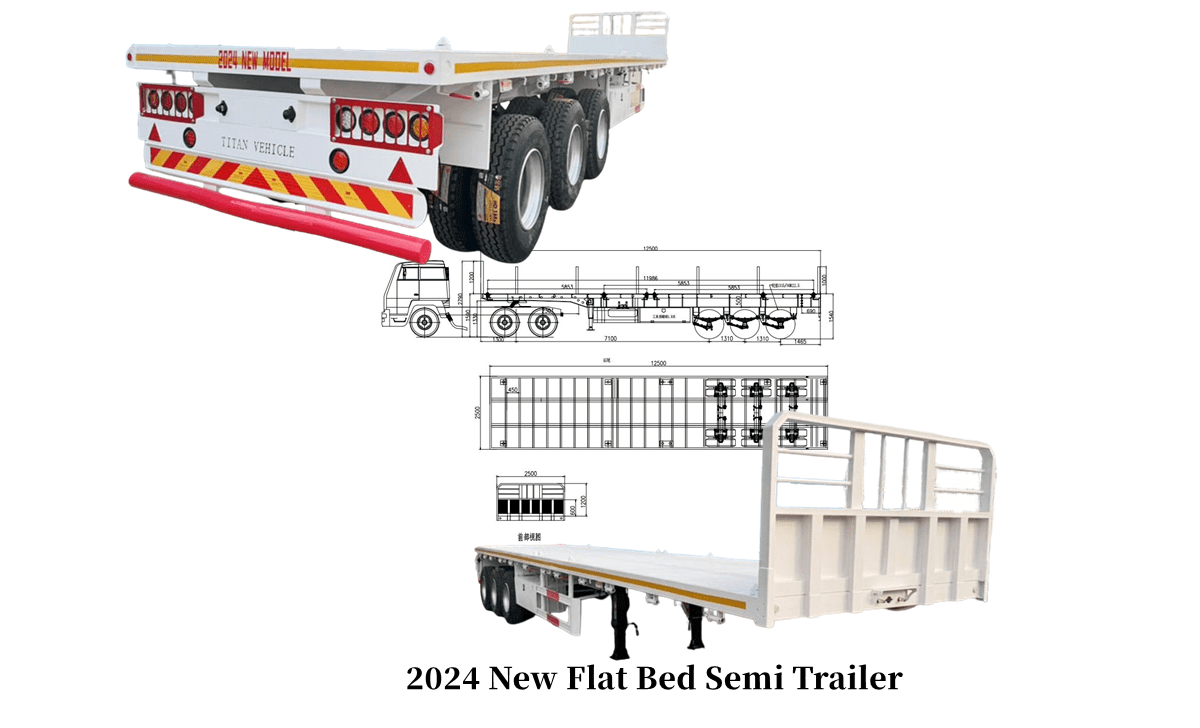

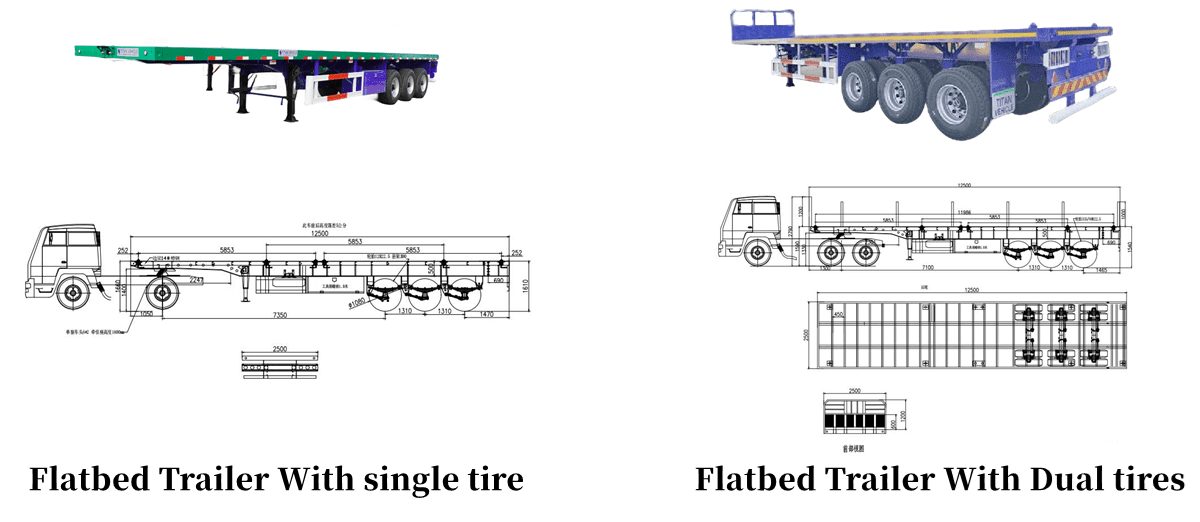

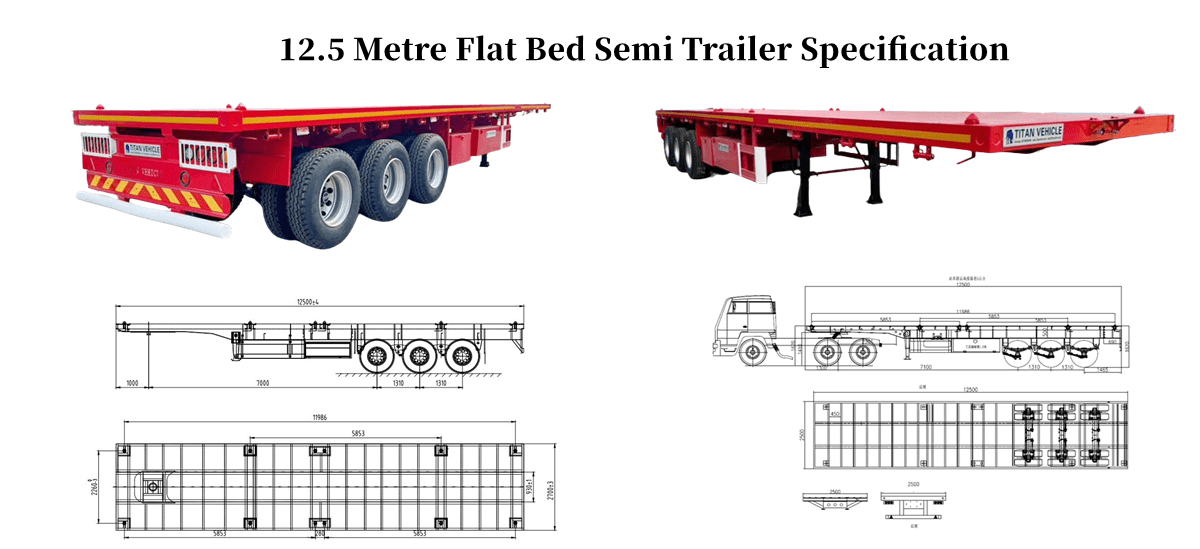

Specifications of 40 ft flat bed semi trailer for sale near me
Transport: 20ft, 40ft container
Overall dimension: 12500mm * 2500mm *1410mm
Axles: 3 axles, TITAN
Tire: 12 units
Suspension: Heavy duty mechanical suspension
Landing gear: JOST
Brake system: WABCO
Rim: 9.00-22.5 or 9.75-22.5
TITAN 40 ft flat bed trailers for sale near me in Tanzania is connected using the traction pin on the tractor. The following is the connection process.
1. In order to connect the traction pin and the traction seat smoothly, the 40 ft flat bed trailers for sale near me in Tanzania should be in the air-cut state first.
2. Lift the outriggers so that the traction pin seat plate of the 40 ft flat bed trailers for sale near me in Tanzania is approximately 10-13 mm lower than the center of the traction seat of the tractor. Otherwise, sometimes it will not only fail to connect, but also damage the traction seat, traction pin and related parts.
3. Pull the unlocking lever of the traction seat on the tractor and open the traction locking mechanism.
4. Reverse the tractor vehicle backward, so that the 40 ft flat bed trailers for sale near me in Tanzania traction pin is introduced into the locking mechanism opening through the V-shaped opening of the traction seat, and the locking block is pushed to rotate and lock the traction pin.
When reversing, the center lines of the tractor and the 40 ft flat bed trailers for sale near me in Tanzania must be consistent. Generally, the deviation of the two center lines is limited to less than 40mm. The angle between the two center lines is limited to 5° when fully loaded and 7° when empty.
5. Connect the gas line (connect the tractor's gas supply pipeline to the 40 ft flat bed trailers for sale near me in Tanzania's gas supply pipeline, and the tractor's control pipeline connector to the semi-trailer's control pipeline connector). Turn on the semi-trailer connection and separation switch on the tractor. , so that the trailer can obtain sufficient air pressure.
6. Connect the circuit and insert the tractor's wire connection plug into the 40 ft flat bed trailers for sale near me in Tanzania's wire socket.
7. Operate the lifting legs correctly to retract them, then pull down the crank handle and hang it on the hook.
Performance test
In line with the attitude of being responsible to customers, TITAN 40 ft flat bed trailers for sale near me in Tanzania will conduct anti-expansion tests, rain tests, axle load and braking force tests before it is launched on the market.
Axle load and braking force testing is to detect whether the load of each tire is balanced when the 40 ft flat bed trailers for sale near me in Tanzania is driving, and whether the braking distance and balance requirements can be met when braking.
When shipping, we will seal the 40 ft flat bed trailers for sale near me in Tanzania with wax and cover it with a raincoat to prevent the vehicle from rusting and ensure its new performance.
loading container
Before loading a container into a 40 ft flat bed trailers for sale near me in Tanzania, the twist lock head should be turned to a position that completely overlaps the lock base and fixed, then the container is correctly placed on the 40 ft flat bed trailers, and then the twist lock handle is turned. Make the lock head and lock seat vertical to lock the container.
Before unloading the container, turn the twist lock to the position where the lock head overlaps the lock seat and secure it. Make sure that the container is not locked before unloading.
Precautions when driving
1. Prevent long-term use of the 40 ft flat bed trailers for sale near me in Tanzania's braking system to prevent the emergency relay valve from automatically braking the wheels due to too low air pressure in the braking system. The brakes automatically lock.
2. When driving on long or steep slopes, to prevent the brake drum from overheating, the tractor's engine braking device should be used as much as possible for braking.
3. Pay attention to the height limit signs on the road to avoid collision with devices on the road.
Tire inspection and maintenance
1. The appropriate tire pressure greatly affects the service life and safety of the tire, so the specified tire pressure should be maintained including the spare tire.
2. Depending on the load, road surface and braking conditions, tire wear will also be different. In order to make the tire wear consistent, the tire assembly position should be exchanged regularly (every 5,000 kilometers).
3. Check the tightness of the wheel nuts every day. If they are found to be loose, tighten them to a tightening torque of 450~500N.m.
