The tri axle semi tipper for sale cargo box reduces its own weight through structural optimization. On the premise of ensuring the strength of the tri axle semi tipper for sale body, the thickness of the plate is reduced by about 20%
The tri axle semi tipper for sale is using The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

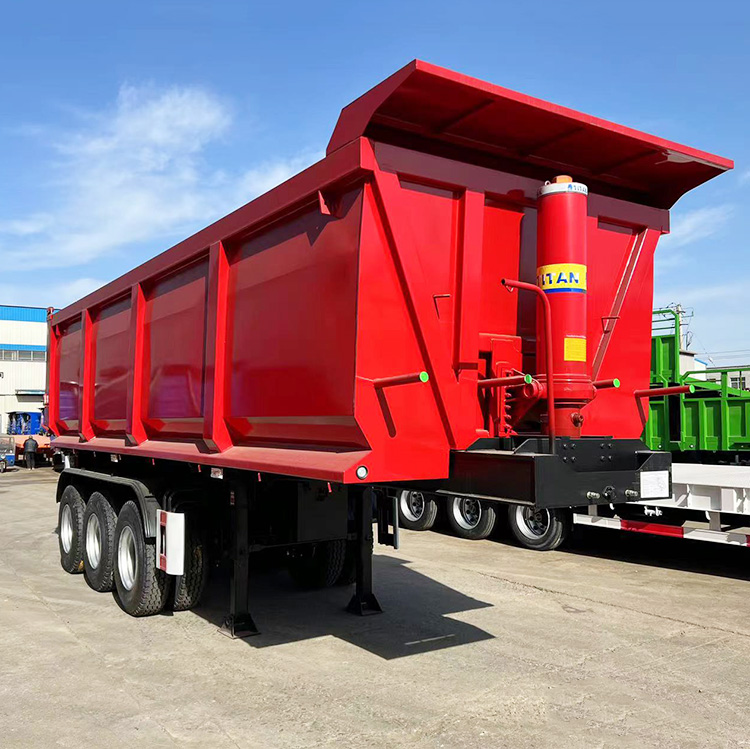

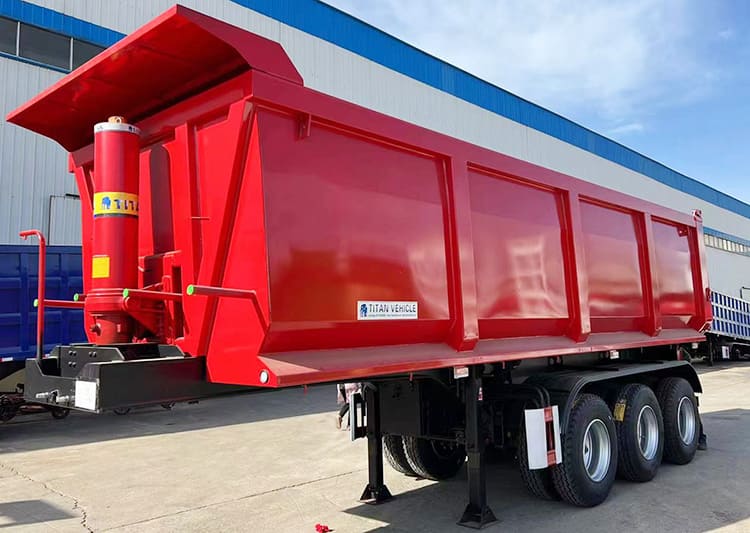

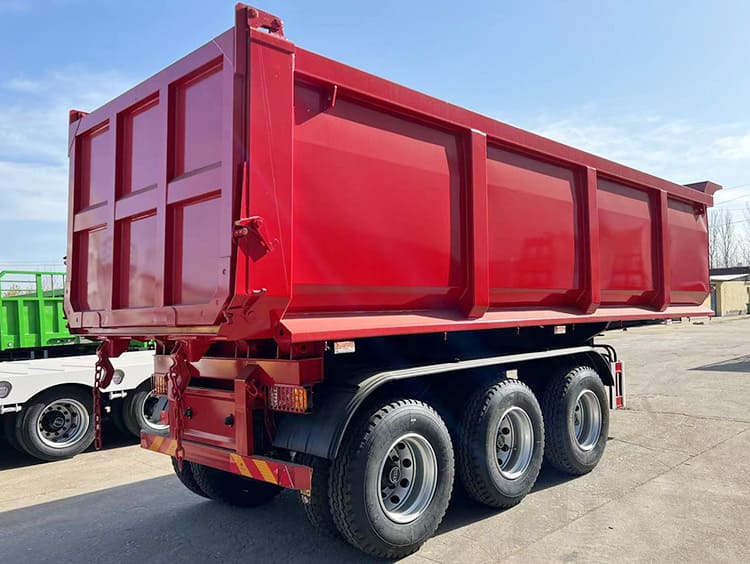

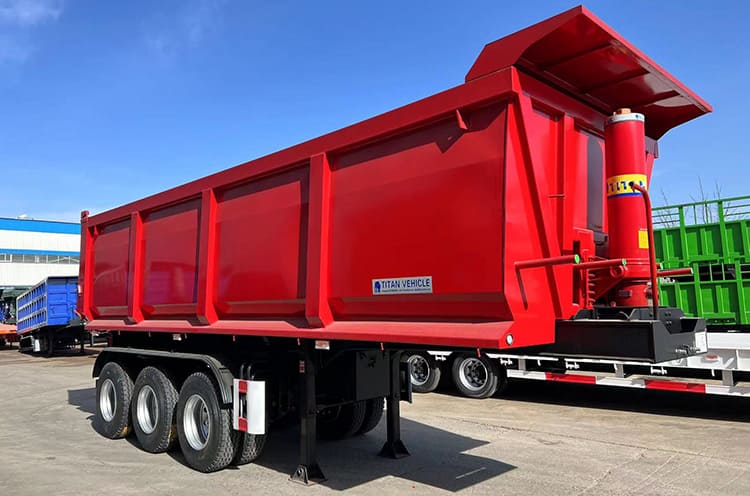

Tri Axle Semi Tipper for Sale | Hydraulic Tipper Price in Tanzania
Tri Axle Semi Tipper for Sale | Hydraulic Tipper Price in Tanzania
Tri Axle Semi Tipper for Sale | Hydraulic Tipper Price in Tanzania
Tri Axle Semi Tipper for Sale | Hydraulic Tipper Price in Tanzania
Dimension: 8500mm * 2500mm *3300mm ( inside dimension )
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm
Total volume(m³): 35 CBM
Side wall thickness: 4 - 6mm
End plate: 8mm

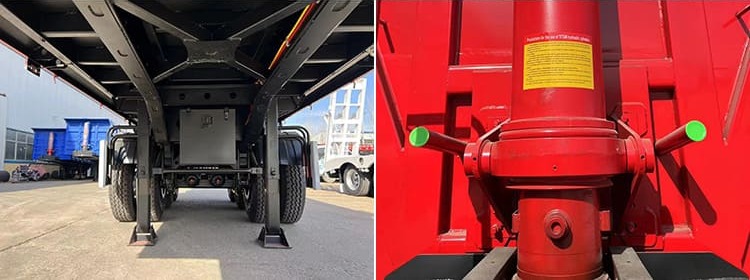

Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

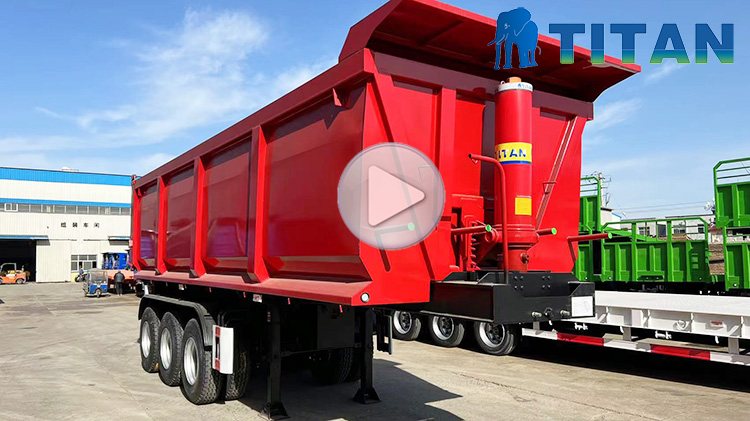

Video of Tri Axle Semi Tipper for Sale
