TITAN u shape rear dump trailer price is widely used in transport sand, rocks, bauxite, grave, etc construction materials.
The chassis build with a thick high strength steel plate to ensure durability. For customers who described rough road conditions, we also designed not only strong rear dump trailer but also accurate calculations of the angle of the lift cylinders.
U Shape Rear Dump Trailer Price | Dump Trailer Near Me
U Shape Rear Dump Trailer Price | Dump Trailer Near Me
U Shape Rear Dump Trailer Price | Dump Trailer Near Me
Dimension: 9300mm * 2500mm *1600mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume: 35cbm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

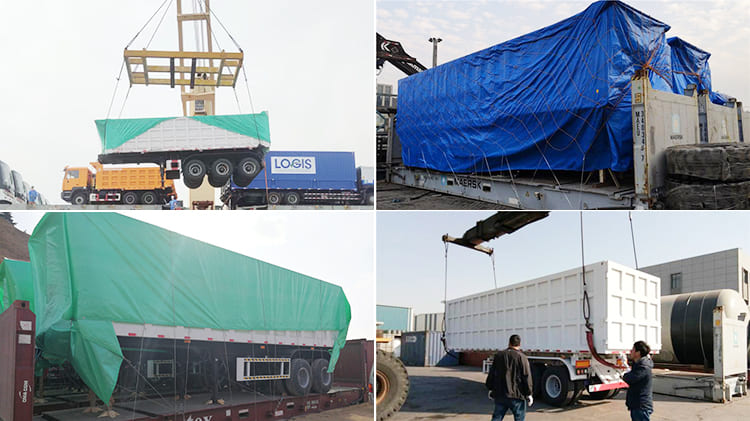

Below is a picture of the packaged dump trailer. TITAN uses bulk or containerized transportation to package goods. After the customer chooses the method of bulk cargo transportation, TITAN will spray waterproof wax on the surface of the semi-trailer to protect the semi-trailer and prevent the semi-trailer from rusting after being soaked in rainwater during transportation. At the same time, TITAN will also wrap the semi-trailer. Rain cloth, which can not only prevent the car body from being soaked by rain, but also prevent the semi-trailer from being scratched during transportation.
Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.
