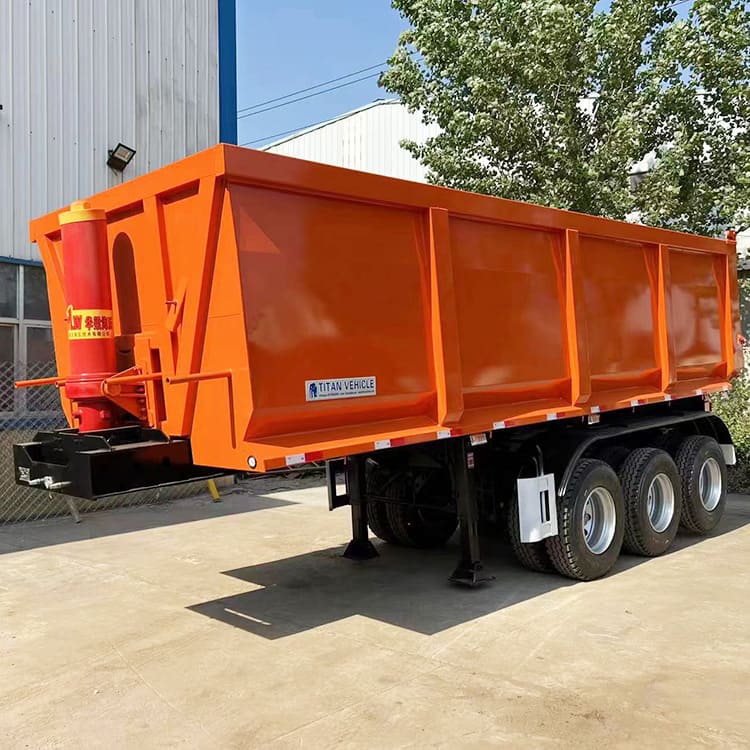

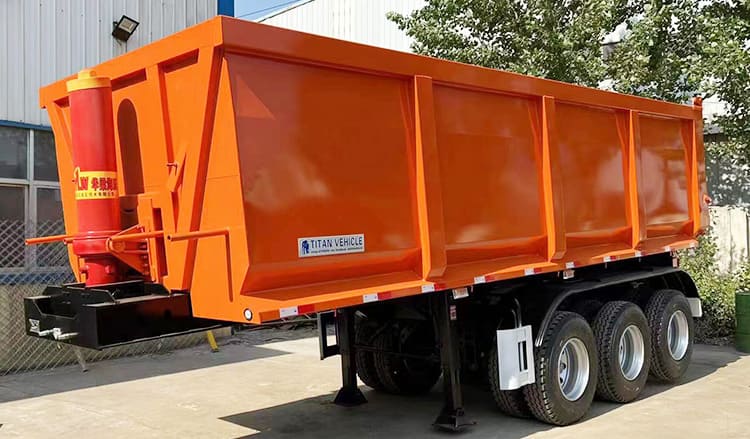

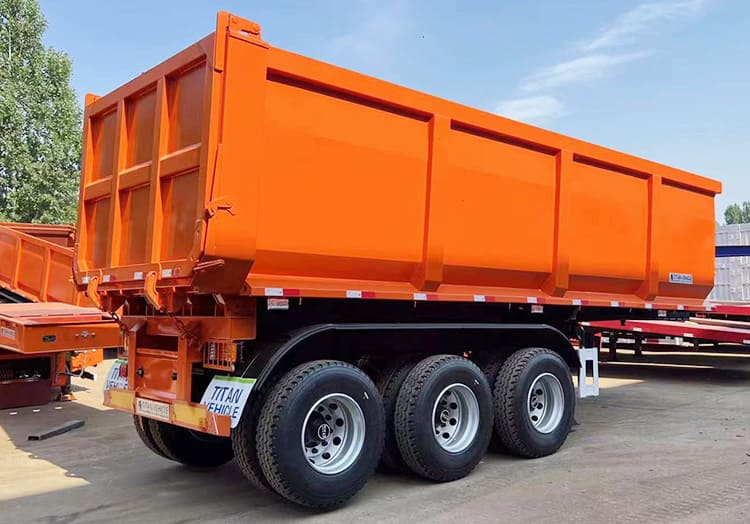

The tri axle semi tipper trailer is mainly designed for the transportation of coal, ore, and construction materials, which can effectively improve the efficiency of loading, unloading and transportation. The design of the frame is reasonable, the craftsmanship is good, the box body of the tri axle semi tipper trailer is made of high-strength steel plate, the height of the box body can be customed.
TITAN tri axle semi tipper trailer has large loading space, it also equipped with self-rescue cylinder, which is more convenient for loading and unloading goods.
What is the Price of Tipper in Nigeria | Tri Axle Semi Tipper Trailer for Sale
What is the Price of Tipper in Nigeria | Tri Axle Semi Tipper Trailer for Sale
Dimension: 8000mm * 2500mm *1600mm ( inside dimension )
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm
Total volume(m³): 33 CBM
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

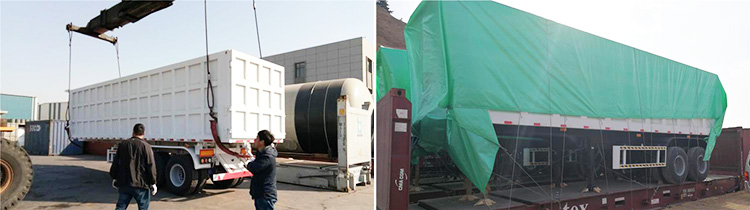

TITAN uses a professional waterproof rain cloth to wrap the entire semi tipper trailers. Before using the waterproof rain cloth, TITAN will also spray a layer of waterproof wax on the surface of the semi tipper trailer, which can effectively prevent the tipper trailer from rusting during transportation.
Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.
