5 Axles Dumper Trailers

18500 USD

Price Reference Only.

Dumper Trailers often works in conjunction with excavators, loaders, belt conveyors and other construction machinery in civil engineering.

Product Description:

TITAN dump trailers adopt high strength steel to make it durable when load the sand or small stones or rocks. TITAN Tippers equipped with reliable hydraulic HYVA cylinder.

And the loading capacity are 40t, 60t, 80t. We have 2,3,4,5,6 Axles models for you to choose from.

We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers.

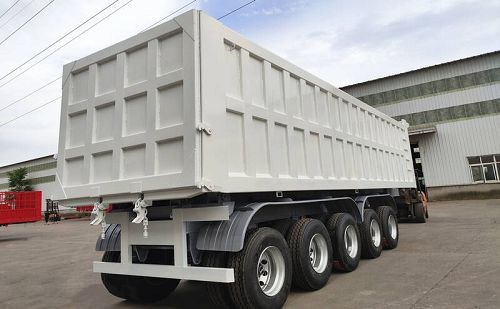

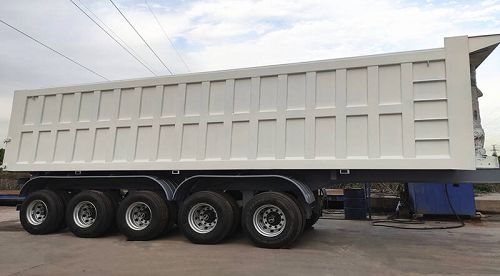

tipper trailer

tipper trailer



Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.



Specification:

Overall dimension:11000mm * 2500mm *4000mm

Volume :  35CBM

Axles:5 axles

Suspension:Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire:20 units

King pin:90#

Landing gear:JOST

Brake system: WABCO

Electrical system: 24V, LED lights



Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.





Please click " TITAN Tipper Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
