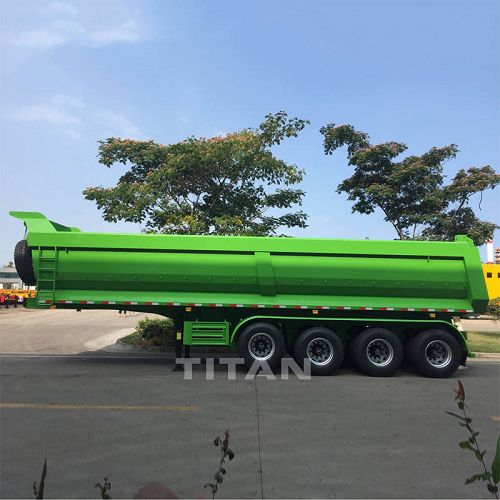

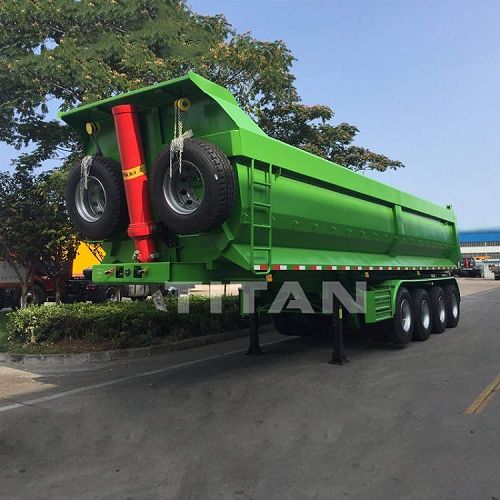

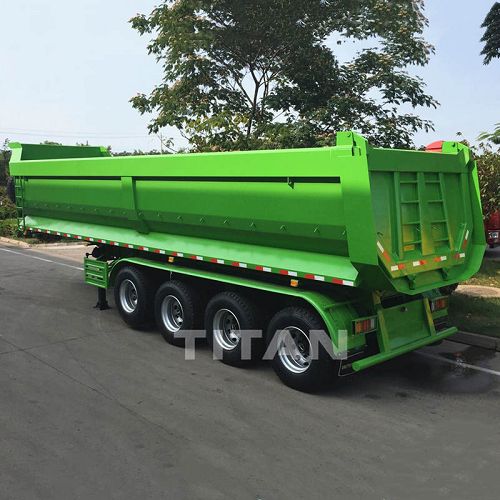

4 Axle Tractor Tipping Trailer

18200 USD

Price Reference Only.

TITAN Tractor Tipping Trailer adopts high-strength steel to make it durable when loading sand or small stones or rocks.

SKU: Tractor Tipping Trailer
GTIN: 06975766111304
MPN: TITAN6804006

Product Description:

TITAN dump trailers adopt high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.

TITAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

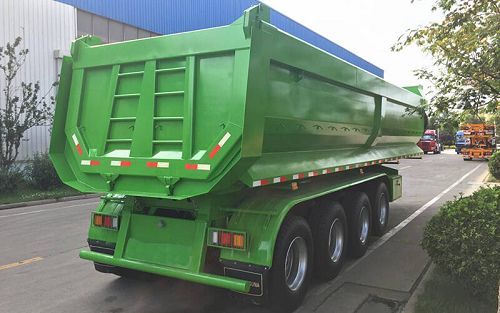

tipper trailer

Tipper semi trailer for sale

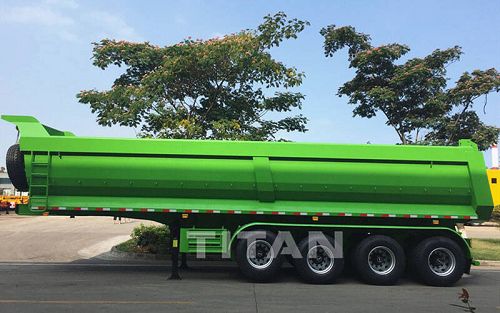

tipper trailer

4 axles heavy duty dump trailers

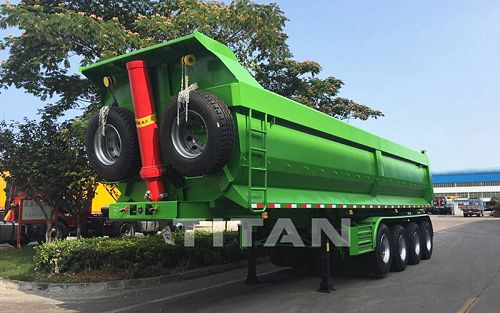

tipper trailer



1. Double-plate main beam for heavy-duty dump trailer, which has stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.



Overall dimension:9300mm * 2500mm *3700mm

Volume :  33CBM

Axles:4 axles

Suspension:Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire:16 units

King pin:90#

Landing gear:JOST

Brake system: WABCO

Electrical system: 24V, LED lights


Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click " TITAN Tipper Semi Trailer" to get detailed videos!


Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!



Mr. Mike Sadler from Malawi - 2021-12-02T18:12:53+0800
We finally received the 4 axle tractor tipping trailer and now trailers are working well. We are ready to place a new order with TITAN.
