TITAN 100 ton semi trailer tipper 's leaf spring is widened and thickened, the shock absorption effect is good, the suspension is widened, and the center pin is wider, which makes the vehicle more stable during driving.
The heavy-duty cylinder of the semi trailer tipper with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
Semi Trailer Tipper | Tipper Trailer Price | Tipper Semi Trailer
Semi Trailer Tipper | Tipper Trailer Price | Tipper Semi Trailer
Semi Trailer Tipper | Tipper Trailer Price | Tipper Semi Trailer
Overall dimension：9300mm * 2500mm *3700mm
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm
Total volume(m³): 100 Ton
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

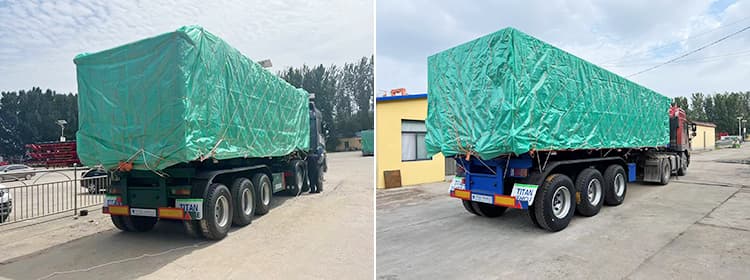

Below is a picture of the packaged tipper semi trailers. TITAN uses bulk or containerized transportation to package goods. After the customer chooses the method of bulk cargo transportation, TITAN will spray waterproof wax on the surface of the semi-trailer to protect the semi-trailer and prevent the semi-trailer from rusting after being soaked in rainwater during transportation. At the same time, TITAN will also wrap the semi-trailer. Rain cloth, which can not only prevent the car body from being soaked by rain, but also prevent the semi-trailer from being scratched during transportation.
Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.
