The side tipper trailer for sale provides an effective solution for hauling bulk materials and is commonly used across a range of industrial sectors. Its design maintains a stable center of gravity during transportation, greatly improving the side tipper trailer overall stability and reducing the chance of rollovers. During unloading, materials are evenly tipped out along the side, preventing accumulation in a single spot.

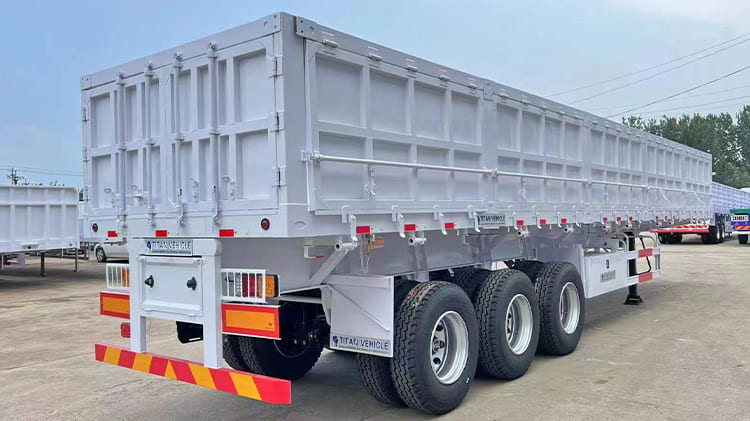

34 Ton Side Tipper Trailer for Sale in Freetown Sierra Leone
34 Ton Side Tipper Trailer for Sale in Freetown Sierra Leone

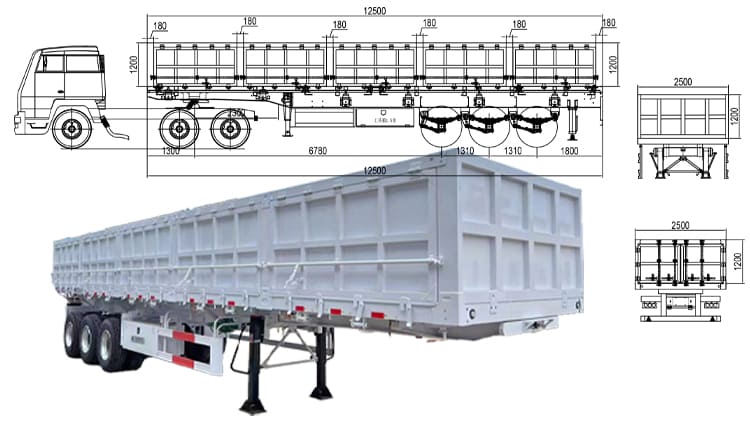

Dimension: 12500mmx2500mmx1200mm
Side Wall: 1200mm high
Axle: 3 axles, TITAN brand
Tire: 12units
Suspension: mechanical suspension
Spring leaf: 10 layers
Kingpin: 2.0/3.5 inch
Landing gear: 28 ton, JOST
Lamp: LED lamp with anti theft net
Click to leave a message for consultation and can get free spare tire!

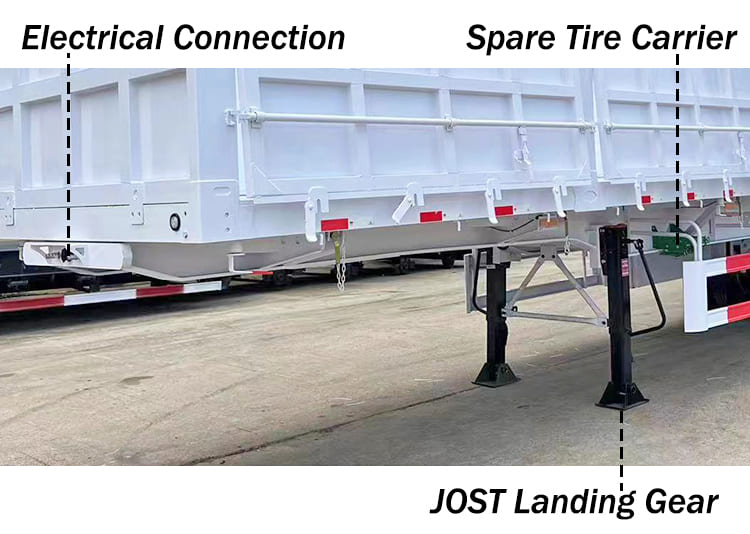

As one of the key load-bearing components of the 34 ton side tipper, the landing gear system is particularly sophisticated in design. The model uses JOST brand landing gears with a maximum load capacity of up to 28 tons, which can meet the loading and unloading needs of various heavy goods.
The landing gear structure is reasonably designed and the operation process is simple. Sierra Leone user can quickly master the use method without complex training. The bottom of the landing gear adopts a wide base structure helps to evenly disperse the force and prevent sinking on soft ground, further ensuring the safety and balance of the 34 ton side tipper for sale during operation.

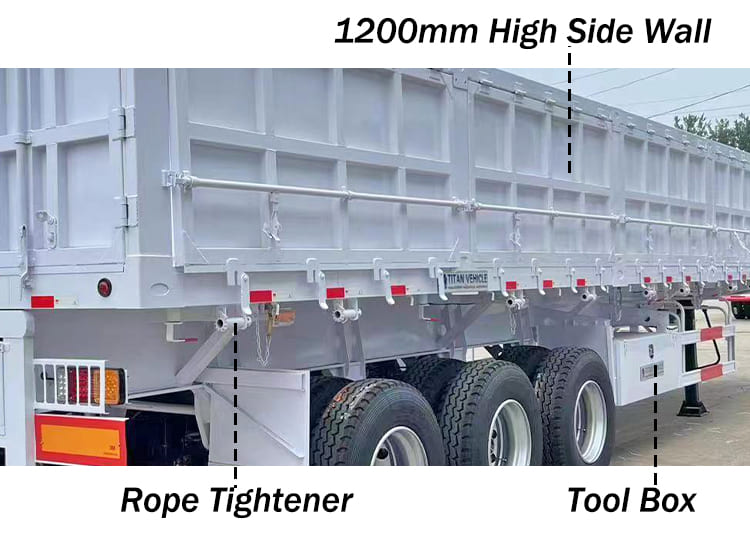

In order to strengthen the fixation and protection during transportation, simple rope tighteners are installed on the 34 ton side tipper trailer for sale. The main function of the rope tightener is to stabilize the equipment on the side tipper trailer for sale body to prevent from shifting or sliding during sharp turns or emergency braking.
The device is simple to operate and can quickly complete the equipment fixation and release process, significantly improving the efficiency of loading and unloading and transportation. As an important auxiliary facility to ensure transportation safety, the 34 ton side tipper rope tightener can effectively reduce the damage and risks caused by shaking or instability of equipment during transportation, and provide stronger support for long-distance transportation.

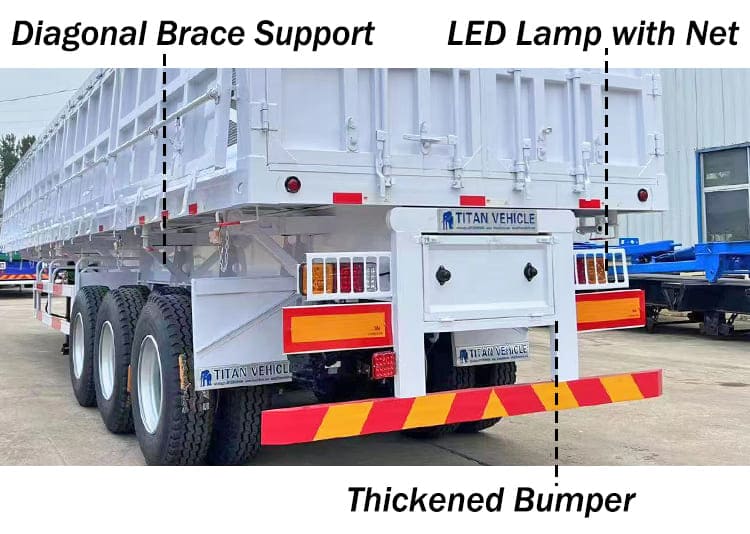

In terms of lighting and safety configuration, the 34 ton side tipper trailer for sale is specially equipped with high-brightness reflective strips. Even when driving at night or in weather conditions with poor visibility, the reflective strips can clearly reflect external light, remind surrounding side tipper and pedestrians, and enhance the visibility and traffic safety of the entire 34 ton side tipper on the road.
The entire side tipper trailer lamps uniformly use LED light sources, which have sufficient brightness and low energy consumption, effectively reducing the burden on the power system and helping users reduce energy consumption and operating costs during long-term use.
The 34 ton side tipper for sale suspension system has also been strengthened, using a reinforced mechanical suspension structure to improve its stability and carrying capacity on rugged roads and under heavy loads. The suspension part adopts a leaf spring design, which can effectively absorb the vibration and impact from potholes, reduce the impact to cargo.
The entire suspension system uses high-strength steel, which has good high temperature and impact resistance can maintain reliable operation even in areas with poor road conditions in Sierra Leone.
In addition, the suspension system is equipped with a 70mm center balance pin, which plays a key role in support and buffering. The front and rear connection parts are also reinforced to enhance the overall structure's compressive resistance. The series of optimized designs effectively alleviates the impact pressure on the tires during driving, further improving the stability and driving comfort of the side tipper during transportation.
In terms of tires, the 34 ton side tipper trailer for sale uses tires, which have good load-bearing performance and can be customized according to customer needs. TITAN Company conducts research on the actual use of different markets to ensure that each side tipper trailer for sale can maintain stability and safety when facing different road conditions. The targeted design not only improves the adaptability of driving, but also extends the service life of the 34 ton side tipper for sale, meeting the user's comprehensive needs for reliability and practicality.
To guarantee safe delivery, side tipper trailer are first coated with a layer of protective wax, then wrapped in a waterproof cover. The dual-layer protection helps shield the side tipper trailer from moisture, effectively preventing rust and corrosion that can result from temperature and humidity fluctuations during maritime shipping.
