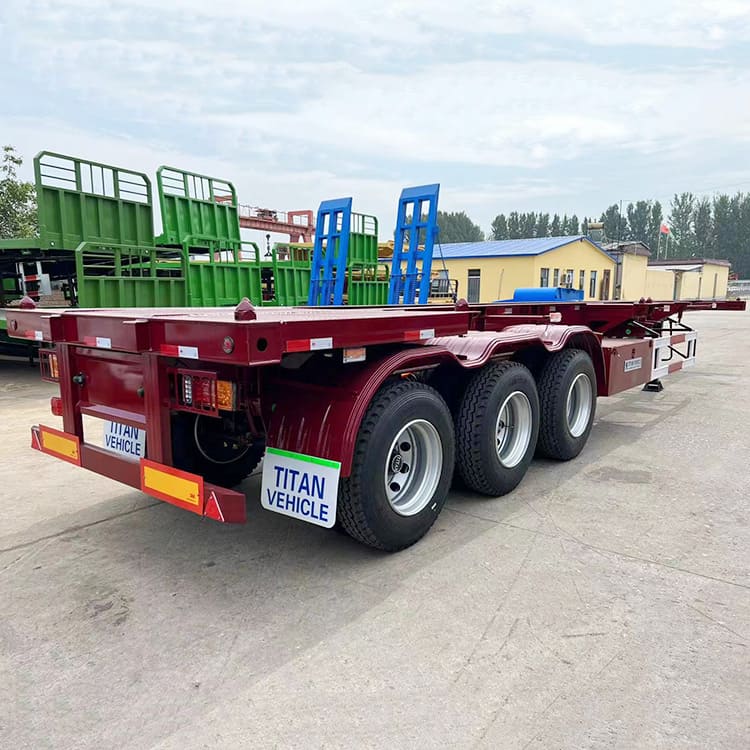

40 /20Ft Skel Trailers for Sale

40 / 20Ft Skel Trailers for Sale

According to the length, the 40 /20ft skel trailers for sale can be 20ft, 40ft, and 45ft. The 40 /20ft skel trailers for sale can be used to transport standard containers of different sizes.

You can choose to install air suspension or spring suspension in the skel trailers for sale , the shock absorption effect of air suspension is better, which has strong anti-bump ability, not easy to deform

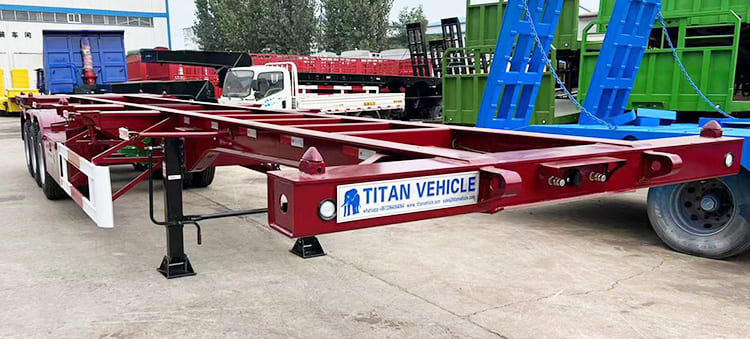

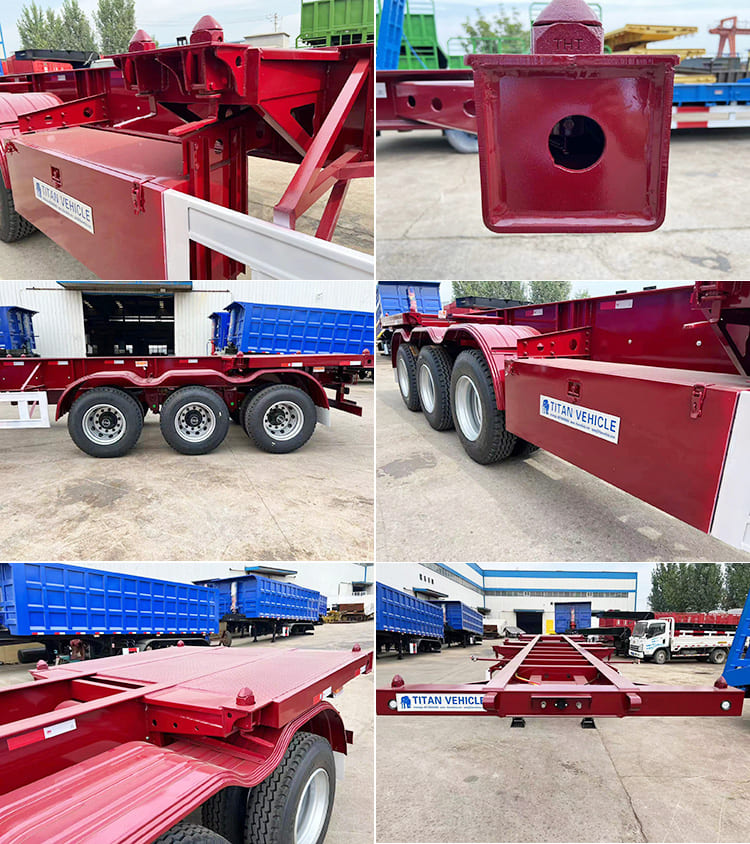

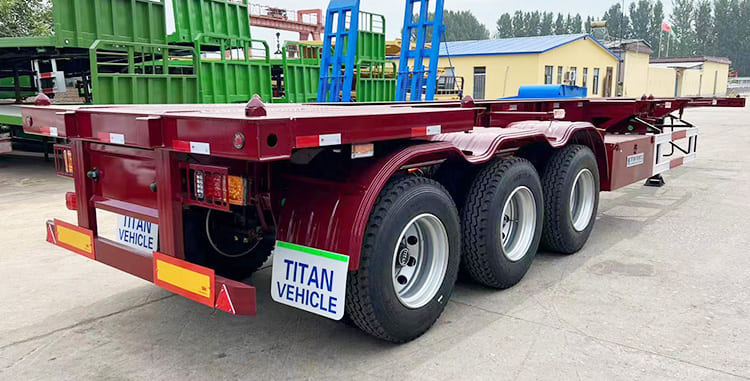

40 / 20Ft Skel Trailers for Sale Near Me in Philippines

40 / 20Ft Skel Trailers for Sale Near Me in Philippines

40 / 20Ft Skel Trailers for Sale Near Me in Philippines

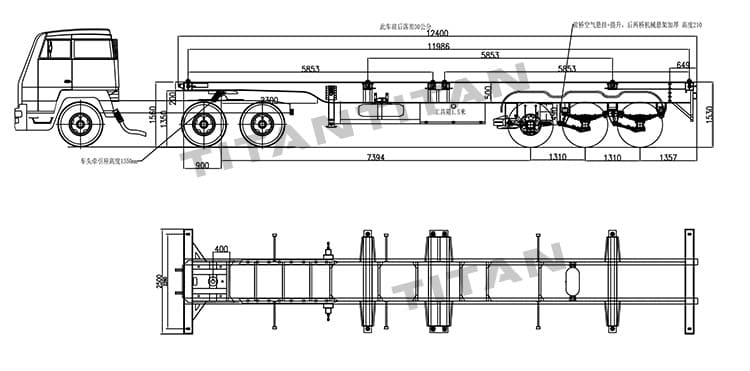

40Ft Skel Trailer Specification

Dimension(mm): 12500x2500x1530mm

Loading capacity(ton): ≤60T

Axles: Tri axle container chassis price

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension and Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

40 / 20Ft Skel Trailers for Sale Near Me in Philippines

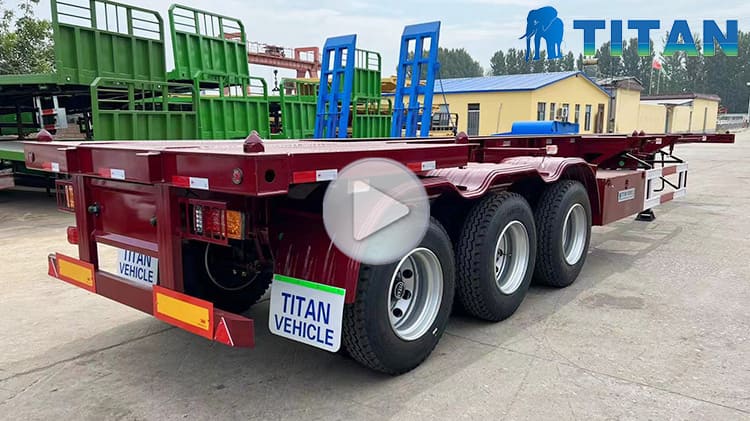

Video of 40/20Ft Skel Trailers for Sale

Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
