2 Axle 20ft Skeletal Trailer for Sale is a kind of container transport semi-trailer frame and the other is flatbed. 20ft Skeletal Trailer for Sale is welded by longitudinal beams, cross beams and front and rear beams. The longitudinal beams are made of high-quality steel plate 16Mn submerged arc welding into an I-shape (the main dimensions are 450, 500), and the cross beams are punched into grooves with high-quality steel plate. The front and rear beams are welded rectangular sections.
An integral long beam is installed at the middle container locking device to improve the carrying capacity of the container locking device. The difference between the flat panel type and the 20ft Skeletal Trailer for Sale is that the flat panel type has a frame and a patterned floor.

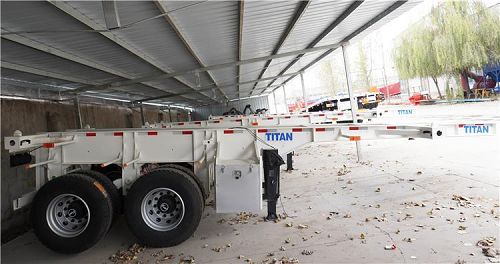

2 Axle 20ft Skeletal Trailer for Sale in Mozambique Beira
A container compaction device is installed on the frame, which can load two standard containers of 40 feet and 20 feet. The four container shrinking devices at the front and rear ends are of a fixed structure, and the middle container shrinking device is a concealable structure.
When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required. Its function is to support the ground and bear the front load of the Skeletal Trailer when the traction device is disengaged from the trailer. There are two types of supporting devices, single-acting type and linkage type.

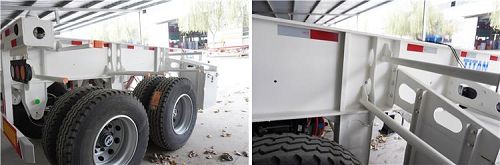

Details of 20ft multi function skeletal trailer
TITAN hot-selling models: 40 feet (13.95 meters long) 2 axle and 3 axle skeletal trailer, the whole vehicle is designed and manufactured with high-strength steel, the weight of the 2 axle skeletal trailer is about 4.7 tons, and the weight of the 3-axle vehicle is about 6.6 tons ( The weight varies according to the number of axles). It has the characteristics of low cargo platform, lightweight, high reliability, convenient loading and strong applicability.
There are 2 sets of locks on each side of the frame 20ft skeletal trailer for sale, which is equipped with the customer's own container for loading and unloading. This skeletal trailer optimizes the structure of the car on the basis of improving the frame material and combines the calculation results of the finite element analysis of the car to optimize the structure of the stress concentration part again, making the skeletal trailer more reliable and better.
When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required. Its function is to support the ground and bear the front load of the 20ft Skeletal Trailer for Sale when the traction device is disengaged from the trailer. There are two types of supporting devices, single-acting type and linkage type.
They are mainly composed of a supporting plate, a screw drive mechanism, a reduction box and a joystick. There are three types of suspension devices: single-axle suspension and double-axle suspension and three-axle suspension. The 20ft Skeletal Trailer for Sale is equipped with two spare tire frames, which are installed on the left and right sides of the trailer frame, and are equipped with spare tire lifters.

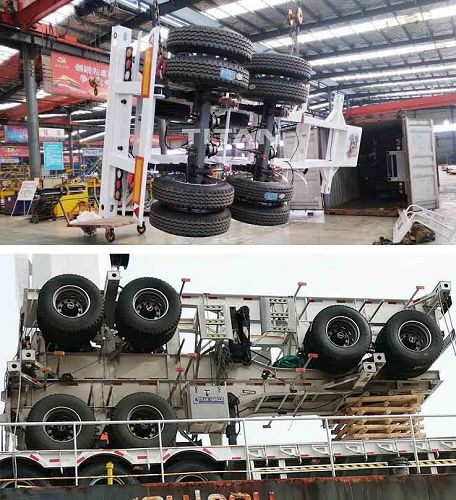

Different modes of Skeletal trailer transportation
Skeletal Trailer for Sale is specially used for the transportation of various containers. Its wear resistance, toughness, tightness, and corrosion resistance are several times that of conventional semi-trailers. It has the advantages of no skin, no stab, no water absorption, etc., and has a long service life. improve.
2 Axle 20ft Skeletal Trailer for Sale is a new structure product developed on the basis of the mature structure of similar semi-trailers and combined with the design concept of high-quality semi-trailers. Customers bring higher economic benefits.

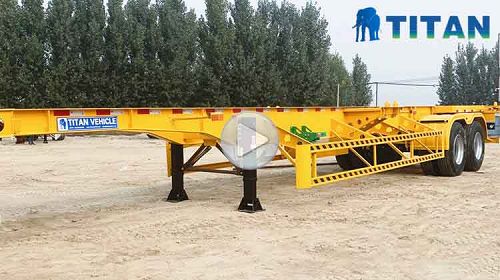

Through this video below, you can learn about different types of container chassis trailers, like 2 axle 40ft container chassis for sale, 3 axle 20ft skeleton container, interlink container trailer, 45ft terminal trailer.
And the process, testing, packaging and customer feedback, etc.
