The fluidization system is composed of breathable bag, side sliding plate, support plate and pressing plate bolts. The breathable bag and side sliding plate form an included angle with the horizontal plane

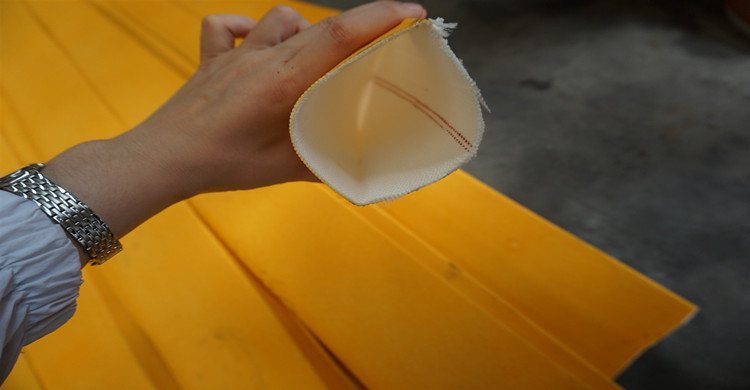

The fluidization bag is 105，120，125mm wide, with 8, 9 and 11 channels in total, which are pressed on the tank body with bolts,. The material we use is the fluidization bag with unique single-sided coating structure, which enhances the air permeability and resistance of the vent pipe in the transportation process, with large capacity, fast ash discharge and high efficiency. One side is breathable, the coating surface has good wear resistance and long service life. Light, soft and easy to coil. Adapt to the environment, anti-oxidation, anti-aging, easy maintenance. Belt blank weaving: single layer belt blank, warp polyester staple fiber, weft polyester filament, plain or twill weaving* Coating: single side PU coating (PU refers to polyurethane, which can be waterproof and breathable.) It can increase the wear resistance of the breathable tube and improve the permeability of the uncoated layer at the same time.
