A Container Flatbed Trailer is a specialized type of trailer used in the transportation of cargo. As the name suggests, it is designed specifically for carrying shipping containers, which are placed on top of the trailer's flatbed.
These trailers are typically made of steel, and their flatbeds are strong enough to support the weight of the shipping containers, which can be quite heavy. Container Flatbed Trailers come in a variety of sizes, ranging from 20 feet to 53 feet in length, and are often used in the transportation of goods by land or sea.
One of the advantages of using a Container Flatbed Trailer is its versatility. The flatbed design allows for easy loading and unloading of the containers, and it can be used to transport a variety of cargo, including vehicles, machinery, and equipment.
Another advantage is the trailer's stability. The flatbed design ensures that the containers are secured in place during transportation, reducing the risk of damage or accidents.
Overall, a Container Flatbed Trailer is an essential tool in the transportation industry, providing a safe and efficient way to move cargo from one place to another.

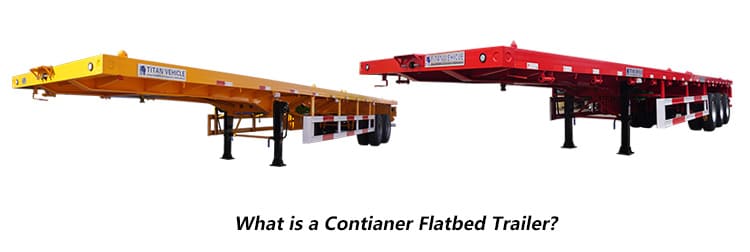

What is a Container Flatbed Trailer？
When it comes to transporting shipping containers, it's important to choose the right type of Container Flatbed Trailer for the job. There are several factors to consider when selecting a trailer, including the size and weight of the container, as well as the distance and conditions of the transport route.
Firstly, the size of the shipping container must be taken into account. The most common container sizes are 20 feet, 40 feet, and 45 feet. Each of these sizes requires a different type of trailer, with the most common being a 40-foot Container Flatbed Trailer. This trailer is designed to carry standard 40-foot containers and can handle a weight of up to 44,000 pounds.
Secondly, it's important to consider the weight of the container. The weight of the container, combined with the weight of the trailer, must not exceed the legal weight limit for road transportation. This is usually around 80,000 pounds in the United States, but it may vary depending on the state or country.
Finally, the distance and conditions of the transport route must be taken into account. If the route includes steep inclines, narrow roads, or adverse weather conditions, a more powerful trailer may be necessary to ensure a safe and successful transport.
In conclusion, selecting the right type of Container Flatbed Trailer for shipping containers requires careful consideration of the container size and weight, as well as the transport route. A knowledgeable and experienced shipping professional can help you determine the best trailer for your specific needs.

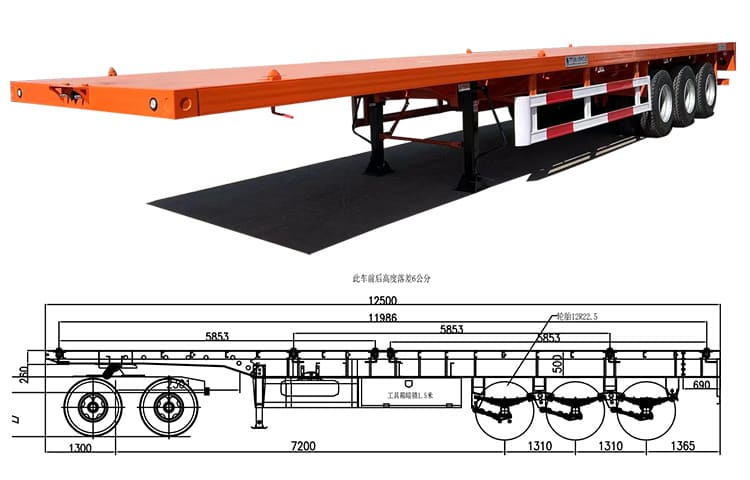

What kind of container Flatbed Trailer is needed for shipping container
If you're in the market for a Flatbed Container Trailer, there are several things you should know before making a purchase. From the type of suspension to the type of axles, understanding the key features of a Flatbed Container Trailer can help you choose the right one for your needs. Here are three important things to consider:
Suspension is a key feature of any Flatbed Container Trailer, and there are two main types to choose from: spring suspension and air suspension.
Spring suspension is the more traditional option, and it involves a series of metal springs that absorb the shocks and bumps of the road. While spring suspension is generally less expensive than air suspension, it can be less comfortable for the driver and may not provide as smooth a ride for the cargo.
Air suspension, on the other hand, uses compressed air to support the weight of the trailer and its cargo. This results in a smoother ride, better fuel efficiency, and less wear and tear on the trailer and its components. However, air suspension can be more expensive than spring suspension and may require more maintenance.

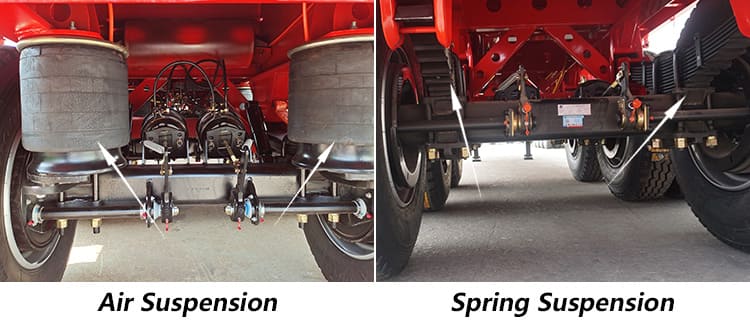

Two Common Suspensions of Container Flatbed Trailer
Container locks are another important feature of a Flatbed Container Trailer, and they come in several different types. Some common types of container locks include:
Twist locks: These are the most common type of container lock and are used to secure the container to the trailer by twisting the lock into place.
Gravity locks: These locks use gravity to keep the container in place, and they are typically used in conjunction with twist locks for added security.
Slide locks: These locks slide into place along the bottom of the container, providing a secure hold without the need for twisting or lifting.
Pin locks: These locks use a pin to secure the container to the trailer, and they are often used in conjunction with other types of locks for added security.
Choosing the right type of container lock will depend on a variety of factors, including the type of cargo being transported and the distance and conditions of the transport route.

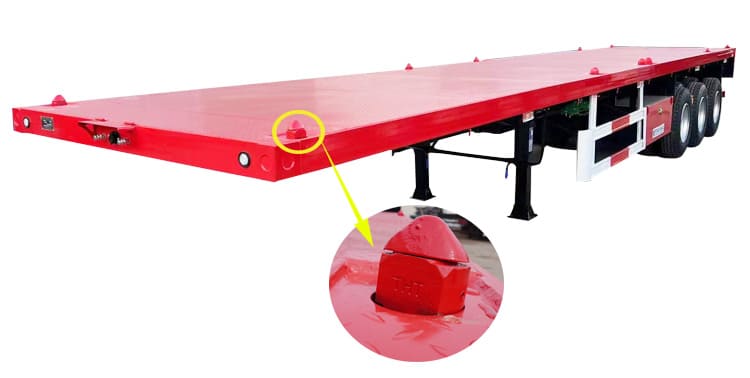

Several Types of Container Locks on Flatbed Container Trailer
When it comes to container flatbed trailers, the axles are a crucial component that determines their performance and durability. There are several types of axles used in these trailers, but three of the most common ones are TITAN axles, FUWA axles, and BPW axles. Let's take a closer look at each of them.
1. TITAN axles are renowned for their strength and reliability. Made of high-quality steel and engineered to withstand heavy loads and harsh conditions, TITAN axles are a popular choice for container flatbed trailers that operate in tough environments. They come in various sizes and configurations to suit different trailer designs and cargo types. Whether you're transporting construction materials, machinery, or other heavy goods, TITAN axles can handle the job.
2. FUWA axles, on the other hand, are known for their versatility and cost-effectiveness. Made in China, FUWA axles offer a balance between performance and affordability, making them a popular choice for budget-conscious trailer manufacturers and operators. They feature a simple yet robust design that can handle moderate loads and occasional rough terrain. While they may not be as durable as TITAN or BPW axles, FUWA axles can still provide a reliable performance for many years.
3. BPW axles, finally, are a premium option for container flatbed trailers that demand the highest quality and performance. Made in Germany, BPW axles are engineered to provide maximum stability, safety, and efficiency. They feature advanced technologies such as disc brakes, air suspension, and integrated sensors that optimize the trailer's handling, braking, and fuel consumption. While BPW axles may come at a higher price than TITAN or FUWA axles, they can offer significant benefits in terms of uptime, maintenance, and resale value.
In summary, choosing the right axles for your container flatbed trailer depends on your budget, cargo type, and operating conditions. TITAN axles are a robust and reliable choice for heavy-duty applications, FUWA axles are a cost-effective option for moderate loads, and BPW axles are a premium solution for high-performance requirements. Whichever axles you choose, make sure they are properly maintained and installed to ensure a safe and efficient operation.

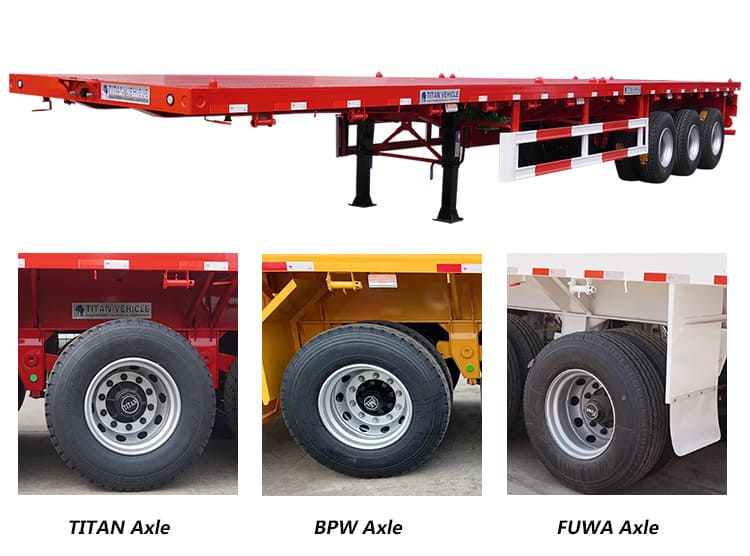

3 Types of Axles used on Container Flatbed Trailer
