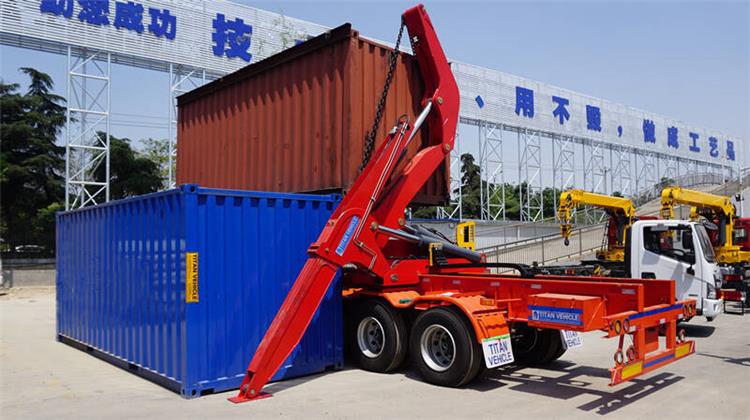

How to operate TITAN 40FT Side Loader trailer ?

1. Start the front of the car first, check whether the vehicle is in neutral before starting, step on the clutch when starting the front, and turn on the power take-off button after starting.

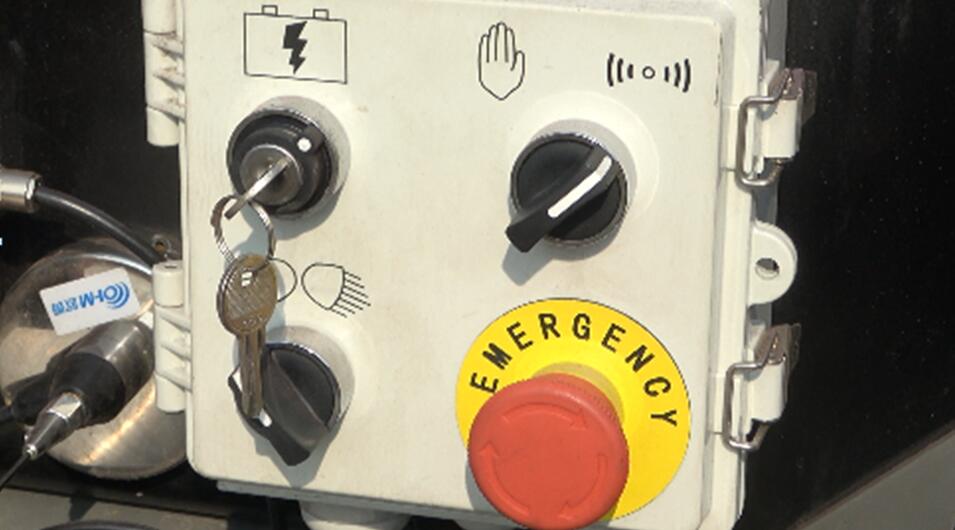

2. The control valve needs to be opened. The rotary torque on the lower left corner is the switch of the LED light on the boom. This setting is for the convenience of working at night; the rotary torque at the lower right corner is the emergency stop torque. , press the button .

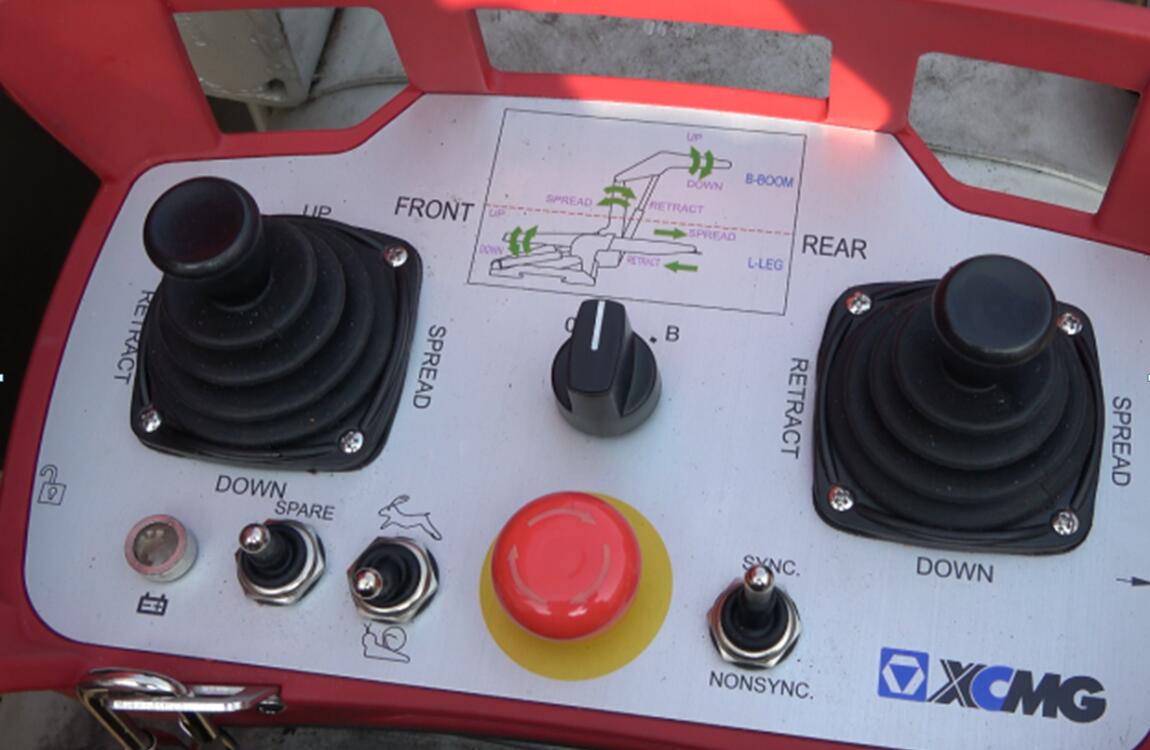

3. After the adjustment of the control valve is completed, start to use the remote control to control the boom work. The picture below is the panel of the remote control.

4. Next, start to operate the boom and outriggers to start working, turn the red rotary knob to the right, turn on the emergency stop knob, and then adjust the middle rotary knob to "L" to control the outriggers, and operate according to the remote control operation.

And we'll offer you the detailed operation video and Manuel, so it's very easy to operate.

And my friends, later if you want to know more, please contact us.

Annie

翻译结It gives you the opportunity to make many container movements every day. You can safely transfer the container to the ground in minutes. This increases efficiency and productivity. Lifting operations do not require a lot of operator and equipment. Trailer drivers can unload containers themselves in minutes and easily move 20ft and 40ft containers using the same equipment. No additional personnel or equipment is required. This makes your operation profitable. The container side winch is solidly constructed, making it a reliable device with minimal maintenance requirements. It is capable of handling container movement over any type of terrain, including low cost dry docks. It can safely handle fragile, valuable and dangerous goods. Differentiated cargo can be easily loaded and unloaded without spoiling any cargo. The side lift action allows you to place the container securely in the exact location you need for easy access when needed during loading and unloading. You can transport your containers by road anytime, anywhere. The ability to operate autonomously without the aid of other equipment during loading and unloading operations makes it possible to transport containers by road. Double stackable container. Now working properly in confined spaces, container side cranes can quickly and safely stack fully laden 20ft and 40ft containers.
