Today I would like to introduce the Major Strengths of Titan 3 Axles 40ft Flatbed Trailer from the perspective of main beam, side beam, bottom beam, floor plate, twist lock installation, and Polyurethane paint.

Titan 3 Axles 40ft Flatbed Trailer

1.Main beam

We adopt the low carbon high strength alloy steel Q345 to make the main beam , so it has the higher load-carrying capacity and longer service life  more than 10 years.

The main beam is integral without welded interface. We use automatic submerged ARC welding technology to weld the main beam. There is no welded joints between the upper, middle and lower plates of the beam, so it can ensure the wholeness of the main beam and make the beam more solid and durable.

Specification:

Upper plate: thickness is 14mm, width is 140mm;

Middle plate: thickness is 8mm, height is 500mm;

Lower plate: thickness is 16mm, width is 140mm.

Reinforcement:

There are vertical plate reinforcements to the main beam. The bottom plate of the main beam’s gooseneck part is reinforced by double plates, so the trailer deformation is small when carrying heavy load, which is better for use.

Titan 3 Axles 40ft Flatbed Trailer

2. Side beam:

The height of the side beam is 160mm. We use the thick wall channel steel, so the trailer deformation is small when carrying heavy load.

3. Bottom beam

We have 6 beams under the floor plate. It effectively ensure the flatness of the floor plate.

4. Floor plate

The floor plate is the 3mm diamond plate, It is thicker than the 2.5mm or 2mm floor plate of other factories. The floor plate is strong and durable, and is not easy to deform.

Titan 3 Axles 40ft Flatbed Trailer

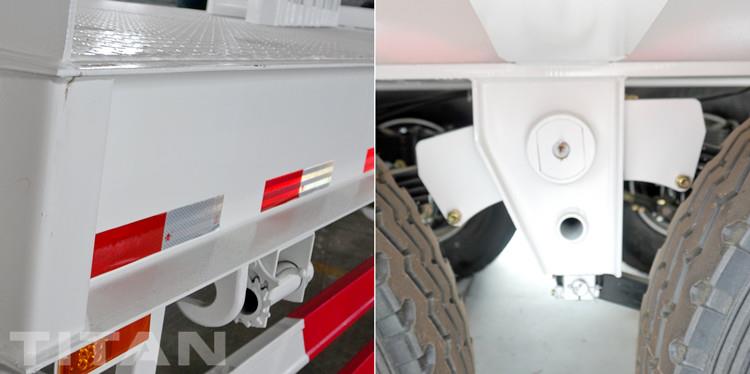

5. Twist lock:

The twist locks do not damage the structure of side beams, which ensures the strength of beam. The crossbeam fixing container adopts the larger and thicker 12# channel steel (120mm).

6. Polyurethane paint

We adopt the Polyurethane paint for all of our trailers which has high adhesion, more beautiful colors, and the cost is twice of ordinary paint. The strength is the paint will not fall off after more than five years of use.

These strengths work together to form the unique advantages of Titan 3 Axles 40ft Flatbed Trailer, which has better loading capacity and longer service life.
