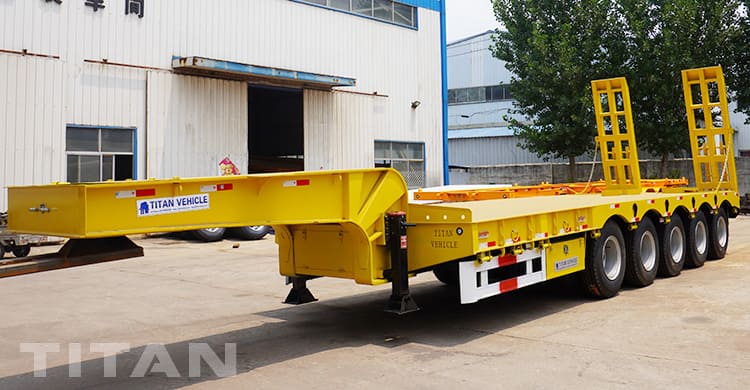

120T 5 Axles Semi Low Bed Trailer for Sale Price in Ghana
Ghana customer learned about our company TITAN Vehicle through the introduction of friends, and realized that our company is a company specializing in the production of semi-trailers, and has already cooperated with transportation companies and fleets in many African countries. So Ghana customer took the initiative to contact us. For the needs of transporting heavy bulk goods, Ghana customer need to purchase a semi low bed trailer, which has a stronger bearing capacity and has a ladder to facilitate the loading and unloading of goods. This time, the Ghana customer has some special requirements. Because the goods to be carried are relatively heavy, they put forward higher requirements on the load-bearing capacity of the semi low bed. Our factory technicians increased the number of axles to improve the bearing capacity of the semi low bed trailer for sale to meet the customer's needs, the customer was very satisfied, so he placed an order for this 120t 5 axles semi low bed trailer.
Let's take a look at the advantages of the semi low bed trailer produced by TITAN and the specification of this 120t 5 axles semi low bed trailer.

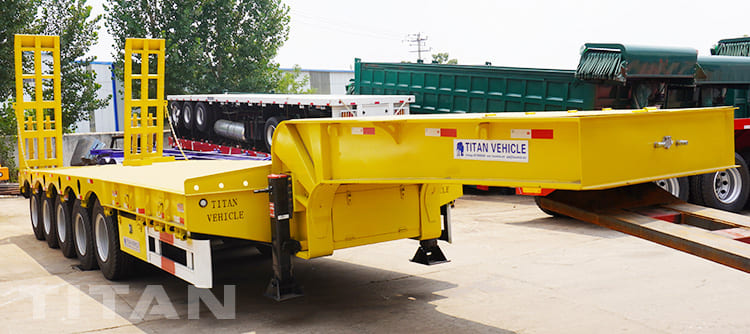

120T 5 Axles Semi Low Bed Trailer for Sale Price in Ghana
Semi Low Bed Trailer price has a harsh working environment and complex load. On the one hand, it bears the quality of body accessories and cargo, and on the other hand, it accepts various loads and excitations of different road systems through the suspension device. When one wheel encounters an obstacle, the frame will be twisted and deformed to intensify the vibration of various parts of the semi low bed trailer. Titan has conducted in-depth research and discussion on the semi low bed trailer frame and front suspension bracket, effectively reducing the vibration of the semi low bed trailer, improving driving safety, and improving the design level and core competitiveness of semi low bed trailer products.
The low bed trailer frame structure designed by TITAN is a low-flat concave beam type. There is a groove in the middle of the trailer to park a large amount of goods or engineering equipment, and a ladder device is installed at the rear of the trailer. The cargo is loaded and unloaded from the rear of the trailer. The frame is made of T700 high strengh steel, and the suspension system is tandem suspension with 10 leaf springs. The frame longitudinal beam assembly adopts H-shaped structure, the side beam adopts 18# channel steel, the cross beam adopts 10# channel steel, and the bottom plate adopts 3 mm checker plate. Anti-skid strips are welded on the bottom plate and ladder to prevent the cargo from slipping on the bottom plate during loading and unloading.

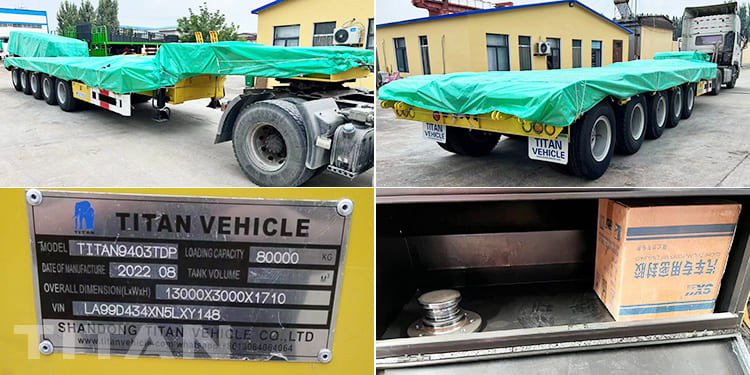

120T 5 Axles Semi Low Bed Trailer for Sale Price in Ghana
Overall dimension: 13000mm * 3000mm *1710mm
Loading capacity(T): 120T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: T700 steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Drawing of the 120T 5 Axles Semi Low Bed Trailer
You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
