3 Axle 40 Ton Sideboard Trailer for Sale in Djibouti
Djibouti customer ordered the 3 axle 40 ton sideboard trailer, and the sideboard trailer will be sent to the Djibouti.
TITAN sideboard trailer is designed for transportation of various cargoes: building materials, machinery, products of industrial enterprises.
The front wall of the sideboard trailer is reinforced to eliminate the possibility of damage to the cab during emergency braking, which can cause the load to shift. Boards and racks are quick-detachable, they can be quickly dismantled for loading / unloading goods.
The design of the sideboard trailer TITAN is based on a reliable and durable frame, spar type, with cross members. Before painting and priming, the metal structure of the frame is shot-blasted. The chassis of the TITAN sideboard trailer is equipped with a 3-axle with air suspension or mechinal suspension and disc or drum brakes.
3 Axle 40 Ton Sideboard Trailer for Sale in Djibouti
The sideboard trailer is the simplest vehicle for transporting goods. sideboard trailer for sale are used for transportation of long cargoes, rolled metal and are convenient for loading and unloading operations.
Design of a sideboard trailer
The structure of the TITAN sideboard trailer for sale consists of a welded ladder-type frame made of high-strength alloy steel. To give additional strength and wear resistance, the frame is processed in 3 stages: it is shot-blasted, primed and painted with enamel.
The chassis is equipped with a three-axle axle unit with disc brakes, which ensures the adaptation of the trailer side boards to uneven roads, good shock absorption, and is also reliable and safe during emergency braking. Its air suspension is designed specifically for the operation of trailers in difficult road conditions.
Disc brakes provide precise control over the movement of the brake pads and the transfer of the necessary force for safe and smooth braking. Six 12r22.5 tires from a European manufacturer and one spare wheel provide even more traction and dampening of small bumps without the need for suspension.
3 Axle 40 Ton Sideboard Trailer for Sale in Djibouti
The chassis of the trailer side boards is equipped with JOST mechanical supports. The chassis is also equipped with plastic fenders with mudguards that protect the body of the sideboard trailer from dirt and splashes. There is an aluminum side guard to prevent damage to the frame. There is a waterproof plastic box on the frame for transporting tools. In accordance with safety requirements, a rear underrun bar is placed.
The TITAN sideboard trailer is equipped with the WABCO brake system. The WABC Osystem performs an electro-pneumatic function that regulates the pressure and also adapts the braking forces to different driving situations. This system has an integrated anti-lock function - ABS, which analyzes the speed of the wheels and determines if any of them have a tendency to block, and accordingly calculates the required amount of brake pressure.
3 Axle 40 Ton Sideboard Trailer for Sale in Djibouti
Docking a sideboard trailer with a tractor
For strong and reliable docking with the tractor, a fifth wheel coupling is used. Qualitatively The hitch affects vehicle handling, road holding, maneuverability, road response, fuel economy, safety and many other performance characteristics.
Due to its design, the TITAN sideboard trailer evenly distributes the weight of the load over the entire wheelbase: its own and the tractor. The correct and even distribution of the weight of the load over the space of the sideboard trailer is important not only for its efficient use, but also for overload protection. The distribution of the weight of the load allows avoiding overweight on one of the sides and, as a result, tipping over of the sideboard trailer, as well as excessive load on one of the chassis axles.

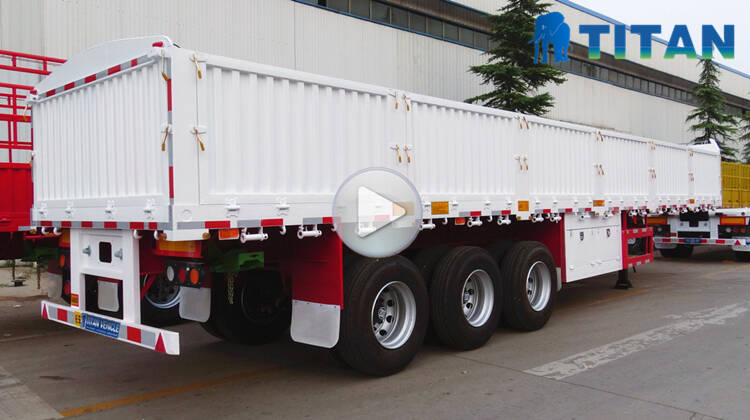

Through this video, you can learn about different types of sideboard trailers, as well as the process, testing, packaging and customer feedback, etc.
