3 Axles Heavy Loader Trailer for Sale in Papua New Guinea

This time, Papua New Guinea customers saw the semi-trailer with our company TITAN Vehicle logo printed there and became interested in us. For the purpose of transporting large cargo, Papua New Guinea customers need to order a couple of heavy loader trailers. Therefore, Papua New Guinea customers took the initiative to contact us and left their inquiries about heavy loader trailers on the official website titan-vehicle. Our sales received them immediately and provided them with professional advice, and finally, under the advice of the sales, Papua New Guinea customers ordered 3 sets of 3 axles heavy loader trailers from our company.

Now, the factory has produced all the 3 axles heavy loader trailers. These 3 axles heavy loader trailers are about to be sent to the port, and it is believed that they will soon be delivered to customers in Papua New Guinea.

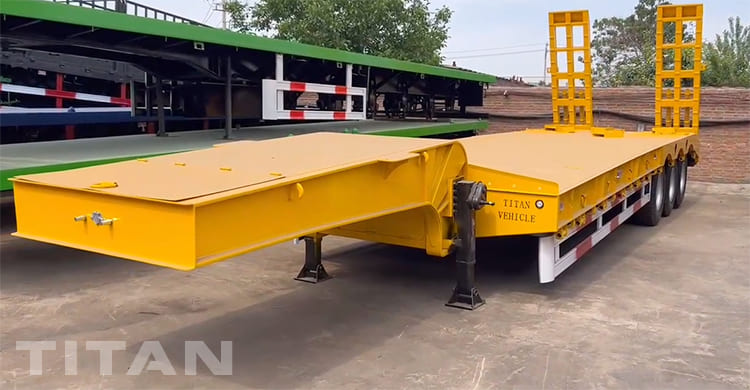

3 Axles Heavy Loader Trailer for Sale in Papua New Guinea

Introduction of heavy loader trailers:

The heavy loader trailers working platform has a low bearing surface and a stable center of gravity, which is conducive to the up and down of the machine. The upper part provides a large loading space. At the same time, the center of gravity after loading is low, and the vehicle runs safely and reliably. The specific use can be customized according to actual needs .

Scope of application: It is suitable for the transportation of various mechanical equipment, large objects, highway construction equipment, large tanks, ultra-high containers and various steel materials. It is widely used, efficient and fast.

Structural design: The flat-type semi-hanging walking structure is made of high-strength international steel; the models are complete and the design is flexible and diverse.

Advantages of the model: The vehicle has a light weight, and guarantees its anti-torsion, anti-vibration and anti-bump ability to meet the bearing capacity of different road surfaces; design the bearing surface of the frame according to the needs of users to meet the transportation of various special goods.

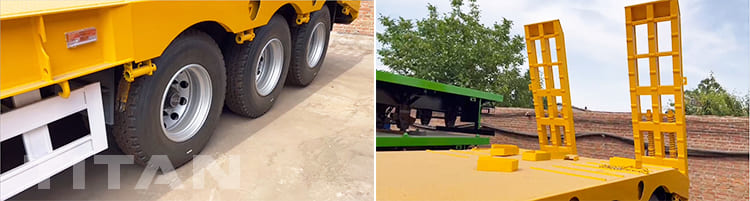

3 Axles Heavy Loader Trailer for Sale in Papua New Guinea

Specification of 3 Axles Heavy Loader Trailer：

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

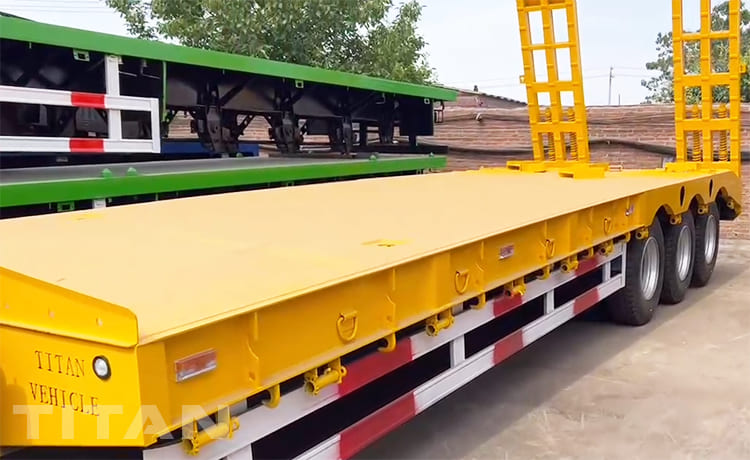

3 Axles Heavy Loader Trailer for Sale in Papua New Guinea

Advantage of 3 Axles Heavy Loader Trailer:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

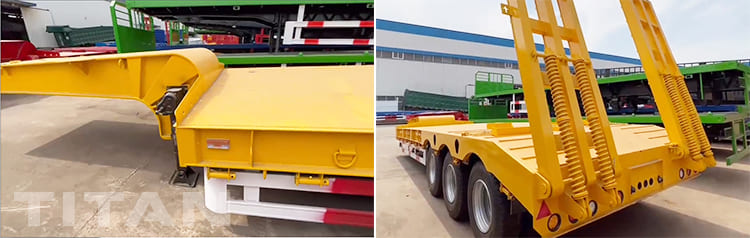

3 Axles Heavy Loader Trailer for Sale in Papua New Guinea

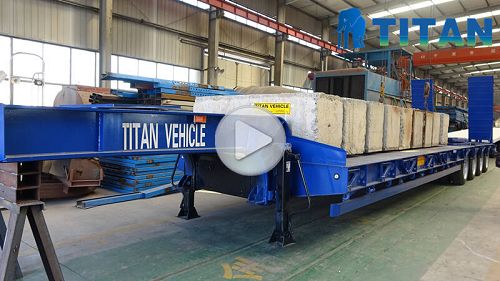

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
