30CBM Tri Axle Semi End Dump Trailer for Sale in Guinea
This time, Guinea customer saw our semi-trailer in the local, with our company's logo printed on the semi trailers, which aroused the interest of Guinea customer. Then the Guinea customer found our company's official website titan-vehicle through online search. The Guinean customer left an inquiry on the page of the semi end dump trailers for the needs of transporting sand and gravel. Our sales received Guinean customer. After inquiring about the specific transportation needs of the customer, then he recommended suitable semi end dump trailer to Guinean customer. After negotiating a series of production details, the customer ordered two 30cbm tri axle semi end dump trailer.
Now, the two 30cbm tri axle semi end dump trailers have been fully produced and will be packaged for delivery. I believe they will soon be delivered to Guinea customer.

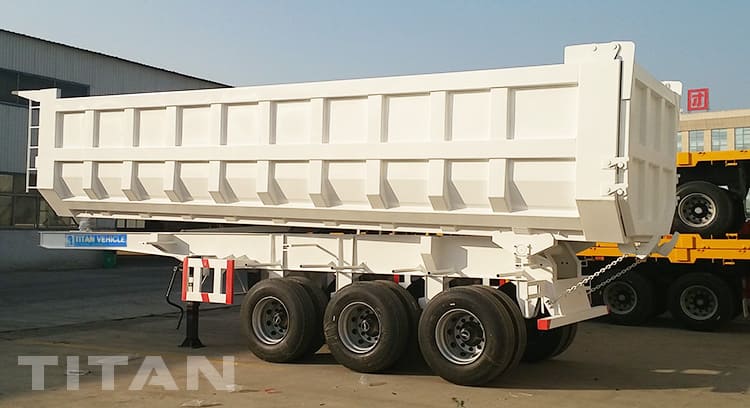

30CBM Tri Axle Semi End Dump Trailer for Sale in Guinea
The semi end dump trailer has a reasonable structure design and compact layout, which can meet the application needs of many fields. Moreover, the semi end dump trailer adopts rollover and reverse dumping methods, which increases the dumping function, reduces the labor intensity of workers, and improves the loading and unloading efficiency.
The frame of the semi end dump trailer is a frame structure made of steel welded longitudinal beams and reinforcing beams. The strength, stiffness and toughness of the frame are balanced, and it has the characteristics of strong bearing capacity and no permanent deformation. It adopts a variety of gooseneck forms and has a low bearing surface, which can meet the transportation needs of different goods.
The semi end dump trailer adopts a new type of suspension system, which has strong impact resistance and high strength; the axle load is balanced, and the system tie rod design is reasonable. In turn, tire wear can be reduced, and the tie rod and wheelbase can be adjusted at the same time, which greatly avoids the problem of tire eccentric wear and wheel bite.

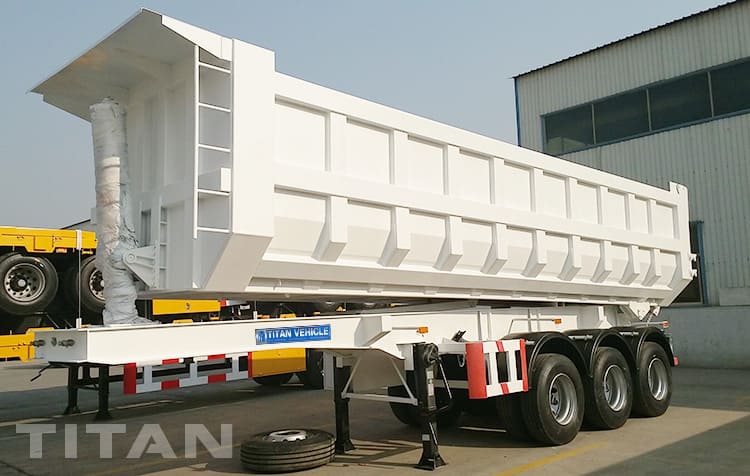

30CBM Tri Axle Semi End Dump Trailer for Sale in Guinea
As a special vehicle with a large market share, the semi end dump trailer is widely used in the transportation of sand, coal and other goods. When unloading, the feeding truck can automatically turn over to a certain angle, which greatly saves the unloading time. And labor, shorten the transportation cycle and improve production efficiency.
Let's take a look at the main differences between a semi end dump trailer and a side tipper trailer
1. Site requirements: Under normal circumstances, the side tipper trailer requires a large, wide and flat unloading site, and then the semi end dump trailer does not have high requirements for the site width, and only needs to be flat and unobstructed.
2. Model requirements: side tipper trailer are generally used for heavy-duty vehicles or trailers over 9.6 meters, and Semi end dump trailer are mostly used for standard-load or short-wheelbase vehicles.
3. Lifting form: The lifting height of the semi end dump trailer is low, so the center of gravity of the body is relatively low when unloading, and due to its hoisting method, the beam is prone to uneven force when unloading; the lifting height of the side tipper trailer is relatively large, and when unloading The center of gravity of the vehicle tends to shift back, causing tilting, especially when unloading from slope to slope.
If the side tipper trailer is not well controlled when unloading, it is prone to instability. However, semi end dump trailer generally need to be equipped with a shift lever, so this kind of rollover accident can be reduced to a certain extent, but it cannot be completely avoided, and strict and standardized operations are required.

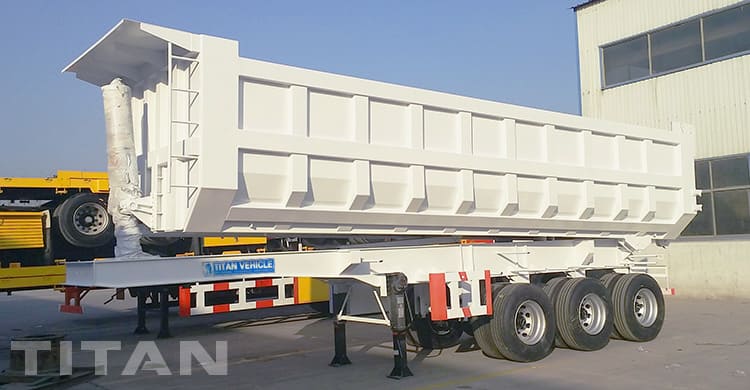

30CBM Tri Axle Semi End Dump Trailer for Sale in Guinea
In general, semi end dump trailer transport heavy objects, so the requirements for the trailer chassis are relatively high. In particular, the axle assembly is not only a key component of the chassis load-bearing, but also related to the braking and driving performance of the trailer. Therefore, when choosing a semi end dump trailer, you must pay attention to its performance.
You can download video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
