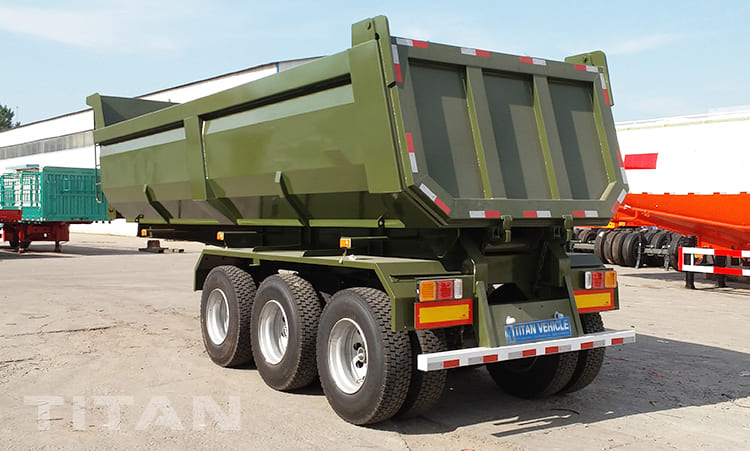

30CBM U Shape End Dump Trailer for Sale in Uganda
This time, a Ugandan customer got to know our company through the introduction of a friend, and learned that our company specializes in the production of semi-trailers. It just so happens that the customer needs to buy a end dump trailer for the purpose of transporting sand and gravel. So Ugandan customer took the initiative to contact us and left an inquiry on our official website titan-vehicle. Sales recommends suitable products to customers with due consideration to the specific transportation needs of Ugandan customer. The Ugandan customer finally purchased this 30cbm u shape end dump trailer.
Now, this 30cbm u shape end dump trailer has been fully produced and will be packaged for delivery. I believe it will soon be delivered to Ugandan customer.
Now let's take a look at the operation process of this end dump trailer and the advantages of the 30cbm u shape end dump trailer by TITAN.

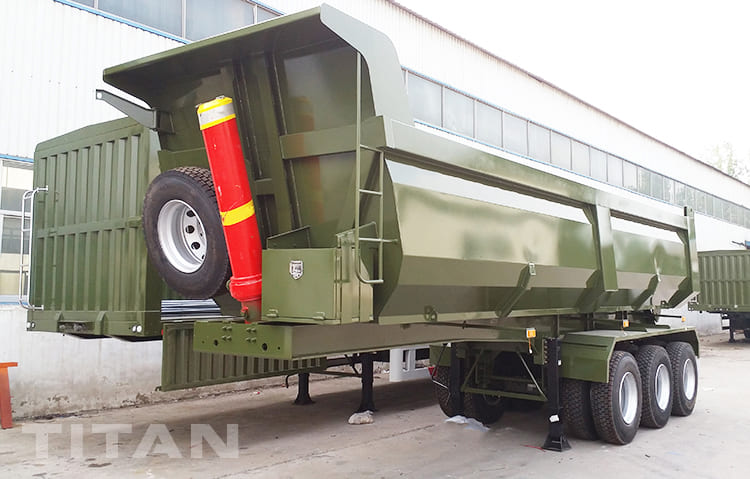

30CBM U Shape End Dump Trailer for Sale in Uganda
U shape end dump trailer is one of the transportation vehicles widely used in construction and other industrial fields at present. Under the control of hydraulic system, such transportation vehicles can complete lifting, intermediate stop, limit, return, ceiling opening and closing, etc. This function has good application value. And the previous engineering practice experience shows that the U shape end dump trailer has incomparable advantages over other transportation vehicles in terms of operation efficiency, transportation efficiency, and material surplus rate.
1. Do not suddenly push the lifting handle to the "lowering position" in the middle of full-load lifting. If such an operation error occurs, the carriage will suddenly rush down, which will bring a great impact to the frame, and even cause an accident. Therefore, the above-mentioned operations should be avoided as much as possible. If there are special circumstances, it must be operated carefully, the descent speed should be slowed down as much as possible, and the carriage must not be suddenly dropped to the bottom.

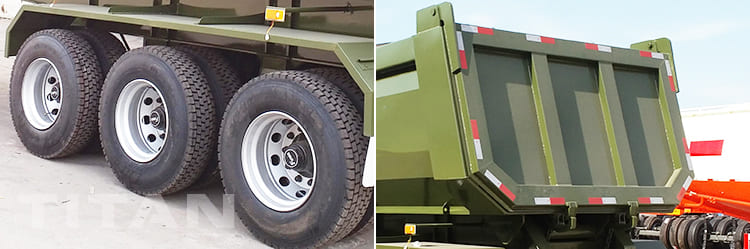

30CBM U Shape End Dump Trailer for Sale in Uganda
2. It is not allowed to use the slam-lift truck - slam brake to unload the goods. Due to the large inertial force (usually 5~20 times of the rated lifting force), it is very easy to cause permanent deformation of the frame, welding of the carriage and sub-frame, burning of the oil pump, damage to the sealing ring, damage to the hydraulic cylinder, etc. , the service life of the vehicle is reduced, and in severe cases, a rollover accident will occur. Therefore, it is generally forbidden to drive the U shape end dump trailer when it is lifted.
3. After the U shape end dump trailer unloads the goods, the power take-off must be disconnected before driving. If this operation error occurs, when U shape end dump trailer is driving, since the power take-off is in the "engaged" position, the lift oil pump will run at high speed for a long time without load in the "small cycle" state. As a result, the oil temperature of the hydraulic oil rises rapidly, which is easy to cause damage to the oil seal of the oil pump, and even the phenomenon of "burning out" of the oil pump; more seriously, the operation of the oil pump means that the hydraulic system has a power source, and it is easy to cause the carriage to automatically rise during the driving process. accident.

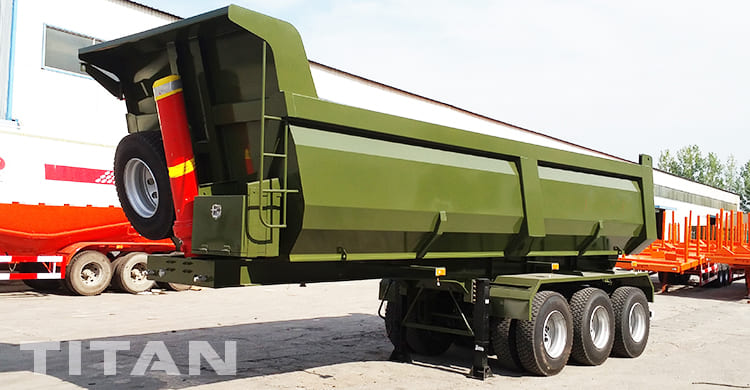

30CBM U Shape End Dump Trailer for Sale in Uganda
4. The power take-off cannot be in the "on" position when driving. If it is in the "on" state (the red light is on), the oil pump will continue to rotate, and the hydraulic system will have a power source, which will cause the carriage to lift automatically due to misoperation on the air control valve; Even if the control distribution valve is in the "down" position, the oil will enter the oil pump, which will cause the oil pump to burn out.
1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.

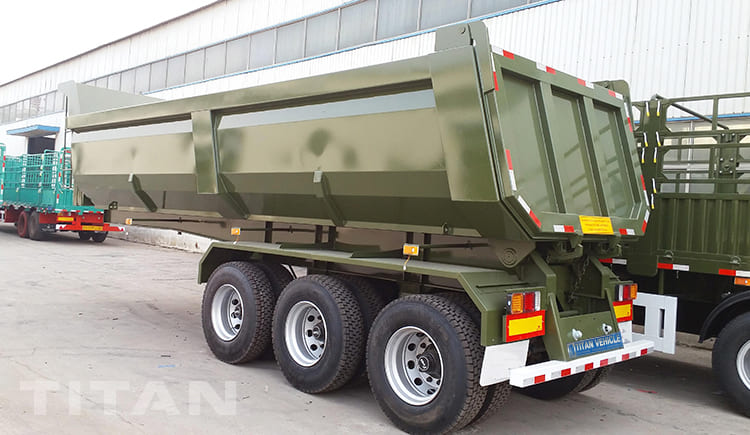

30CBM U Shape End Dump Trailer for Sale in Uganda

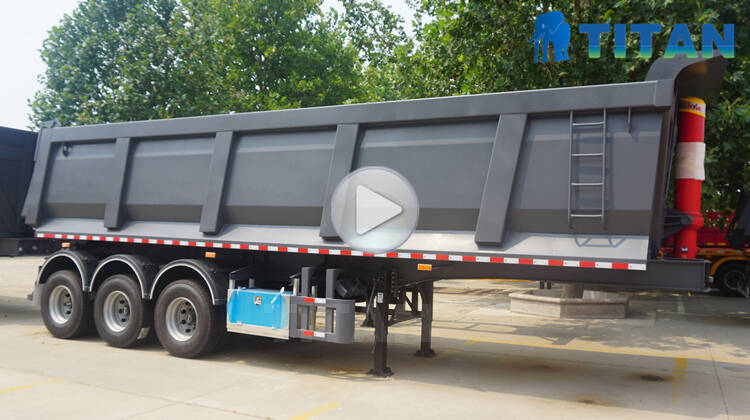

You can download video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
