37 Ton Side Lifter Crane Trailer for Sale in Nigeria Lagos

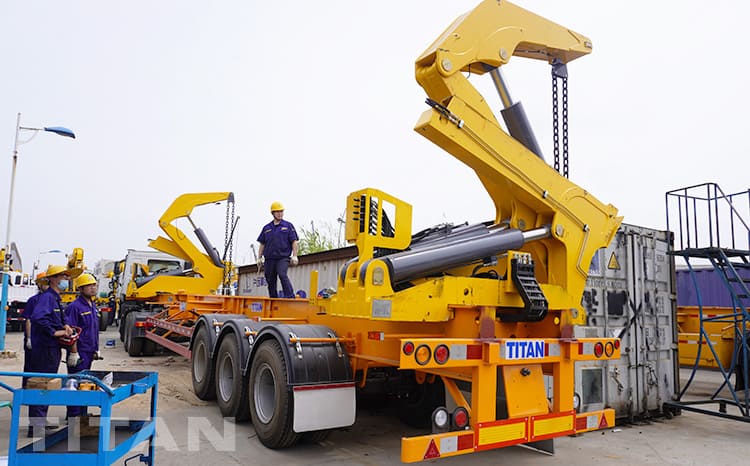

This time Nigeria customer found our company TITAN Vehicle through web search. After browsing our official website titan-vehicle, Nigerian customers think that we are a professional manufacturer of semi-trailers and are very interested in our products. For the needs of loading and unloading containers, the customer left an inquiry under our side lifter crane trailer products. Our sales received him warmly. After fully considering the actual needs of customers, the sales recommended this 37 ton side lifter crane trailer to Nigeria customer, as shown in the picture above. After comprehensive consideration, the Nigeria customer decided to purchase two 37 ton side lifter crane trailers.
Now, the two 37 ton side lifter crane trailers have been fully produced, and it is believed that they will be delivered to Nigeria customer soon.
Next, let's take a look at the basic structure of the side lifter crane trailer and its main advantages.
37 Ton Side Lifter Crane Trailer for Sale in Nigeria Lagos

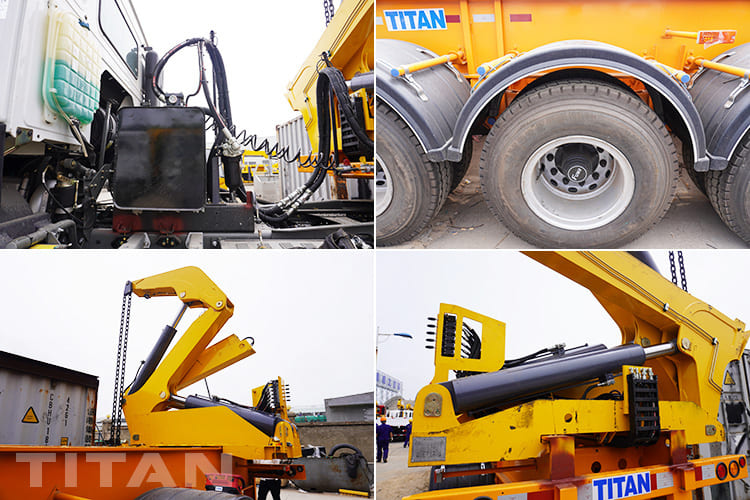

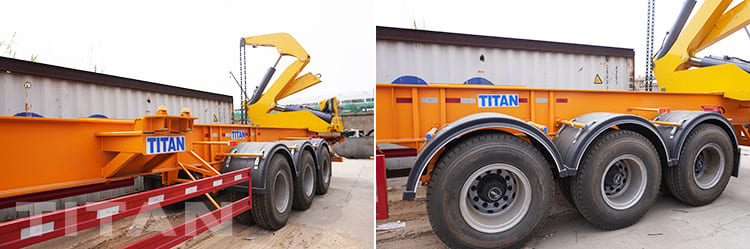

1) Semi trailer chassis and tractor
There are two main working conditions for side lifter crane trailer - transfer and loading or unloading. In the case of transshipment, there is no obvious difference from ordinary container transport vehicles, so its first basic execution component is the semi trailer chassis. At present, 40ft containers are the most common in the world's container transportation, so most of them need to be transported by semi-trailers, which requires a tractor to provide power for the side crane to travel and load and unload.

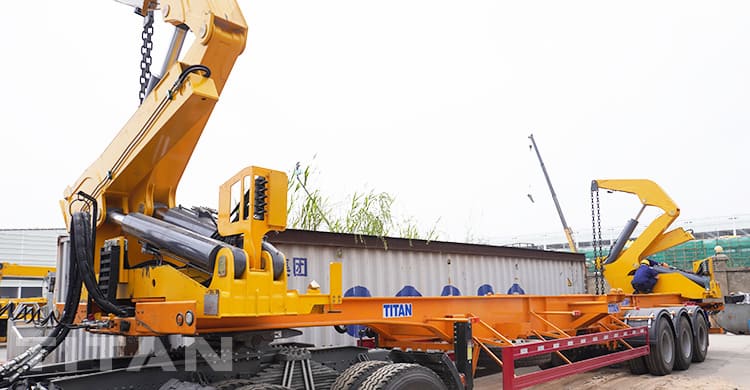

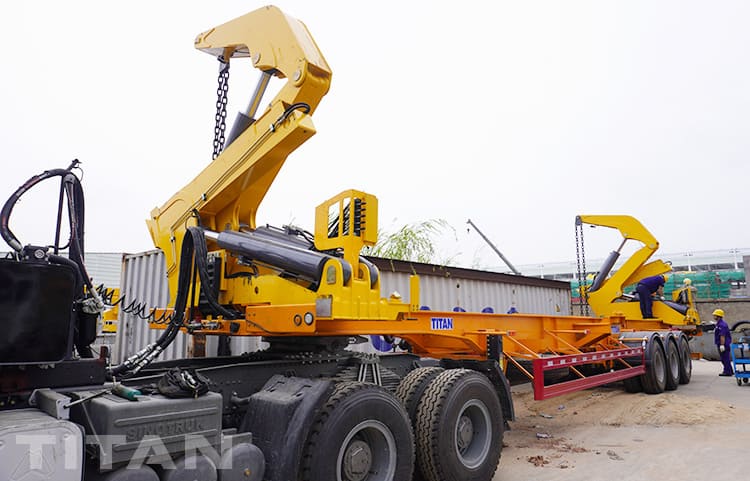

2) Front and rear lifting devices
In the loading and unloading condition, the operation is completed by two sets of lifting devices installed at the front and rear ends of the trailer, and the front and rear lifting devices have become the second basic execution component of the side lifter crane trailer.
37 Ton Side Lifter Crane Trailer for Sale in Nigeria Lagos
3) Slip mechanism and hydraulic system
As the side lifter crane trailer technology becomes more and more mature, the adaptability of each side crane becomes wider and wider. Usually, it can hoist containers of various specifications such as 20ft, 30ft, 40ft, etc. The general solution is to install a set of skids in the middle of the girders. The slip mechanism can realize the forward and backward movement of the lifting device on the girder through the expansion and contraction of the sliding cylinder to adapt to containers of different specifications. In the lifting device, the extension and recovery of the boom and the outrigger, and the sliding of the entire lifting device are realized by the expansion and contraction of the hydraulic cylinder, so the hydraulic system is also an important part of the side lifter crane trailer.
4) Independent power source
In order to save costs and improve transportation efficiency, drop and pull transportation has gradually become a mainstream transshipment solution. Drop and Pull Transport, refers to a trailer transport organization that continues to operate after a tractor (or truck) drops a trailer at a loading and unloading site and hangs a designated trailer according to a predetermined plan. form. Its basic working mode is as follows: only one tractor is needed, and different trailers are towed in different time periods according to the pre-established plan or temporary scheduling instructions, which greatly improves the utilization efficiency of the tractor. The combination of side lifter crane trailer and drop and pull transportation can improve the efficiency of logistics transfer. Then the side crane only takes power from the tractor and cannot meet the requirements of drop and pull transportation. Usually, an independent engine system, referred to as independent power source, is installed under the trailer girder.
37 Ton Side Lifter Crane Trailer for Sale in Nigeria Lagos
To sum up, the side lifter crane trailer is mainly composed of 6 systems: tractor, semi-trailer chassis, front and rear lifting devices, slip mechanism, hydraulic system, and independent power source. Therefore, in order to keep the side lifter crane trailer in good working condition, it is necessary for these 6 systems to ensure their efficient work, and the coordination performance of the overall operation is also very good.
1. Timesaving and improve efficiency: TITAN side lifter crane trailer can be productive all day, enabling loading, unloading and transporting containers by itself easily.
2. Flexible solutions: With the TITAN 37 tons side lifter crane trailer, you get closer and can lift between trailers safely and with high precision.
3. Famous WABCO braking valve, JOST landing gear for the main chassis container skeleton trailer
4. Famous NBB Germany Remote Control, easy to operate
5. TITAN 40ft container side lifter trailer adpots wireless remote control technology, loading container just takes 10 mins.
37 Ton Side Lifter Crane Trailer for Sale in Nigeria Lagos
You can download video, you can learn about different types of sidelifter trailers, including 20ft self loader truck, 20ft sidelifter and 40ft container side loader trailer, as well as the process, testing, packaging and customer feedback, etc.
