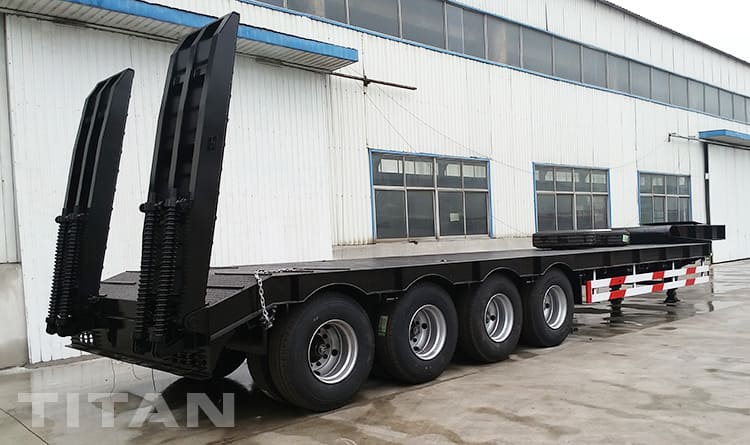

4 Axle 100 Ton Drop Deck Trailer for Sale In Congo
The Congo customer purchased two 40ft flat bed semi trailers from our company TITAN Vehicle last year. The Congo customer believes that the semi-trailer products produced by our company are of good quality and guaranteed quality. So this time, the Congo customer decided to re-order two drop deck trailers from our company TITAN Vehicle again. Customers buy drop deck trailers mainly to transport heavy machinery and equipment like excavators. Our sales recommended this 4 axle 100 ton drop deck trailer to the customer after fully considering the customer's transportation environment and conditions. After comprehensive consideration, the customer purchased two 4 axle 100 ton drop deck trailers.
Now, the two drop deck trailers have been fully produced and will be packaged for delivery. I believe they will soon be delivered to Congo customer.
Next, let's take a look at the application and advantages of the TITAN drop deck trailer.

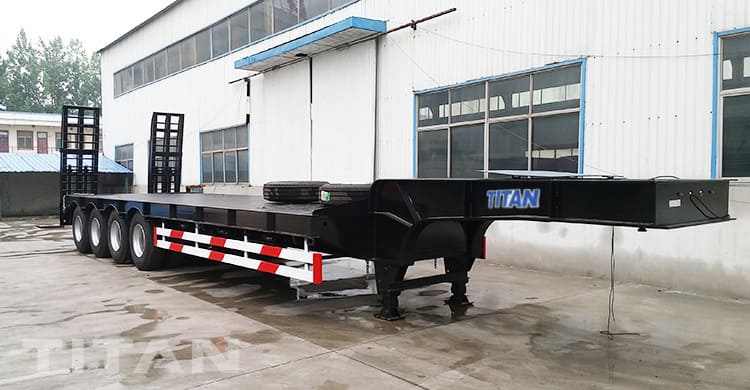

4 Axle 100 Ton Drop Deck Trailer for Sale In Congo
Drop deck trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc. ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.
4 Axle 100 Ton Drop Deck Trailer for Sale In Congo
The drop deck trailer is mainly composed of ladders, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and lower side protection device, safety accessories and signs, etc. ,mainly suitable for the transportation of large construction machinery or large machinery.
1.main beam
The main beam of Titan drop deck trailer is made of HG60 high strength structural steel. HG60 steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than the trailer made of Q345 steel.
TITAN drop deck trailer main beam: height: 550mm; thickness: 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.
2. side beam
The side beam adopts "H" shape design and is welded with HG 60 steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use.
4 Axle 100 Ton Drop Deck Trailer for Sale In Congo
3. through beam
The through beam use HG60 high strength steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, the service life more than 10 years.

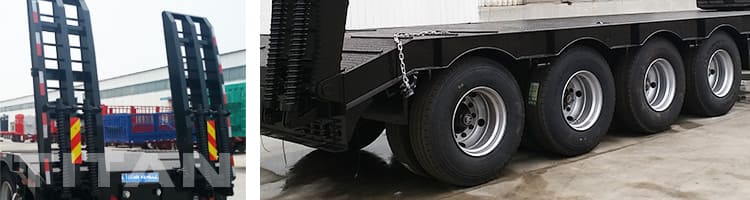

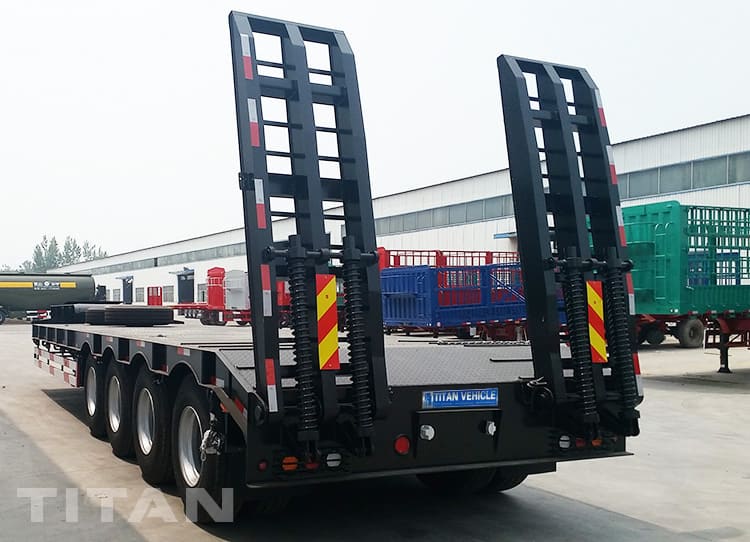

4. the ladders
The ramp is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage. The service can up to more than 5 years.
Here are more details about the drop deck trailer.
1.paints
The drop deck trailer with polyurethane paint, high adhesion, high chromaticity, beautiful color, cost is twice than ordinary paint. But the paint won't come off after five years.
2.floor plate
The floor plate of Titan low bed trailer is 5mm diamond plate, which is thicker than the 4mm plate used by other factories. The floor plate is strong and durable, and not easy to be deformed
4 Axle 100 Ton Drop Deck Trailer for Sale In Congo
3. landing gear
Titan low bed trailer optional JOST landing gear, is the world famous recognized brand accessories. Better bearing capacity, long service life.
4.the lights
The whole trailer is equipped with LED lamps and will be shipped with a set of taillights and side lights.
You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
