4 Axle 48Ft Flat Body Trailer with Front Boards for Sale in Cote d'Ivoire
The 4 axle 48ft flat body trailer with front boards specially customized by the Cote d'Ivoire customer has been completed. Congratulations to the Cote d'Ivoire customer, these two 4 axle 48ft flat body trailer with front boards are about to be sent to the port.
The customer in Côte d'Ivoire first got to know TITAN's semi-trailer through the Alibaba platform, and the customer asked about the flat body trailer. Alice, our salesperson, received him. After some discussion and negotiation, the client finally determined his requirements. Because the customer is buying a TITAN product for the first time. Therefore, we give customers appropriate preferential prices and give away more accessories. Now, the customer is about to receive the TITAN custom-made flat body trailer for the customer.

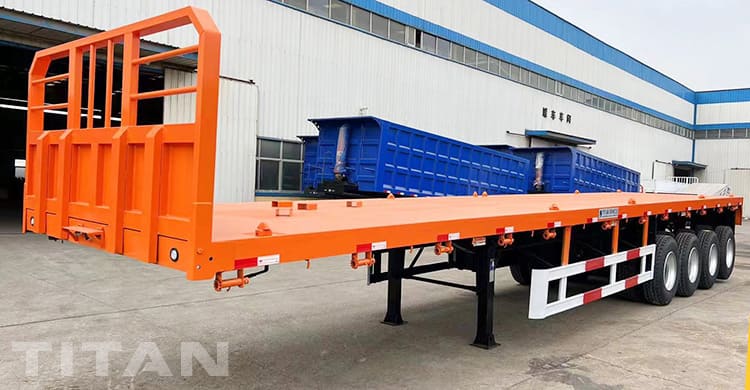

4 Axle 48Ft Flat Body Trailer with Front Boards for Sale in Cote d'Ivoire
The container lock is mainly used to fix the container on the flat body trailer. The international common container specifications are: 20-foot container (8x8x20) and 40-foot container (8x8x40). In recent years, 40-foot high and 45-foot high containers are used more and more. According to the different specifications of the container, the container is equipped with a corresponding number of twist locks. A standard 3-axle 40-foot flat body trailer is usually equipped with 12 sets of locks. A container transport vehicle can be equipped with a twist lock of the same type, or it can be used in conjunction with several types of twist locks, but regardless of the form, the purpose is to ensure that the container is tightly connected during transportation.
There are many ways to connect the container lock and the flat body trailer for sale. Some are directly welded to the flat body trailer for sale, and the lock head can only be rotated but cannot be moved longitudinally. This is called a fixed type; It can not only rotate but also extend vertically. When not in use, the lock head can be lowered below the bearing surface to apply to different standard box types. This is called a lift type; It can be moved, so that the fastening position can be adjusted, thus greatly improving the utilization rate of the vehicle; there is also a plug-in twist lock, the lock shaft extends into the fixed part of the box like a bolt, and generally cooperates with other types of twist locks use.

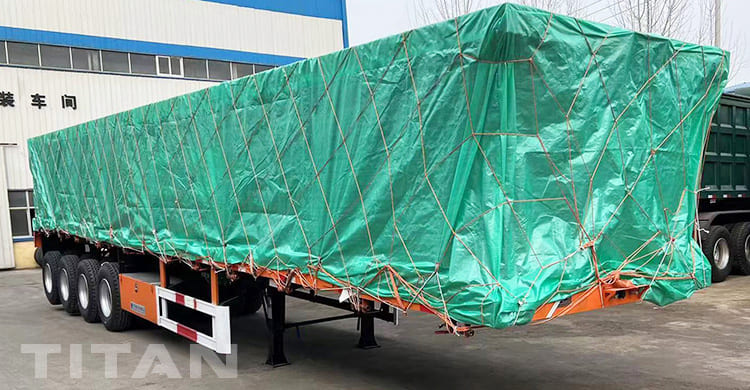

4 Axle 48Ft Flat Body Trailer with Front Boards for Sale in Cote d'Ivoire
When the container is hoisted on the vehicle bearing surface, make the corner hole of the container bottom just fall on the position where the lock is installed, and by rotating the handle of the turn lock, the lock head will be fixed at a specified angle position (usually 90 degrees or 70 degrees). ) to keep the twist lock in a locked state. For the lift-type twist lock, push the handle longitudinally to lift the lock head, extend into the inner cavity of the bottom corner piece of the container, and then rotate to a specified angle to lock the corner of the container. Some twist locks are equipped with a tightening device, and through tightening, the lock head can press down on the bottom surface of the inner cavity of the corner piece to prevent the box corner from being lifted, thus ensuring more secure and reliable locking.
The container lock is mainly used to fix the container on the 48ft flat body trailer. It is mainly composed of a lock tongue and a lock seat. The width of the lock seat is equipped with a grease nipple. After a period of use, the lubrication of the lock should be checked, and grease should be injected in time to ensure the lock rotates flexibly. Depending on the location of the lock and the size of the container being shipped, container locks are divided into two types: welding type and telescopic (recumbent) hideable type or lock.

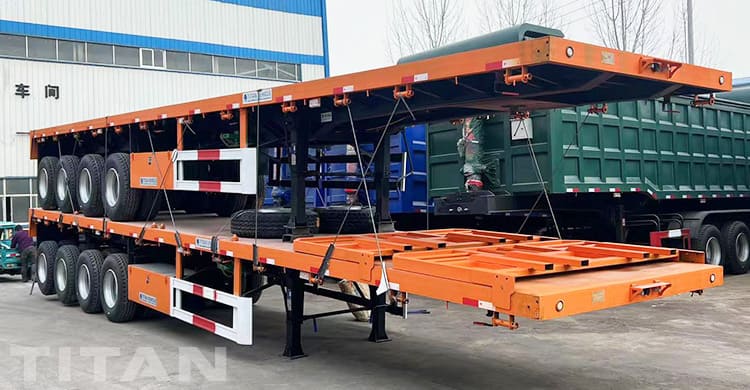

4 Axle 48Ft Flat Body Trailer with Front Boards for Sale in Cote d'Ivoire
Welded locks are installed at the front and rear corners of the 4 axle flat body trailer frame, and telescopic (recumbent) hideable locks are installed in the middle of the trailer, so that when large-sized containers are transported, the container locks installed in the middle of the trailer will be higher than the bottom frame. Interfering with the bottom side beam of the container, affecting the contact between the container and the frame, thus affecting the fixation of the container, the movable lock can be rotated 90° as a whole and placed in the slot of the lock, so that the lock is lower than the frame, thus avoiding the need for The impact on the container is convenient for the loading and unloading of the container and the use of the container lock: adjust the lock vertically, align the bottom wrapping angle of the container with the lock, and stabilize it. Realize the fixed locking of the container.

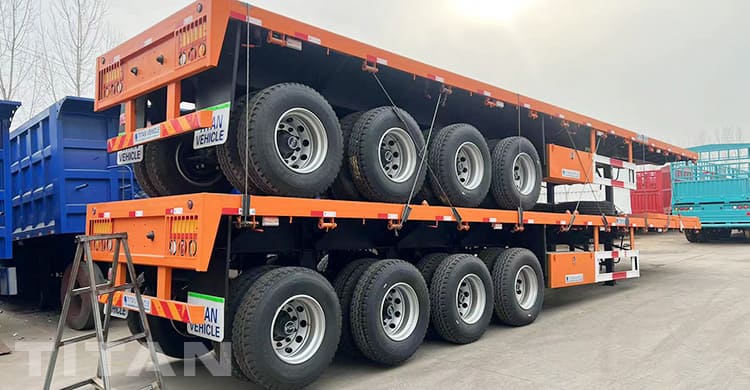

4 Axle 48Ft Flat Body Trailer with Front Boards for Sale in Cote d'Ivoire
Through this video, you can see different types of flatbed tri axle trailers, As well as the process, testing, packaging and customer feedback, etc.
