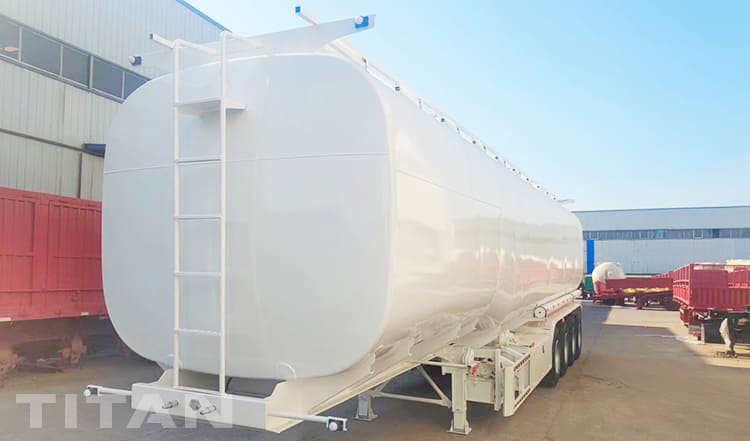

4 Axle 60000Ltrs Fuel Tanker Trailer will be sent to Mozambique
Mozambican customers learned through Facebook and other social platforms that our company titan vehicle specializes in the production of semi-trailers. Including fuel tanker trailer, lowbed trailer, flatbed semi trailer, lowboy gooseneck trailer, cement tanker trailer and so on. Mozambican customers have developed a strong interest in TITAN Vehicle, and the customer is planning to purchase a couple of fuel tanker trailers. So the Mozambican customer left inquiries and contact information, and our sales staff received him immediately. In the process of communicating with our sales staff, the customer clarified various specific requirements and details for the production of fuel tanker trailers. During the process, our sales staff showed professional quality and patience. In the end, the two sides agreed on the production quantity and a series of details of the fuel tanker trailer, and the customer decided to buy a 4 axle 60000ltrs fuel tanker trailer.
After negotiation with the factory, the factory rushed to work day and night. After a series of fuel tanker trailer production processes, the 4 axle 60000ltrs fuel tanker trailer has been produced and will soon be sent to the port and shipped to our Mozambican customers over the sea.

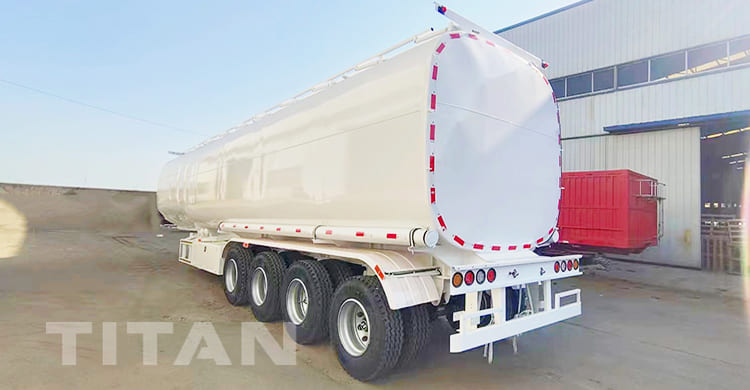

4 Axle 60000Ltrs Fuel Tanker Trailer will be sent to Mozambique
The fuel tanker trailer is mainly composed of two parts: the chassis and the tank body. At present, the commonly used tanker materials are carbon steel, aluminum alloy and stainless steel.
In addition to the material, another very important factor is the production process, which is why the same configuration and the same tank material have different prices.
There are generally four types of cross-sectional shapes of the tank body of the tanker: round, oval, round and rectangular, and special-shaped. During the driving of the tanker, the shaking of the liquid will bring a certain impact to the inner wall of the tank. In order to ensure the uniformity of the pressure of the tank, the section of the tank is generally circular or oval, and the manufacturing process is relatively simple. However, due to the high center of gravity of the round tank, the stability of the vehicle is not used, so most of the general oil tankers use elliptical tanks.
4 Axle 60000Ltrs Fuel Tanker Trailer will be sent to Mozambique
In the manufacturing process of the tanker, it must undergo various forming processes. At the same time, in order to ensure sufficient stability during work, the processing process of the fuel tanker is an important factor to ensure its quality and safety performance. At present, the volume of a company is 9.3m3 The manufacturing process of fuel tanker is analyzed and researched.

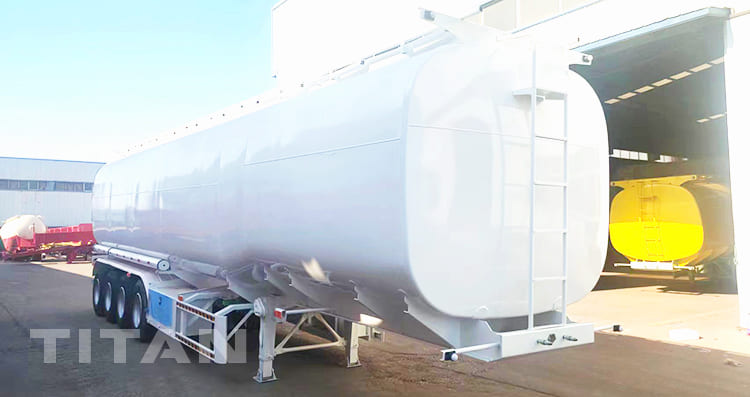

4 Axle 60000Ltrs Fuel Tanker Trailer will be sent to Mozambique
1. Correction of materials
The material may be deformed during storage, transportation or hoisting. Secondly, the material may be deformed during the blanking and welding process. These deformations must be corrected, otherwise the product quality will be reduced. There are generally three ways to correct the steel, namely: Mechanical method, manual correction method and flame method.
2. Material cleaning
Material cleaning is to clean the oil, rust, or oxide on the material, otherwise it will affect or even waste normal production. The cleaning method mainly includes mechanical method: sandblasting.
3. Cutting
According to the requirements of the drawings, the shearing machine is used for cutting and blanking. The shearing machine applies shearing force to the metal sheet by means of the moving upper blade and the fixed lower blade. To ensure penetration, use a hand-held beveling machine to make a V-bevel on the welding side.

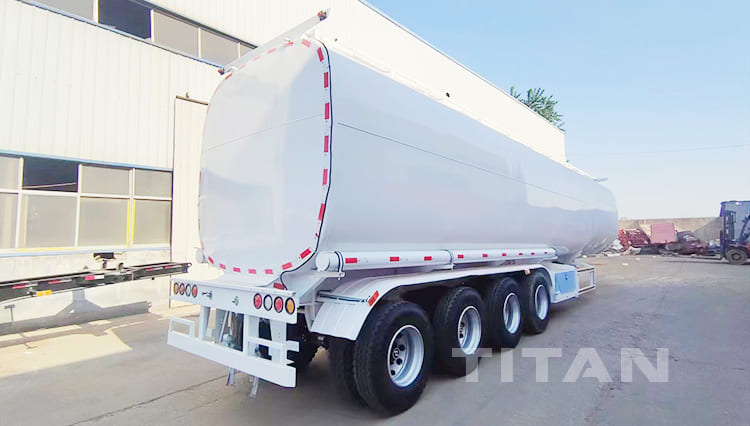

4 Axle 60000Ltrs Fuel Tanker Trailer will be sent to Mozambique
4. Flat plate welding
The main work is longitudinal seam welding. In order to facilitate the placement of the front and rear plates, the universal roller bracket is used as the flat plate welding platform. The flat plate automatic welding machine is calculated at a speed of 6mm/s. Considering the splicing positioning time, a welding seam takes about half an hour. . After welding, use a flipping machine to flip the board and temporarily store it, and carry out repair welding, grinding and cleaning.
5. Scribe and cut off excess material
After the flat plate welding is completed, the outline should be drawn according to the expanded size of the tank, and the remaining material should be cut off.
6. Rolling, rounding, longitudinal seam welding
After the flat plate is welded, it is rolled into an elliptical cylindrical tank by a three-roll plate rolling machine, which is stronger, safer and more durable. When the reducer drives the two lower rollers to rotate in the same direction, the upper roller is driven by the hydraulic cylinder to move downward to provide pressure Bends the material. After the coiling is completed, a rounding machine is used to complete the welding of the closed longitudinal seam of the tank body after rounding. After welding, the welding seam is polished and the manhole is opened.
4 Axle 60000Ltrs Fuel Tanker Trailer will be sent to Mozambique
7. Installation and welding of partition board
Move the partition board to the specified position, spot welding, and then weld. This model needs to place two partition boards. According to actual experience, the installation time of the partition board needs 1 hour per piece.
8. Head installation and welding
The front and rear heads of the tank are cut with a plasma numerical control cutting machine. In order to ensure the welding quality, the installation of the head requires special tooling guarantee. Finally, the annular gas shield is used for cover welding.
In order to ensure the stability, safety and high strength of the tank body, the formed tank body needs to be tested for leaks with high-pressure gas, and then the tank body is subjected to the overall shot peening process to eliminate weld stress and overall rust removal.
Through the video below, you can learn about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer）And the process, testing, packaging and customer feedback, etc.
