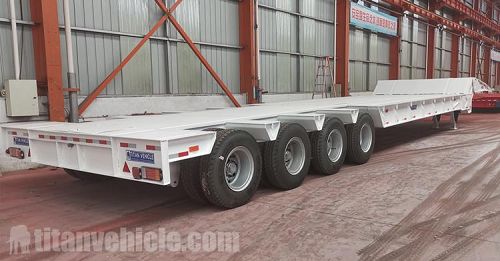

4 Axle Folding Gooseneck Trailer for Sale Front Load In Qatar
The Qatar client runs a transport company and needs a gooseneck trailer to transport Excavator and other large equipment. Because customers have certain requirements for efficiency. Therefore, folding gooseneck trailer is recommended.
Compare to the removable gooseneck trailer, a folding gooseneck trailer can increase the efficiency of your transport fleet, because when the prime mover(tractor) finished one job, it can be detached from the trailer and go for another transport job. And the operator can load and unload cargo simultaneously without the presence of the prime mover.
Folding gooseneck trailer is a kind of front-loading trailer, different from the detachable gooseneck trailer, you can load the trailer from the front of the lowbed trailer but no need to dismantle the gooseneck from the trailer body. It is widely used for transporting construction machines no matter they are with tires or crawlers.

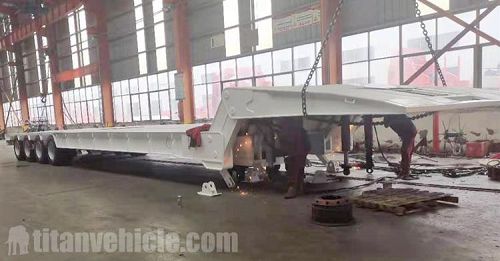

Factory Show of 4 Axle Folding Gooseneck Trailer
Lowbed trailer with a foldable neck makes you move construction machines easily even without crane lifting. When unhooking from the prime mover, the semi trailer’s neck could be folded to the ground as a shallow slope for the crawler cranes and other machines to drive on. It is one of the popular front-loading trailers, another one is a detachable gooseneck trailer.
Conventional lowboy trailer is normally equipped with hydraulic ramps at the rear side of the trailer, which can help with the loading of the cargo machines. Because of the height of the trailer, the ramps are steep. If the cargo is too heavy, it would increase risks during loading by the hydraulic ramps.
To resolve above problems happened with rear loading method, we have two types of the front-loading trailer to handle them.
The gooseneck is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the trailer with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, it’s shallow and stable, which could effective solution for cargo loading.

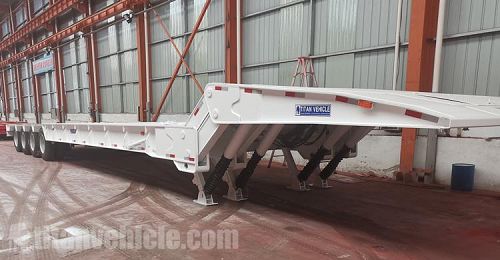

4 Axle 60 Ton Folding Goosenecl Trailer for Sale Manufacturer
When the neck is erected, using locking pins to lock the front part of the 4 axle folding gooseneck trailer and the trailer chassis. The semi-trailer is connected with the tractor, lowering the cargo platform to touch the ground. Unhook the traction base with a traction pin
Drive the tractor off the trailer, control the hydraulic cylinders and take off the locking pins to unfold the neck on the ground.
The unfolding gooseneck become a shallow slope for the cargo loading, after the loading process, just reverse the above steps to fold the neck and connect the prime mover

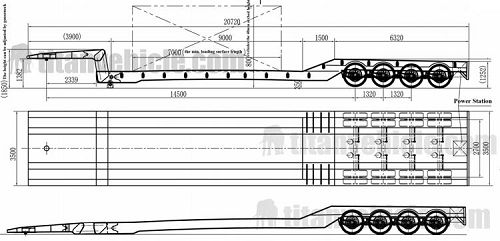

Drawing of 4 Axle Folding Gooseneck Trailer
You can learn about different types of side wall semi trailers(like removable gooseneck trailer , removable gooseneck trailer for sale , 4 line 8 axle removable gooseneck trailer for sale in Nigeria). And the process, testing, packaging and customer feedback, etc.
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
