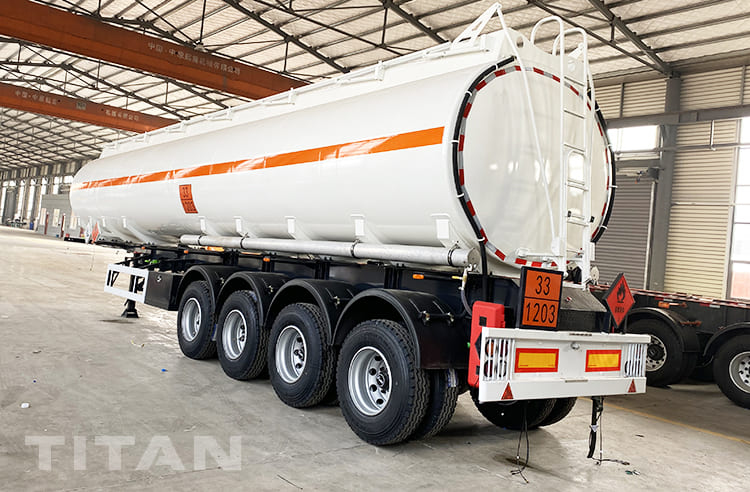

4 Axles Petroleum Tanker Trailer will be shipped to Uganda
Ugandan customer has purchased our semi-trailer products before, and he has previously purchased a container flatbed trailer for container transportation. After he used the container flatbed trailer for a period of time, he specially told us that he was very satisfied with the semi-trailer, and the tires were not worn out. So, when the Ugandan customer had the need to transport crude oil this time, he immediately contacted us titan-vehicle. Our sales manager warmly received him. After understanding the customer's specific transportation needs, the sales manager recommended suitable tanker trailer products to him. The customer finally chose to buy this 4 axles petroleum tanker trailer.
Now, after the factory's production and processing and a series of rigorous tests, the 4 axles petroleum tanker trailer is about to be packaged and shipped, and it is believed that it will soon be delivered to Ugandan customer.
Now, let's take a look at the advantages of TITAN petroleum tanker trailer and some tips before you buying a petroleum tanker trailer.

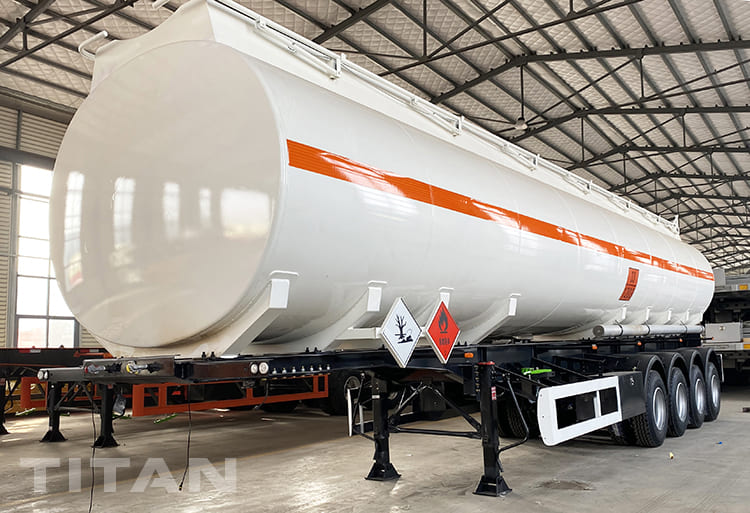

4 Axles Petroleum Tanker Trailer will be shipped to Uganda
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
6. The waved board reduces the impact of the liquid on the tanker.
7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.

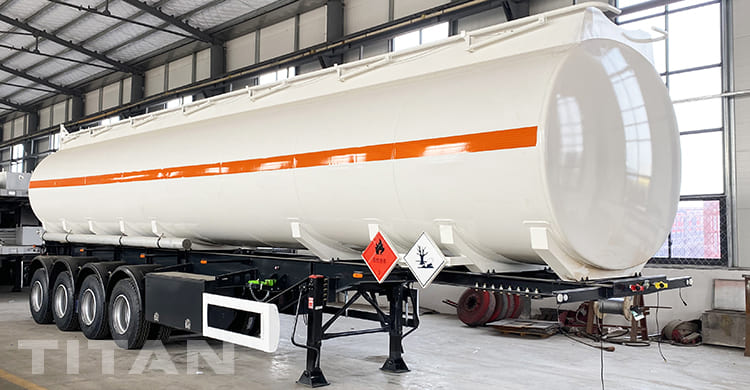

4 Axles Petroleum Tanker Trailer will be shipped to Uganda
1. Subsea valve
The subsea valve, also known as the emergency shut-off valve, is installed at the bottom of the tank and is used when filling and refueling. It is easy to operate, time-saving, safe and environmentally friendly.
The pressure-balanced subsea valve is used for multi-silo tank trucks, and can be loaded and unloaded separately from different oil tanks. The three-way design simplifies the pipeline, reduces the load, and is easy to operate, safe and reliable.
The pneumatic shut-off valve is installed at the bottom of the tank body of the oil tanker and can be refueled. The internal pressure of the valve is small and the flow rate is large. There is a cut-off groove on the flange of the valve body. If the force is too large, the body pipeline and the tank will be automatically disconnected, while the automatic centering plunger and durable spring will remain sealed, and the medium in the tank will not leak, thus ensuring the safety of the tank. When there is no air source or cannot be opened due to other reasons, the cylinder piston rod can be folded and opened manually.
2. Oil and gas recovery valve
The oil and gas recovery valve is a device that recovers the oil and gas generated when loading and unloading oil. It can be directly installed on the top tank of the tanker or on the manhole cover. It can be connected to the bottom of the tank through a push rod. The valve is opened and closed by mechanical linkage, and its opening and closing can also be controlled by the air source.

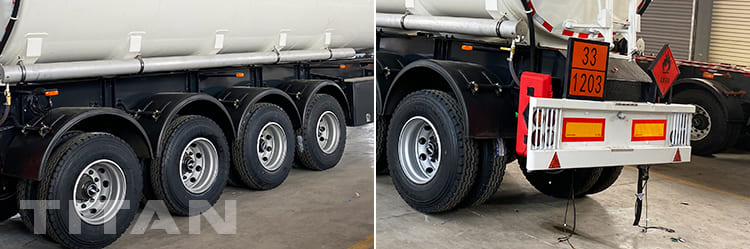

4 Axles Petroleum Tanker Trailer will be shipped to Uganda
The oil and gas recovery valve can recover all the oil and gas produced by the volatilization of oil during loading and unloading into the oil tank in the reservoir area, avoiding the leakage of oil and gas, and condensing and reusing the oil and gas through other oil and gas recovery devices, so as to achieve the purpose of energy saving and environmental protection.
Functions and Features:
1) When the oil tank of the tanker is filled, the oil and gas recovery valve is opened, and the rising liquid level pushes the oil and gas upward, and returns to the oil tank in the reservoir area through a series of oil and gas recovery systems.
2) When the tanker is unloading oil, the recovery valve allows the recovered gas to enter the tanker tank. In systems without vapor recovery facilities, allow air to enter the tanker tank.
3) High airtightness ensures the safety of tanker transportation.
4) Reasonable valve body design ensures high efficiency of oil and gas recovery.

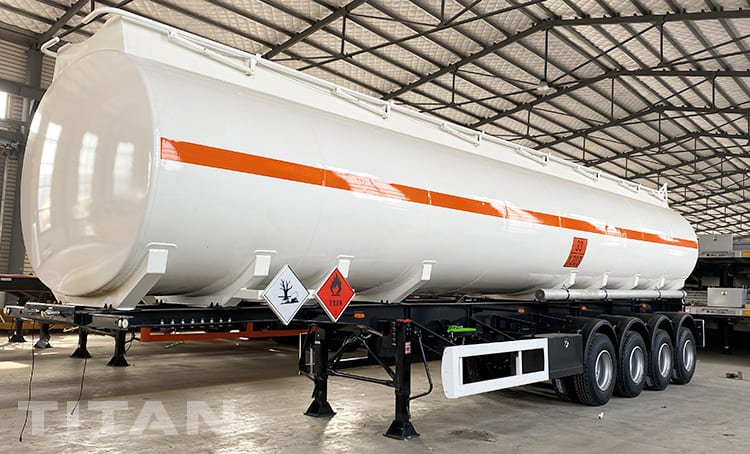

4 Axles Petroleum Tanker Trailer will be shipped to Uganda
3. Oil and gas recovery joint
The oil and gas recovery system of the gas station is composed of a flame arrester breathing valve, a pipeline flame arrester, a three-way floating ball valve, a gas recovery joint, a gas recovery quick joint, etc. The oil and gas produced in the process is recycled and reused, avoiding the diffusion of oil and gas.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
