40 Ton Tri Axle Side Dump Trailer for Sale in Nigeria
This time, the Nigeria customer got to know our company TITAN Vehicle through the introduction of a friend. The Nigeria customer just planned to buy a side dump trailer, so the Nigeria customer found us and showed the purchase intention. Our sales received him immediately. Nigeria customers put forward their specific needs for the side dump trailer. Our sales gave customers professional advice. After constant communication between sales, customers and factory technicians, the production of 40 ton tri axle side dump trailer was finally decided on various details.
Now, after the factory's processing and production, the 40 ton tri axle side dump trailer has been fully produced and will be packaged for delivery. I believe it will soon be delivered to Nigeria customers.
The following are the dimensions of this 40 ton tri axle side dump trailer, let's take a look.

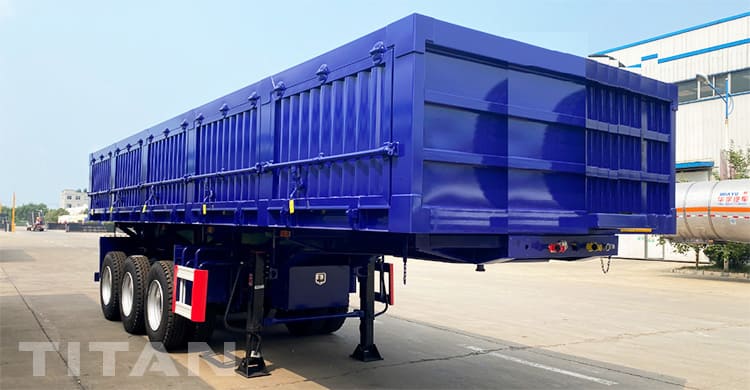

40 Ton Tri Axle Side Dump Trailer for Sale in Nigeria
Brand: 40 ton tri axle side dump trailer
Chassis: Heavy duty and extra durability designed H beam
Axle: 3 axles
Tire: 12 units
Suspension: Mechanical suspension
Lifting system: Side lifting
Kingpin: 3.5’’ bolt - in king pin 90
Landing gear: JOST
Braking system: WABCO
Accessories: One standard tool box , one rocker handle , one Shaft wrench
Here are some tips for buying a side dump trailer for the first time.

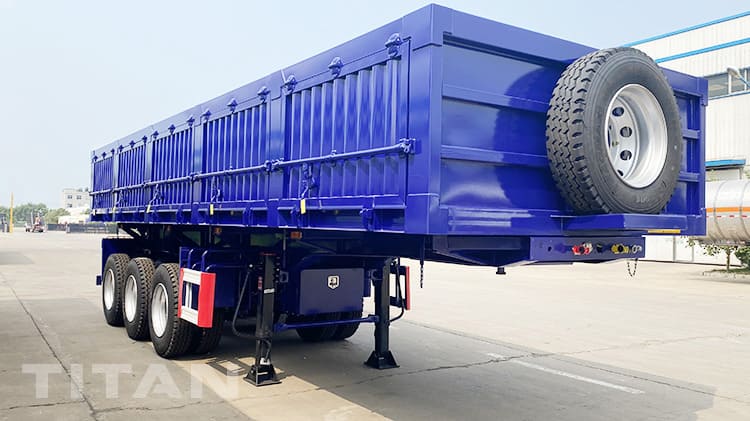

40 Ton Tri Axle Side Dump Trailer for Sale in Nigeria
The most critical part of the side dump trailer is the specifications of the main beam, hydraulic system and diagonal braces. Users must pay attention to the bearing capacity of the main beam when purchasing a side dump trailer. Try to choose a famous brand for the hydraulic roof, and pay attention to the diagonal braces. Manufacturers welders as well as reinforcement.
1. Specifications of main beams:
Due to the uneven force during rollover, the importance of the main beam to a trailer is self-evident. The main beam of a side dump trailer is generally larger than that of a van with the same load. Choose a larger size.
1） It is the frame of the side dump trailer. On the flat road, there is a sub-frame. The force on the frame is the same as that of the ordinary van, but the force on the frame is uneven when it rolls over. The requirements are higher than ordinary vehicles;
2） The goods pulled by the side dump trailer are generally heavy goods such as steel, stones, coal blocks, etc., and also have higher requirements on the bearing capacity of the main beam.

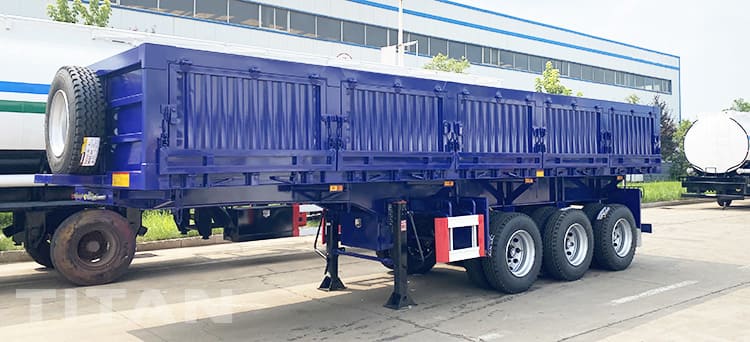

40 Ton Tri Axle Side Dump Trailer for Sale in Nigeria
2. The number of hydraulic tops depends on the tonnage and the support should be firm
The hydraulic top is an important part of the side dump trailer. According to the different load tonnage, there are generally 110, 125, 130, 150 and other diameters. Generally, the standard load does not exceed 60 tons with 110 5+1 (5 lifting cylinders, one Shifting cylinder) or 130 of 5+1; heavy load 80-120 tons generally use 6+1 or 7+1 of 150 cylinder. The displacement top generally uses a 160 or 180 cylinder.
The hydraulic top bracket carries a large part of the weight of the cargo when it is lifted, and the firmness of the bracket is very important. For the hydraulic top and the sub-frame, the shaft at the connection should be well protected, otherwise it will be easy to bend.

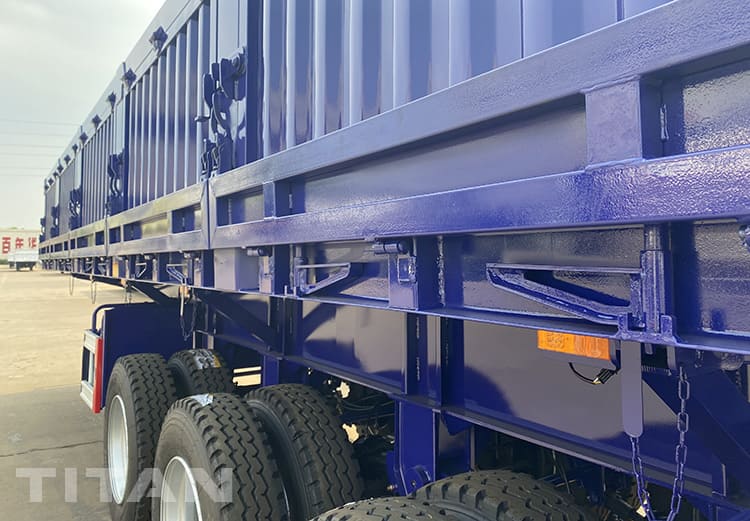

40 Ton Tri Axle Side Dump Trailer for Sale in Nigeria
3 the reinforcement of diagonal braces is very important, and the more fulcrums, the higher the reliability
Diagonal bracing, when it rolls over, most of the weight of the goods is borne by the diagonal bracing, so the firmness of the diagonal bracing is very important. Once the diagonal bracing fails, it is easy to cause a rollover accident, so the reinforcement of the diagonal bracing is very important. The number of diagonal braces should be reasonable, of course, the more the better, the more rollover diagonal braces, the smaller the force each fulcrum bears, and the higher the reliability.

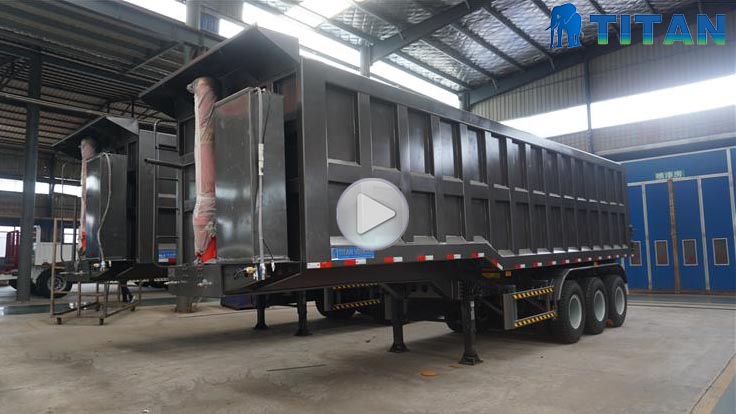

Through this video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
