6 Units 40Ft Tri Axle Flat Bed Trailer will be sent to Togo.

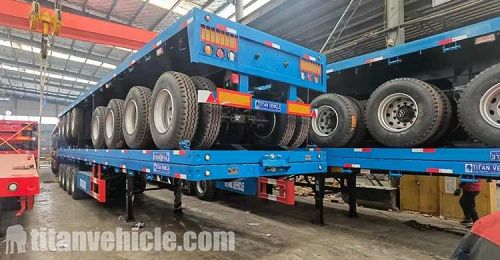

40Ft Tri Axle Flat Bed Trailer for Sale In Togo
The agent from Togo purchased 6 units of tri axle flat bed trailer. In fact, the customer bought a 3 axle flat bed semi trailer of his own in 2020. The customer is very satisfied with TITAN’s tri axle trailer. Many local customers have seen the customer’s semi trailer. , Said that he helped purchase at TITAN, thinking that many local customers did not understand the import process. In the next year or so, customers gradually became TITAN's agents. Below are the pictures of the package and delivery.

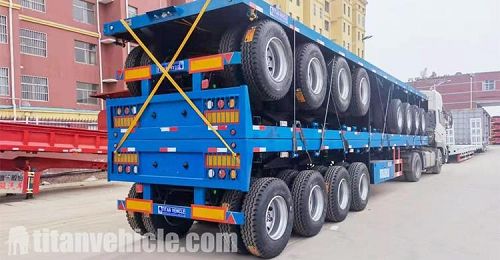

Tri Axle Flat Bed Trailer for Sale Near Me Manufacturer
1. Truck Trailer Kingpin of 48 ft flatbed trailer for sale
The 90 # traction pin represents the diameter of the traction pin is 90mm, and the material is mainly chromium alloy. The tri axle flatbed trailers for sale near me and the tractor are all connected by it. It is connected to the traction seat of the main vehicle and also bears all the traction. It is an important component.
At present, the traction pins on the market are mainly divided into 4 types, assembly 50, assembly 90, welding 50, welding 90, users should choose according to different models and actual use.

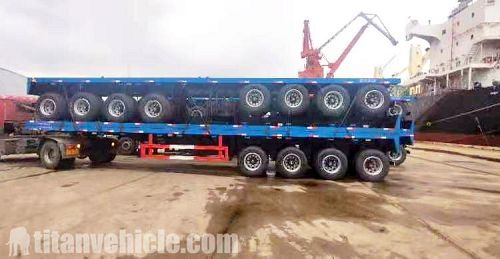

Package of 40Ft Tri Axle Trailer for Sale Manufacturer
2. Tri Axle Flatbed Trailer support device
Commonly known as an outrigger. Using the principle of "standing timber jacking", it is located at the front end of the tri axle flatbed trailer for sale frame for use after the container semi trailer is separated from the tractor. Classification of outriggers: Single-acting outriggers are operated separately on both sides, there are two cranks, and each gear has a car gearbox.
Linked outriggers are made from both sides while operating. There is only one crank, which is composed of one gearbox and one without.
The main components of the outrigger are two-speed gearbox, support sleeve, support rod, drive screw, and support plate. The structure is very simple and the function is very important.

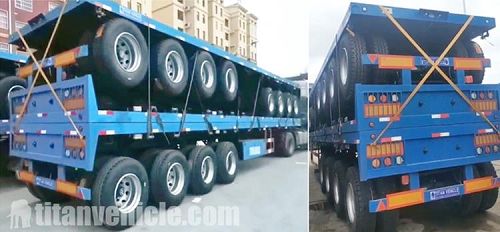

Details of Tri Axle Flat Bed Trailer for Sale
3. Suspension of 3 axle flatbed trailer
Steel plate suspension is our common leaf spring, its full name is series-connected leaf spring balance suspension. It is mainly composed of leaf springs, suspension bearings (commonly known as lifting lugs), connecting rods, U-bolts and other parts. The longitudinal force of the car body falls directly on an axle. The biggest advantage of this kind of suspension is low price, good reliability and easy maintenance.
At present, more than 80% of ordinary tri axle flat bed trailers in China use leaf spring balanced suspension.
The most obvious feature of 40ft flatbed trailer for sale air suspension is its airbag-type air spring. The40ft trailer for sale air spring itself is relatively light in weight, the friction of the air medium in the airbag is small, there is almost no noise during operation, and its life is 2-3 times that of leaf springs.
However, when an air spring is used, a rod system that can transmit various forces and moments other than the vertical force must be provided, so the suspension structure is complicated; in addition, the air spring has strict requirements for sealing, and its cost is also high.

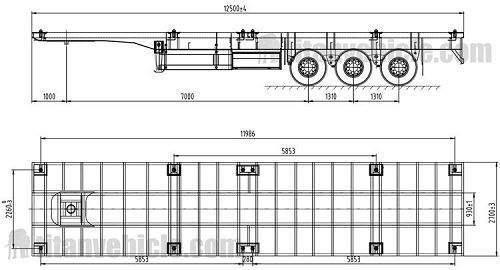

Drawing of Tri Axle Flatbed Trailer
4. Braking system
Brake air chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the flatbed trailer for sale.
Brake valve is used to control the braking of trucks or tri axle flatbed trailer. It is suitable for flatbed tri axle trailer with dual-line brake system, and parking or emergency brakes are air-braking brakes. It has the function of automatically causing the 20 ft flatbed trailer brake when the control pipe connection of the trailer brake system is broken or leaking.
You can download video, you can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

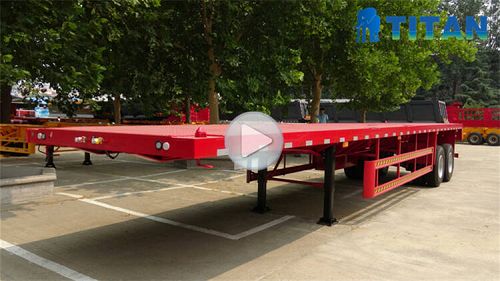

Flatbed Semi Trailers Video
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
