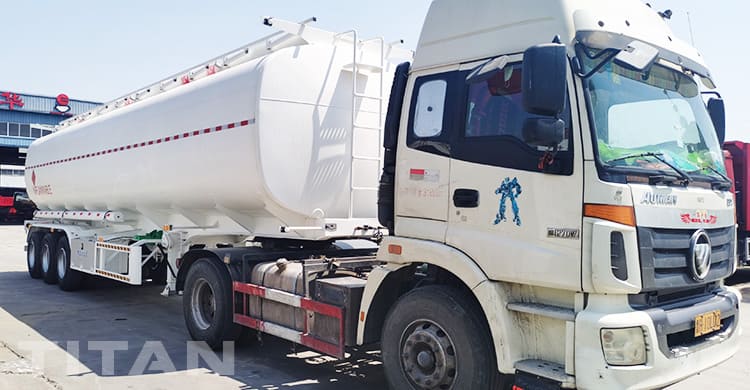

45000Ltrs Crude Oil Tanker Trailers for Sale in Zimbabwe
Zimbabwe customer saw our semi-trailer in Zimbabwe. The semi-trailer was printed with the logo of titan vehicle. In addition, the customer had heard that a friend had bought our fuel tanker before, which aroused the interest of Zimbabwe customer. The Zimbabwe customer asked the sales for some production details of the oil tanker trailer product due to the need to transport crude oil. This time, the Zimbabwe customer's request was somehow special. The customer requested that the oil tanker be divided into 4 compartments, each with a capacity of 11,250 liters, and the total tanker capacity was 45,000 liters. After consultation with factory technicians, TITAN provide customer with the perfect production plan. The customer ended up ordering a 45000ltrs crude oil tanker trailer.
After a series of rigorous tests, the oil tanker is well sealed. Now, the 45000ltrs crude oil tanker trailer has been packed and sent to the port. Within a week, Zimbabwe customer can receive the crude oil tanker trailer and put it into use.
Now , let’s take a look about how to maintain the crude oil tanker trailer and the specification of this 45000ltrs crude oil tanker trailer.

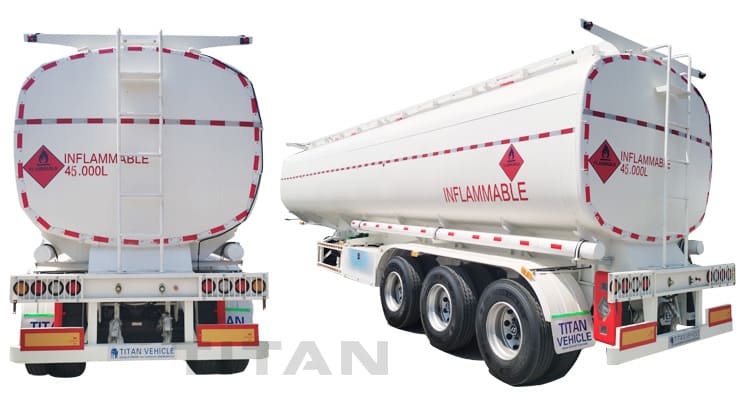

45000Ltrs Crude Oil Tanker Trailers for Sale in Zimbabwe
1. The filter should be removed and washed frequently.
2. Oil tanks and piping systems should be cleaned regularly.
3. The safety valve should be checked and cleaned frequently.
4. Regularly check whether the joints of the pipeline system are well connected and the sealing is reliable.
5. After each work, the handle of the ball valve should be pulled to the closed state.
6. Generally, the ball valve should not be in a half-open state, so as not to damage the sealing seat.
7. After each work, cover the inlet and outlet outer end caps (blocking covers) and both ends of the oil hose (blocking covers) in time.
8. The oil loading should not exceed the rated loading quality. (Converted by oil density).
9. The power take-off must be disengaged before driving the crude oil tank trailers for sale.
10. Before the operation of the crude oil trailers for sale, the conductive rod must be inserted into the wet soil, the grounding chain should be grounded, and the static electricity should be kept in good condition during the operation.

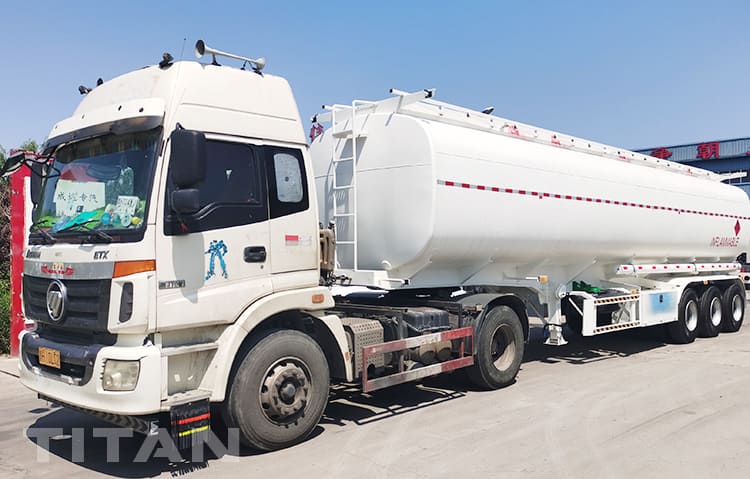

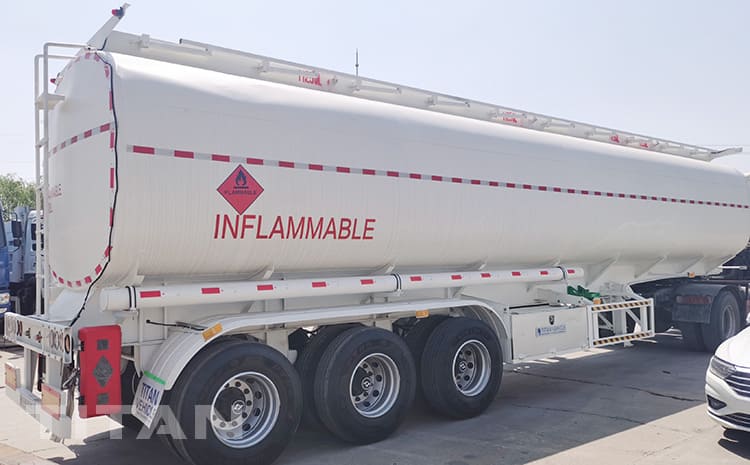

45000Ltrs Crude Oil Tanker Trailers for Sale in Zimbabwe
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 45000 Liters
Tank Body Material: 5mm or 6mm/ carbon steel
End plate: 5mm or 6mm/ carbon steel
Manhole Cover: carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 4 compatments (Optional)
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

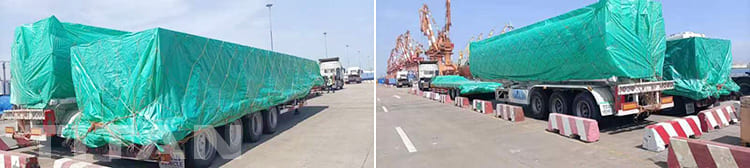

Shippment of the 45000Ltrs Crude Oil Tanker Trailer
Through this video, you can learn about different types of crude oil tank trailers for sale, as well as the process, testing, packaging and customer feedback, etc.
