New 3 Axles Hydraulic Tipper Trailers for Sale in Jamaica
This time, the Jamaica customer learned about our company through the introduction of a friend. After browsing our company's official website, the Jamaica customer thinks that we are professional semi-trailer producer and supplier. So the customer left an inquiry about the hydraulic tipper trailer on our official website titan-vehicle. Our sales immediately got in touch with the customer, and after inquiring about the specific needs of the Jamaica customer, the sales recommended this 3 axles hydraulic tipper trailer to him. After comprehensive consideration, the customer purchased two units 3 axles hydraulic tipper trailers.
Now, the 3 axles hydraulic tipper trailers have been fully produced and are ready to be packaged and shipped. They will soon be delivered to Jamaica customers.
Now let's take a look at the advantages of TITAN hydraulic tipper trailer and the specification of this 3 axles hydraulic tipper trailer.

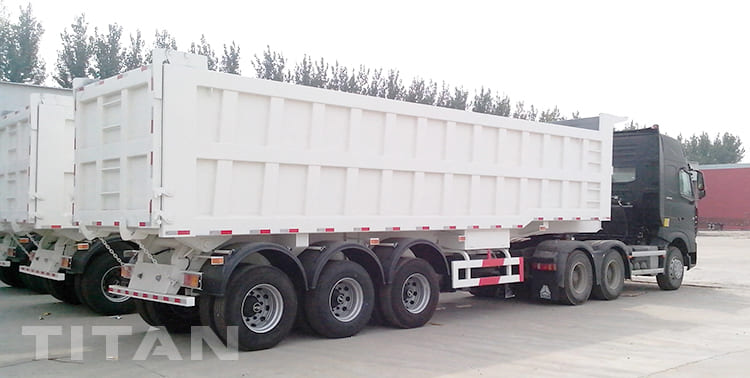

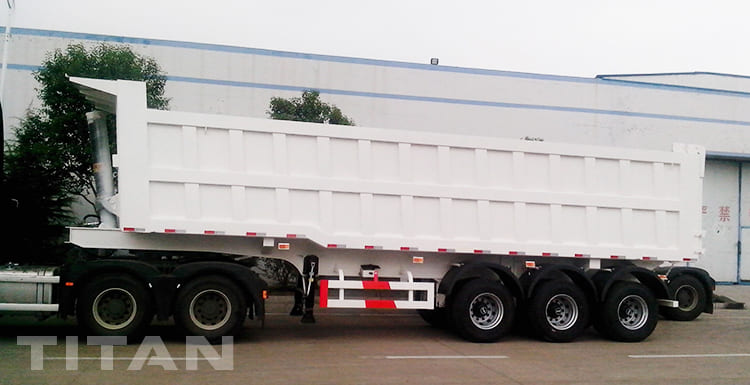

New 3 Axles Hydraulic Tipper Trailers for Sale in Jamaica
1. The hydraulic tipper trailer is suitable for the transportation of bulk granular cargo such as coal, ore, and construction materials, which can effectively improve the efficiency of loading, unloading and transportation. The design of the frame is reasonable, the craftsmanship is good, the box body is made of high-strength cold-rolled corrugated steel plate, no skeleton structure, various heights of the box body, and large loading space. Multi-cylinder lifting, equipped with self-rescue cylinder, has the characteristics of multi-pull, heavy load and so on.
2. The vehicle body is made of high-quality steel, advanced technology, and strict production. The vehicle has a reasonable structure, reliable performance, easy operation and beautiful appearance. Reasonable structure, strong rigidity and strength, used to support the load to slow down the impact. The weight of the whole vehicle is light, and its anti-distortion, anti-vibration and anti-bump capabilities are guaranteed to meet the bearing capacity of different road surfaces.

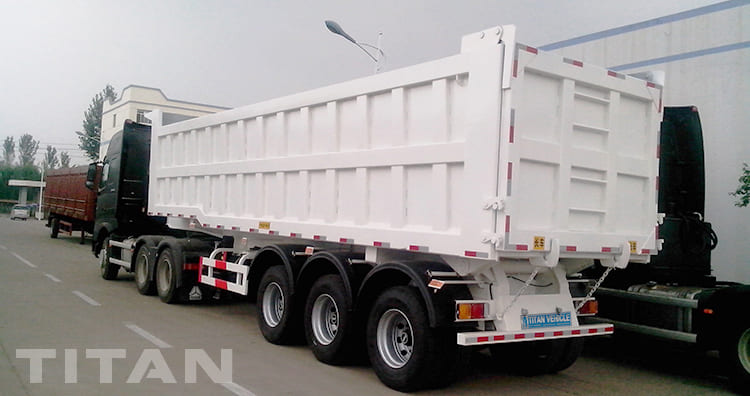

New 3 Axles Hydraulic Tipper Trailers for Sale in Jamaica
3. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation. The main components are processed by advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the axles and leaf springs are precisely assembled by an assembly machine.
In general, the hydraulic tipper trailer is a semi-trailer with an automatic dumping device in the loading part. It has many superior characteristics, which can effectively improve the transportation efficiency of the loader to transport bulk and scattered goods.

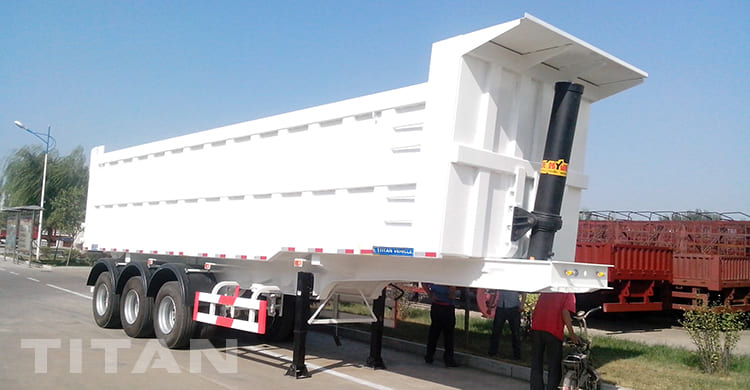

New 3 Axles Hydraulic Tipper Trailers for Sale in Jamaica
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

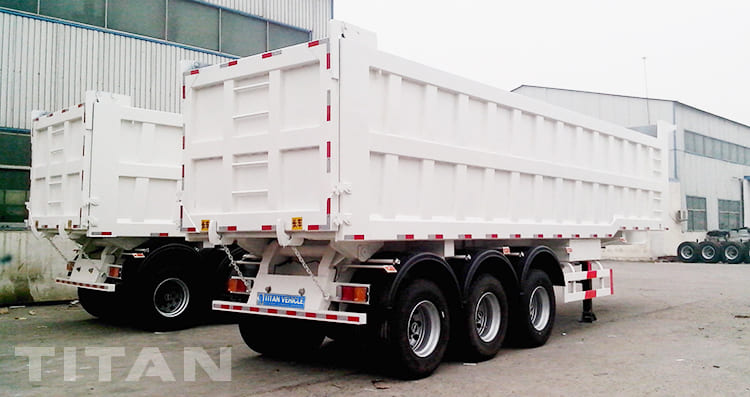

New 3 Axles Hydraulic Tipper Trailers for Sale in Jamaica
You can download video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
