Tri Axles Semi Truck Flatbed Trailer for Sale in Ghana
The Ghana customer has cooperated with TITAN Vehicle for the third time this year and he is an old customer of TITAN Vehicle. This time, the customer wants to buy 3 units semi truck flatbed trailer to transport the containers. Customer have expanded their transportation scale, thus increasing the purchase demand for truck and flatbed trailer for sale. The Ghana customer has some special requirements this time. The customer wants to be equipped with an airbag suspension on the semi truck flatbed trailer for sale. The advantage of the air suspension is that it has a better shock absorption effect and has a longer service life than the ordinary suspension. The disadvantage is that the price is higher than that of the ordinary suspension. . After some negotiation, the Ghana customer finally placed an order for 3 units tri axles semi truck flatbed trailer.
Now, let's take a look at the advantages of airbag suspension and the specification of this flatbed trailer.
Tri Axles Semi Truck Flatbed Trailer for Sale in Ghana
Suspension, also known as suspension, is a general term for all force-transmitting connection devices between the semi-trailer frame and the axle, which is used to transmit the force and torque acting between the wheels and the frame, and the buffer is transmitted from the road to the frame. Or the impact force of the body, and reduce the vibration caused by it, so as to ensure that the car can run smoothly.
Also known as airbag suspension, its most notable feature is the airbag-type air spring. Compared with other suspensions, the air suspension has a better cushioning force, which can effectively protect the cargo and improve driving comfort.

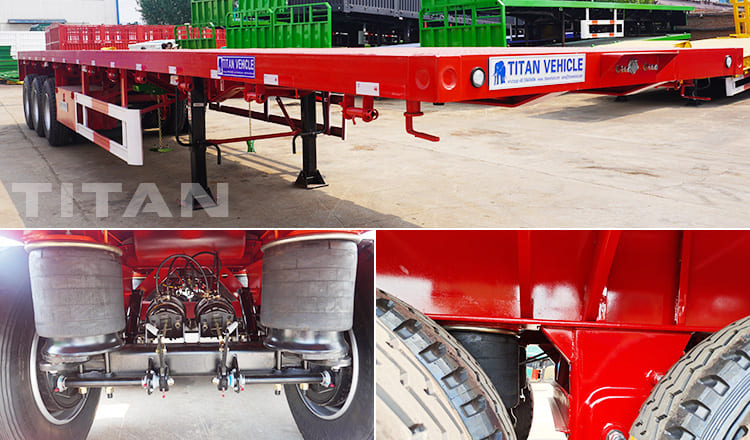

Advantages of air suspension
1. Good shock absorption effect. Compared with the traditional leaf spring, the air bag is obviously softer and more comfortable. It forms a soft connection between the frame and the axle, and the bumps and shocks from the road can be greatly alleviated, in addition to enhancing the driving.
2. Reduce the load stress. The compressibility of the air enables the airbag suspension to easily cope with road bumps while reducing load stress, prolonging the service life of axles and semi-trailers, and reducing vehicle costs to a certain extent.
3. Long service life. The weight of the air spring itself is relatively light, the friction of the air medium in the air bag is relatively small, and the service life can reach 2-3 times that of the leaf spring, which helps to save transportation costs.
Tri Axles Semi Truck Flatbed Trailer for Sale in Ghana
Model: tri axle truck and flatbed trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

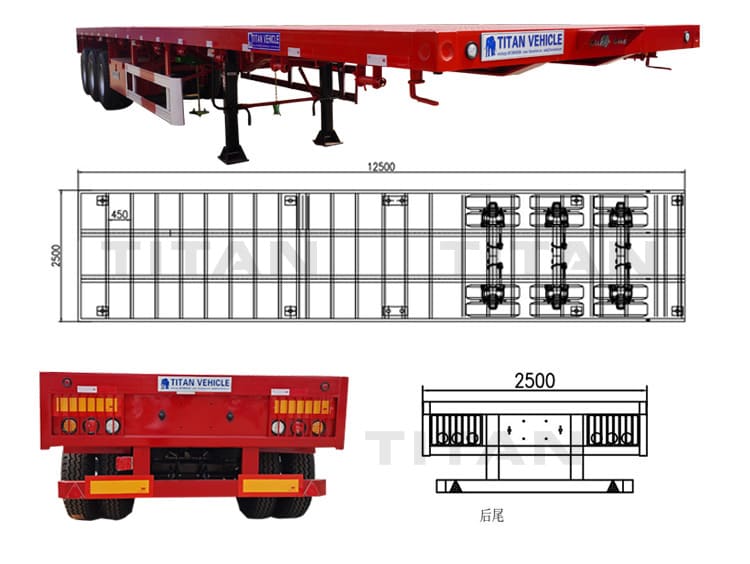

Drawing of the Tri Axles Truck and Flatbed Trailer for Sale
