This 3 axle low bed trailer is designed as a relatively lightweight configuration while maintaining a strong main frame. The combination of Q690 steel longitudinal beams, 3 × 13-ton axles, and a low loading platform provides a practical solution for customers transporting heavy machinery on Tanzanian roads.

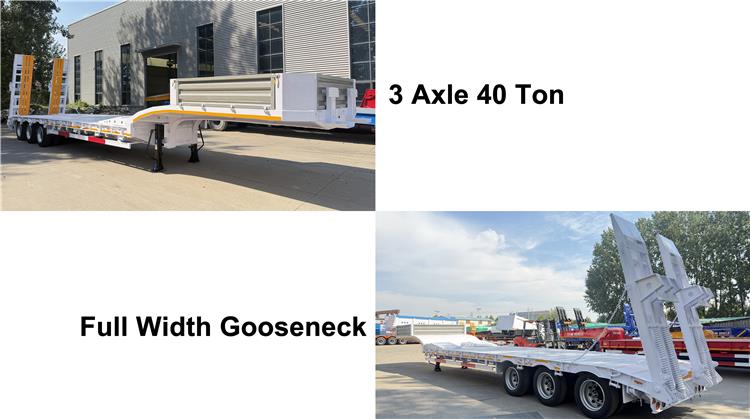

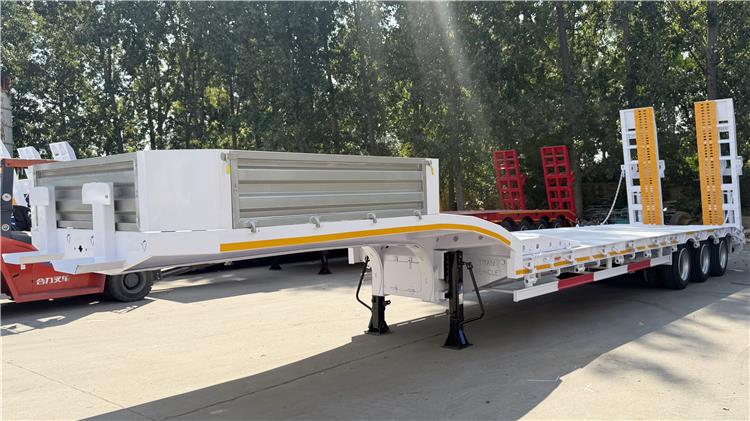

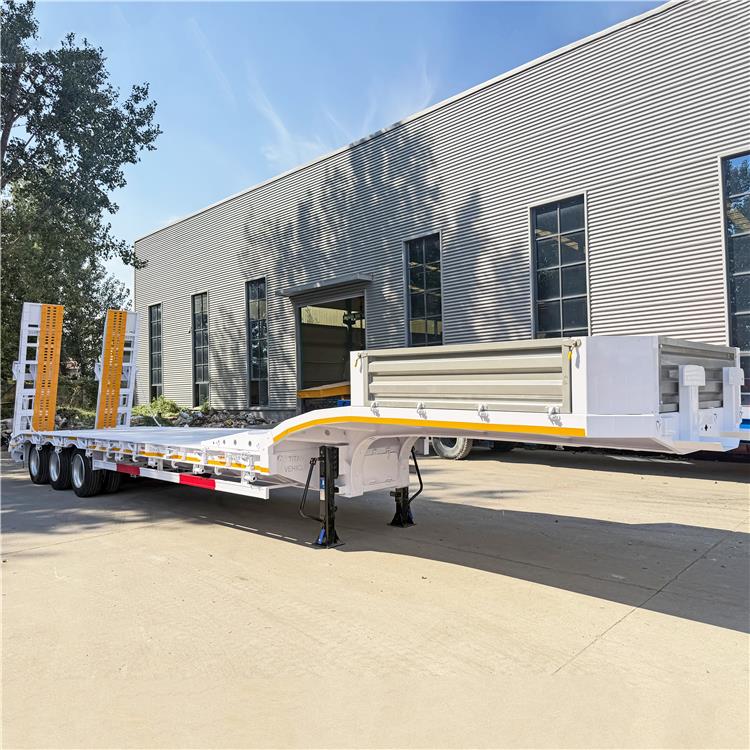

The 2026 New Model 3 Axle 40 Ton Equal Width Gooseneck Low Bed Trailer is a lightweight heavy-duty low bed trailer developed for machinery and special cargo transportation in Tanzania. With a 40-ton rated capacity, Q690 high-strength steel main beams, an equal-width gooseneck, 3 × 13-ton axles, and a low loading platform, this lowbed trailer is designed to balance payload capacity, structural strength, and transport weight.
The trailer is particularly suitable for transporting truck-mounted cranes, buses, forklifts, small road rollers, excavators, construction machinery, and other heavy or oversized equipment. Its lightweight structure can help customers transport heavy machinery while keeping the trailer's own weight controlled, making it a practical option for the Tanzanian transportation market.
2026 New Model 3 Axle 40 Ton Equal Width Gooseneck Low Bed Trailer for Sale In Tanzania
2026 New Model 3 Axle 40 Ton Equal Width Gooseneck Low Bed Trailer for Sale In Tanzania
2026 New Model 3 Axle 40 Ton Equal Width Gooseneck Low Bed Trailer for Sale In Tanzania

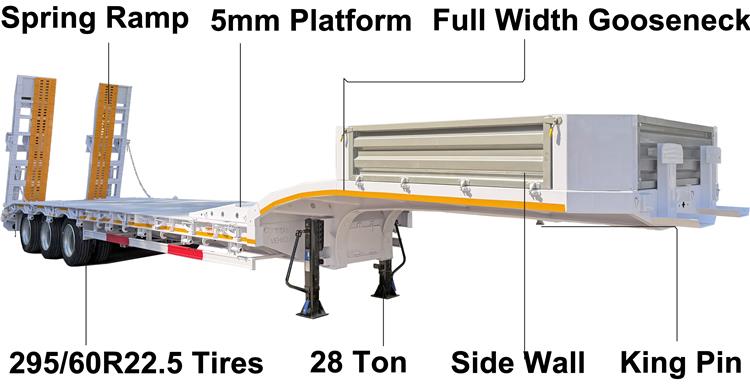

| Item | Specification |
|---|---|
| Trailer Type | 3 Axle Equal-Width Gooseneck Low Bed Trailer |
| Application | Heavy Machinery & Special Cargo Transportation |
| Loading Capacity | 40 Ton |
| Recommended Working Load | Up to 35 Ton for Regular Heavy-Duty Transport |

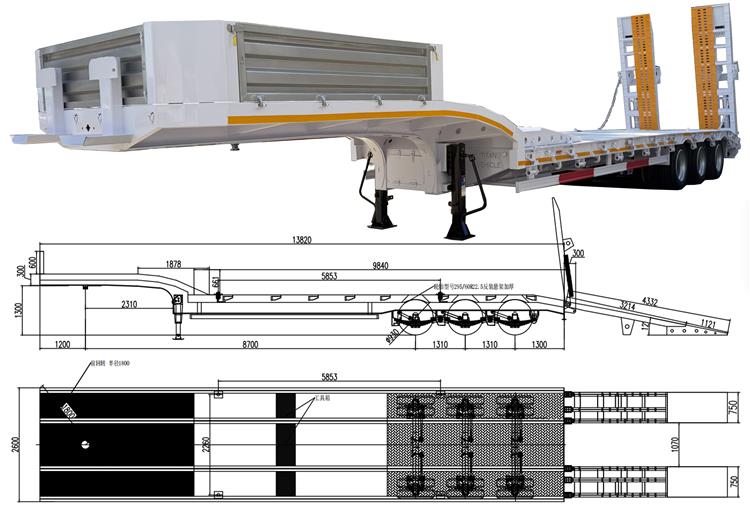

| Overall Dimension | 13,800 × 2,650 mm |
| Standard Dimension | 13,500 × 2,600 × 1,710 mm |
| Main Beam Material | Q690 High-Strength Steel |
| Main Beam Height | 500 mm |
| Platform Plate | 8 mm |

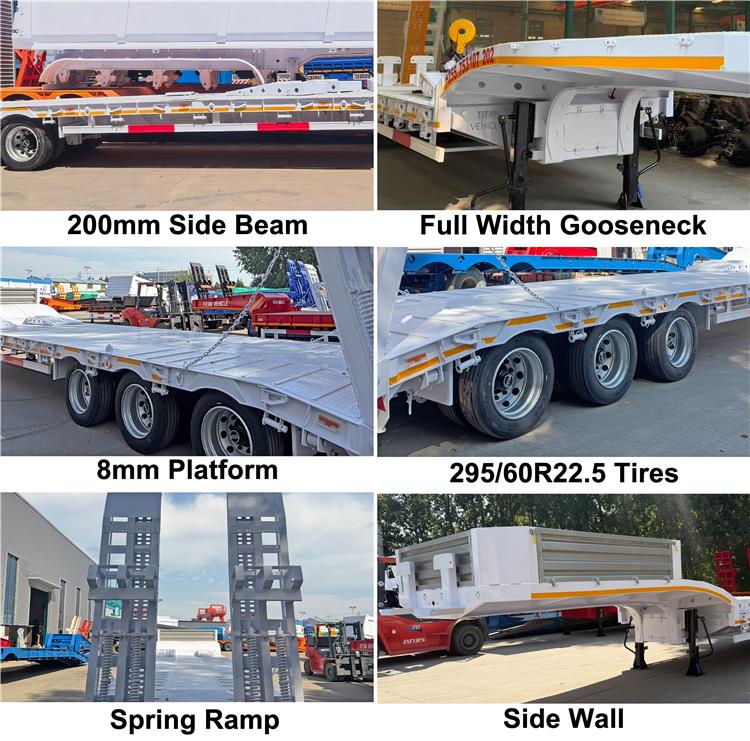

| Side Beam Height | 200 mm |
| Main Frame | I-Beam + Trapezoidal Structural Members |
| Axles | 3 × TITAN 13 Ton Axles |
| Tires | 12 × 295/60R22.5 |
| Kingpin | 90# Assembly-Type Kingpin |
| Gooseneck | Equal-Width Reinforced Gooseneck |
| Ramps | Heavy-Duty Spring Ramps |
| Ramp Capacity | Approx. 28 Ton |
| Toolbox | 1 Toolbox |
| Sideboards | Not Included as Standard |
| Widening Plates | Not Included as Standard |
The main longitudinal beams are manufactured from Q690 high-strength steel, with a beam height of 500 mm. The upper and lower flanges are both 12 mm thick and 180 mm wide, providing a strong structural foundation for heavy-duty transportation.
The main frame uses a combination of I-beam and trapezoidal structural members. This design allows the trailer to maintain sufficient structural strength while controlling unnecessary weight.
This model adopts an equal-width gooseneck design, creating a wider and more continuous front connection between the tractor and trailer platform.
The gooseneck is reinforced to improve structural durability during heavy-duty transportation. The gooseneck section can also be used as an additional loading area for smaller equipment such as a forklift or small road roller, making better use of the available trailer space.
The standard design does not include sideboards or additional widening plates. The front section can be configured with additional structures according to the customer's transportation requirements.
The trailer is designed around a 40-ton loading capacity, while maintaining a relatively lightweight structure.
For practical transportation, the trailer can be configured for different operating requirements. The trailer's own weight can generally be controlled to around 9 tons or less, depending on the final configuration and accessories.
For customers who need to transport equipment such as truck-mounted cranes and buses, controlling both payload and trailer weight can help make better use of the available road and vehicle weight limits in Tanzania.
Always determine the actual allowable payload based on applicable Tanzanian road regulations, tractor configuration, axle loads, and the final trailer specification.
