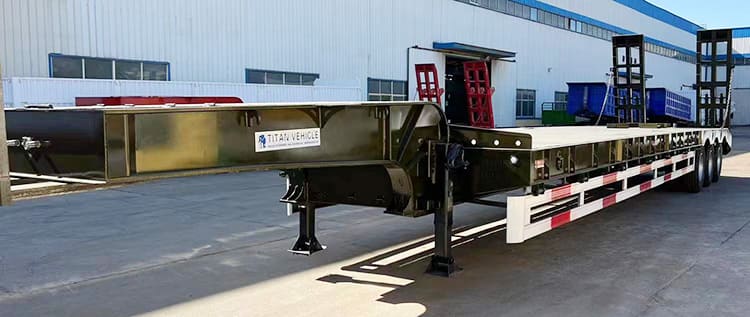

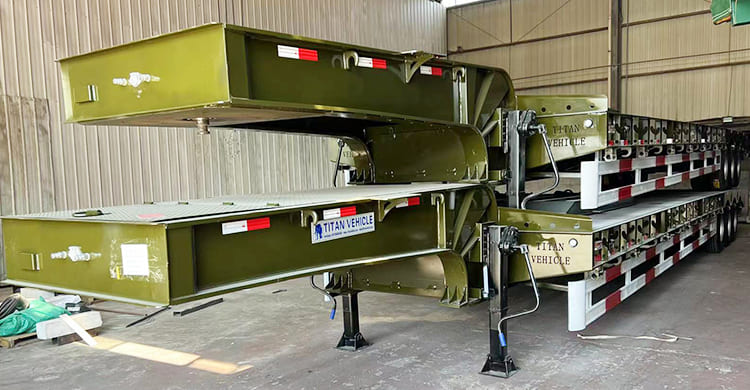

TITAN 40ft low bed trailer has low loading height, so the 40ft low bed trailer has high mobility and endurance. It can move in tunnels, under bridges and arches, and also withstand heavy loads.
40ft low bed trailer is mainly used for transporting goods of non-standard sizes and shapes. The advantage of this type is the absence of a fence. All cargoes are securely attached to the platform using special structures. Oversized weights are moved to low bed trailer along a special ladder.
TITAN could offer customer 40ft low bed trailer with 2/3/4/5/6 axles with different capacity.

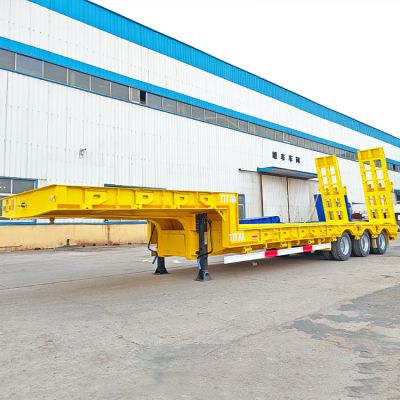

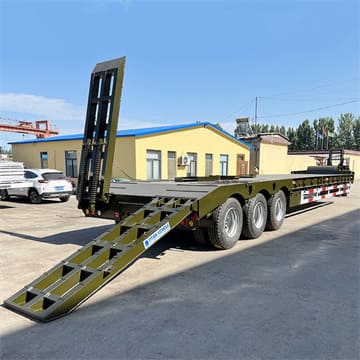

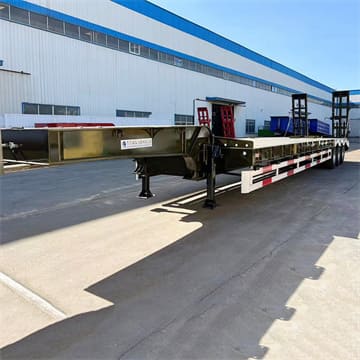

3 Axle 40Ft Low Bed Trailer Dimensions Manufacturers in Sierra Leone
3 Axle 40Ft Low Bed Trailer Dimensions Manufacturers in Sierra Leone
3 Axle 40Ft Low Bed Trailer Dimensions Manufacturers in Sierra Leone
Overall dimension: 16800mm * 3000mm *1710mm
Loading capacity(T): 80T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

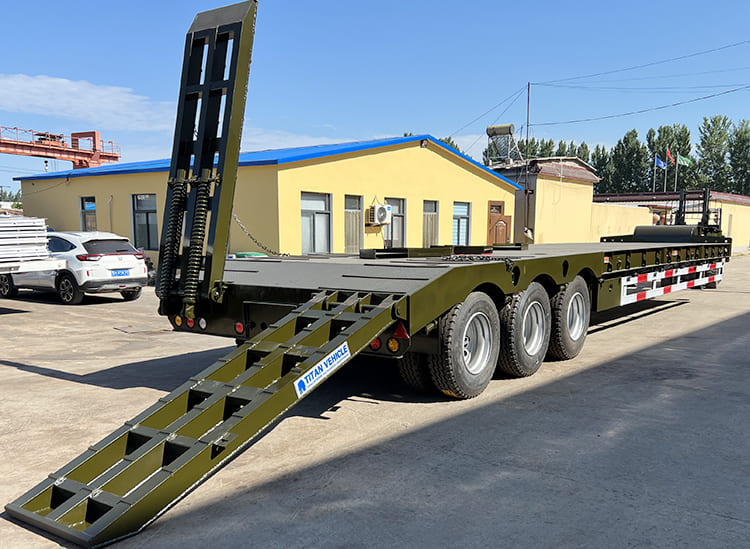

Ramp: Spring type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1.paints. TITAN 40ft low bed trailer with polyurethane paint, high adhesion, high chromaticity, beautiful color, the paint won't come off after five years

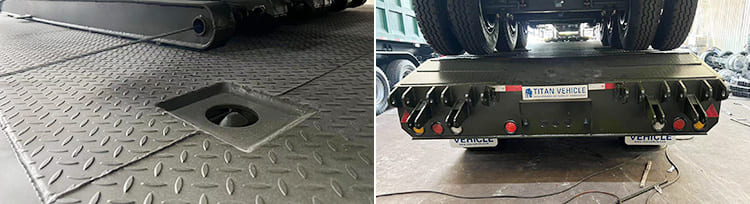

2.floor plate. The floor plate of TITAN 40ft low bed trailer is 5mm diamond plate, which is thicker than the 4mm plate used by other factories. The floor plate is strong and durable, and not easy to be deformed
3.gooseneck double plat. TITAN 40ft low bed trailer main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer in the heavy load when the deformation range is very small, better to use.

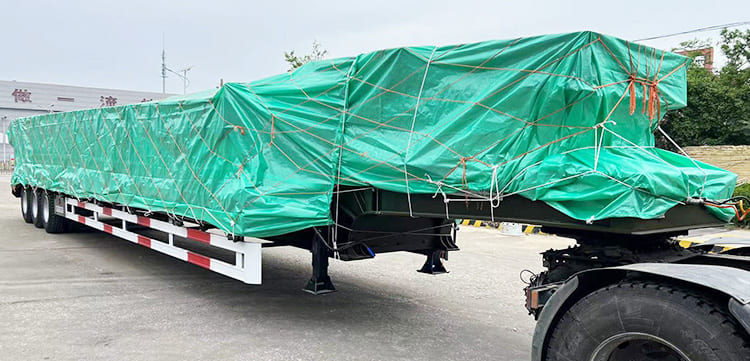

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
