The 3 axle hydraulic low bed trailer has the ability to carry heavy and large equipment through continuously optimized structural design and high-quality accessories. The 3 axle hydraulic low bed trailer overall performance is stable, which can provide reliable protection for the transportation process and meet the transportation needs of Kuwait customers.
The low floor height of the hydraulic low bed trailer plays a key role in lowering the center of gravity of the transported equipment, which helps reduce the risk of tipping or instability, especially during sudden maneuvers or emergency situations. The 3 axle low bed trailer, paired with a strengthened ramp, enhances ease of access for heavy machinery. The design minimizes the need for additional large-scale lifting tools, offering a more efficient solution for loading and unloading. As a result, the low bed trailer significantly cuts down both the operational time and handling costs for customers in Kuwait.

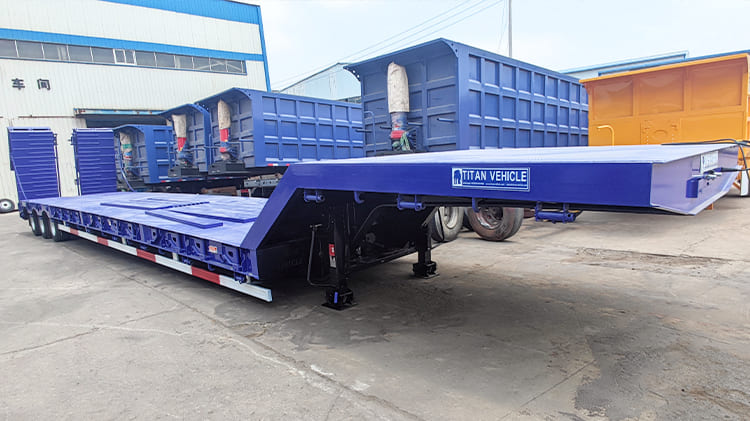

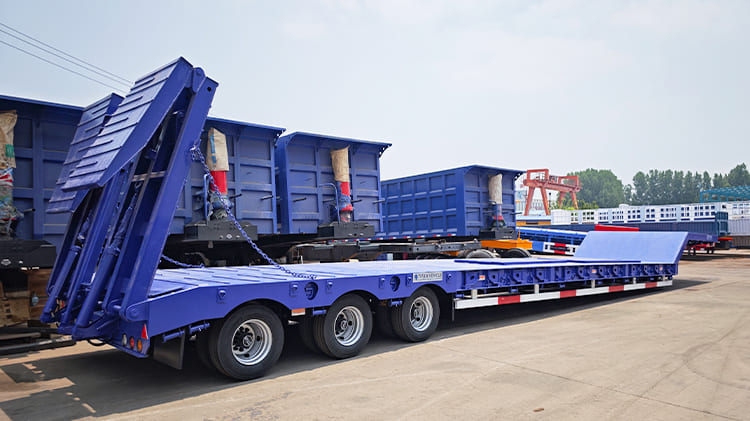

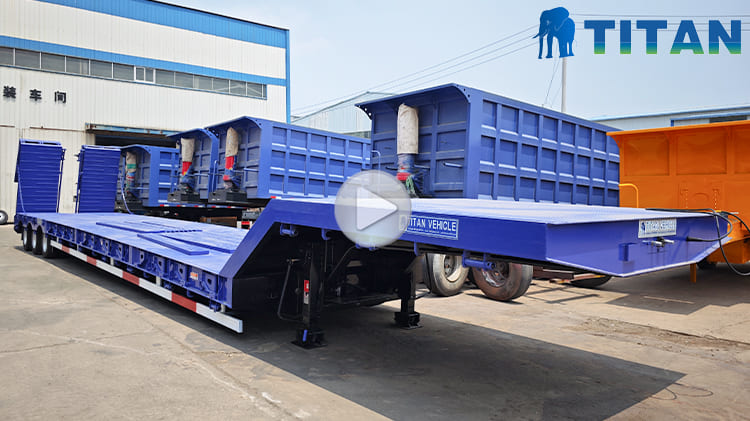

3 Axle Hydraulic Low Bed Trailer for Sale in Kuwait Shuaiba
3 Axle Hydraulic Low Bed Trailer for Sale in Kuwait Shuaiba
Overall Dimension: 16000mm*3000mm*1710mm
Load Capacity: 80 ton
Floor Plate: 5mm thick pattern plate
Side beam: 300mm high, 8mm thick

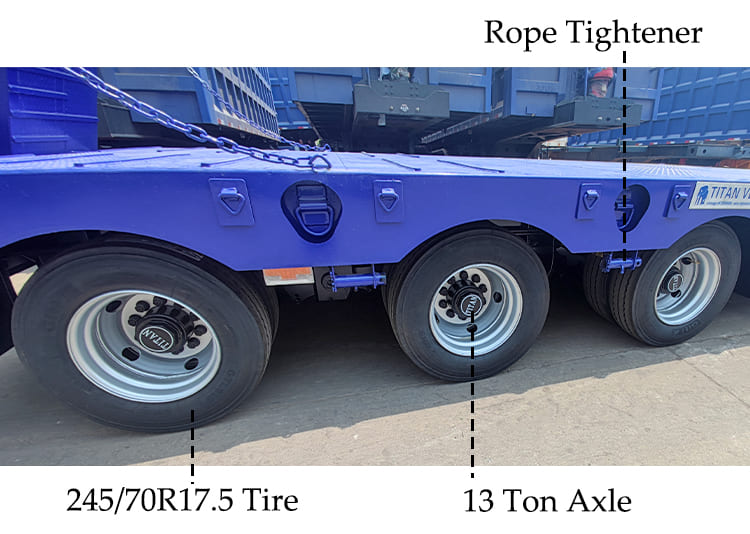

Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 245/70R17.5
Ramp: hydraulic folding ramp

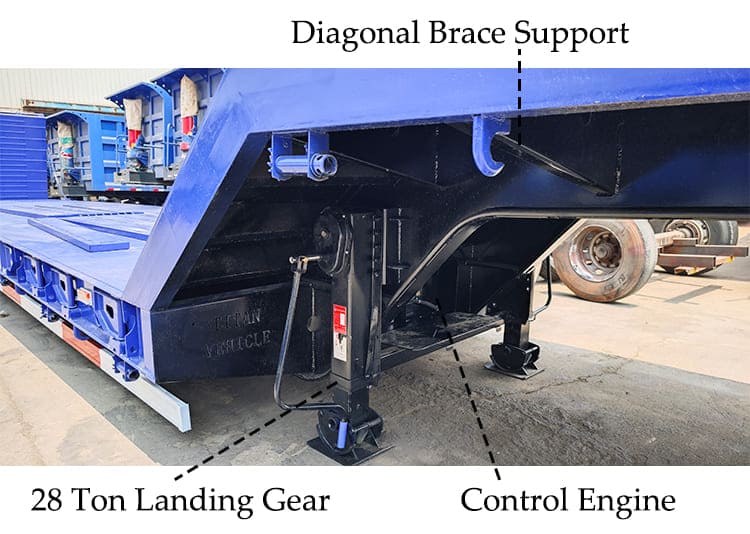

Landing Gear: 28 Ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
The low bed trailer main beam structure, as the core part of the load-bearing system, is made of Q460 high-strength steel, which is far superior to conventional steel in terms of tensile strength and load-bearing performance, providing a solid foundation for the entire hydraulic low bed trailer.
In terms of design, the gooseneck area of the 3 axle low bed trailer beam is reinforced with double-layer vertical plates, and the overall strength of the key part is effectively enhanced through a composite support structure.
In order to reduce the possibility of equipment slipping or deflecting during transportation, the hydraulic low bed trailer floor plate uses a 5mm thick patterned plate, which has stronger wear resistance and compression resistance than the 4mm floor plate commonly used by most manufacturers. The thickening treatment of the TITAN 3 axle low bed trailer not only improves the load-bearing capacity, but also enhances the overall anti-slip effect of the floor plate.
The surface of the patterned plate has a certain concave and convex texture, which greatly improves the friction on the basis of beauty, thereby more effectively preventing the equipment from sliding during transportation. At the same time, a horizontal bar-shaped blocking structure is specially designed at the rear end of the floor plate, which can play an additional role in fixing and protecting large equipment when placing them, and enhance the safety of the whole low bed trailer when loaded.
In terms of the braking system, the low bed trailer uses 16 ton brake pads, which greatly improves the braking reaction speed and can effectively shorten the braking distance by more than 5 meters. To further ensure the service life and safety, the brake air pipe is made of high pressure rubber material with a service life of more than 10 years.
At the same time, the built-in wires of the hydraulic low bed trailer use durable cables with a service life of more than 5 years. The detailed configuration design of the 3 axle low bed trailer not only enhances the braking performance and reliability, but also helps Kuwait customers achieve a good balance between safety and cost control.

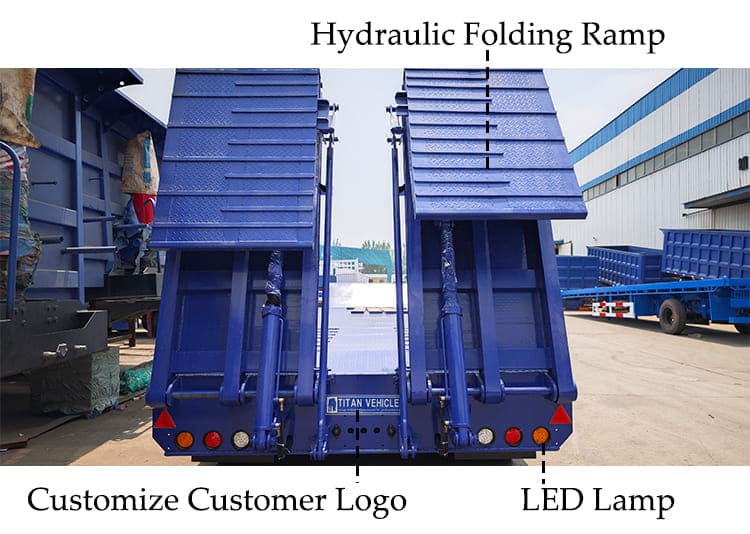

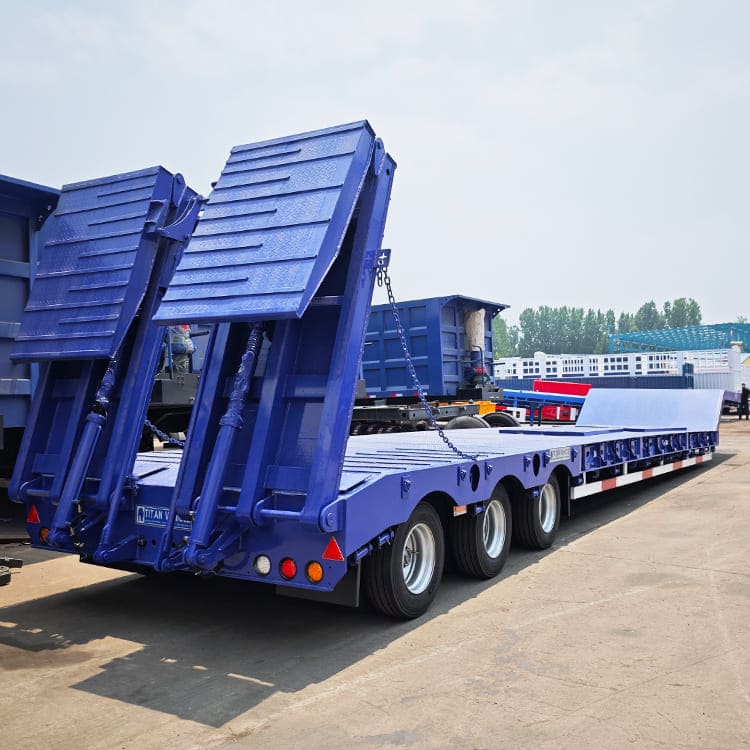

The hydraulic folding ramp is an important supporting component of the 3 axle low bed trailer, which can provide a convenient passage for loading and unloading heavy equipment. The hydraulic folding ramp can adjust the angle and height, making the loading and unloading operation smoother, thus effectively avoiding the tediousness and safety hazards brought by traditional manual operation.
The hydraulic low bed trailer hydraulic ramp can be folded and stored, reducing the occupation of transportation space, making the low bed trailer more flexible during transportation, able to carry more equipment or goods, and improving space utilization.
TITAN hydraulic low bed trailer adopt a distinctive packaging approach that establishes a dual layer protection during the packaging process. Each low bed trailer is coated with a moisture-resistant wax and then securely wrapped in a waterproof covering. The method serves to effectively shield the 3 axle low bed trailer from the damaging effects of humidity encountered during maritime transport.
