The removable gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the removable gooseneck trailer body on the ground. After the tractor is separated from the saddle of the removable gooseneck trailer, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the removable gooseneck trailer for sale can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the removable gooseneck trailer for sale platform into a hydraulic gooseneck trailer ladder, thereby solving the problem of the large rear part of the hydraulic gooseneck trailer.
3 Axle Hydraulic Gooseneck Trailer Lowbed for Sale in Mozambique

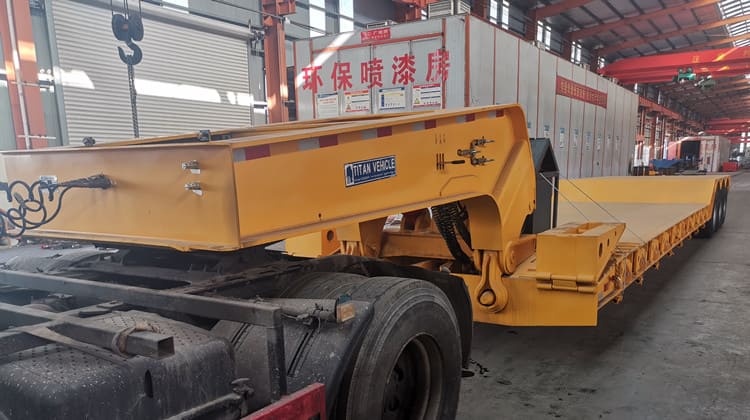

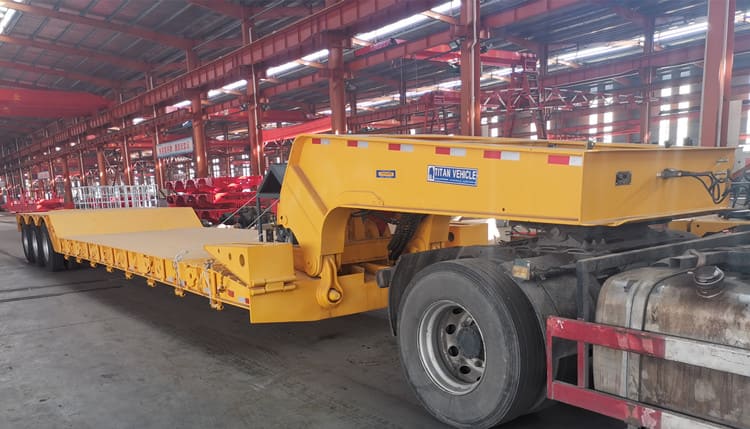

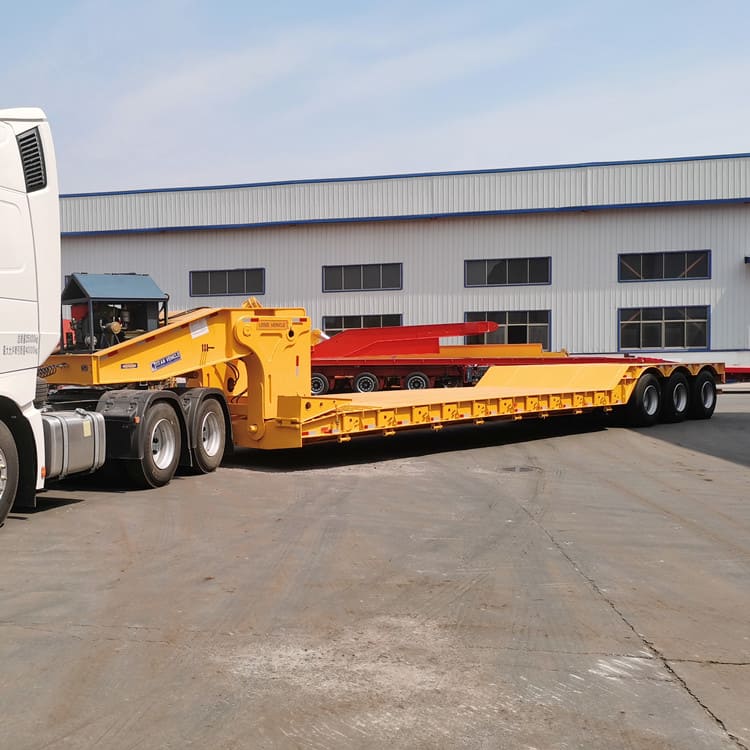

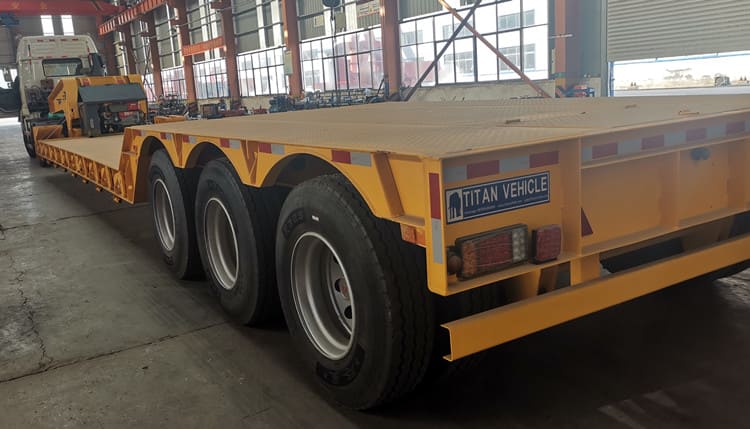

3 Axle Hydraulic Removable Gooseneck Trailer Lowbed for Sale in Mozambique
3 Axle Hydraulic Removable Gooseneck Trailer Lowbed for Sale in Mozambique
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 100T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
3 Axle Hydraulic Removable Gooseneck Trailer Lowbed for Sale in Mozambique
Through the video, you can know different types of detachable gooseneck trailer , 3 axle detachable gooseneck trailer for sale , hydraulic detachable gooseneck, etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
