3 Axles Semi Tipper Trailer

3 Axles Semi Tipper Trailer

17500 USD

Different Parameters, Different Price. Price Reference Only.



3 Axles semi tipper trailer adopts high strength steel. And the 3 Axle Semi Tipper Trailer for Sale loading capacity is 40t, 60t, 80t.

SKU: 3 Axles Semi Tipper Trailer
GTIN: 06975766111243
MPN: TITAN6815076
Brand: TITAN VEHICLE

3 Axles Semi Tipper Trailer Description:

3 Axles semi tipper trailer for Sale adopts high strength steel to make it durable when loading the sand or small stones or rocks. And the 3 axles semi tipper trailer loading capacity is 40t, 60t, 80t.

TITAN Semi Tipper Trailer equipped with a reliable hydraulic cylinder. We can customize the Semi Tipper Trailer according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use the well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

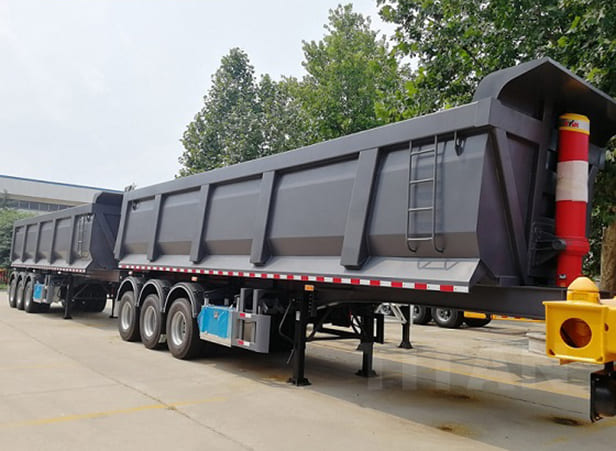

3 Axles semi tipper trailer

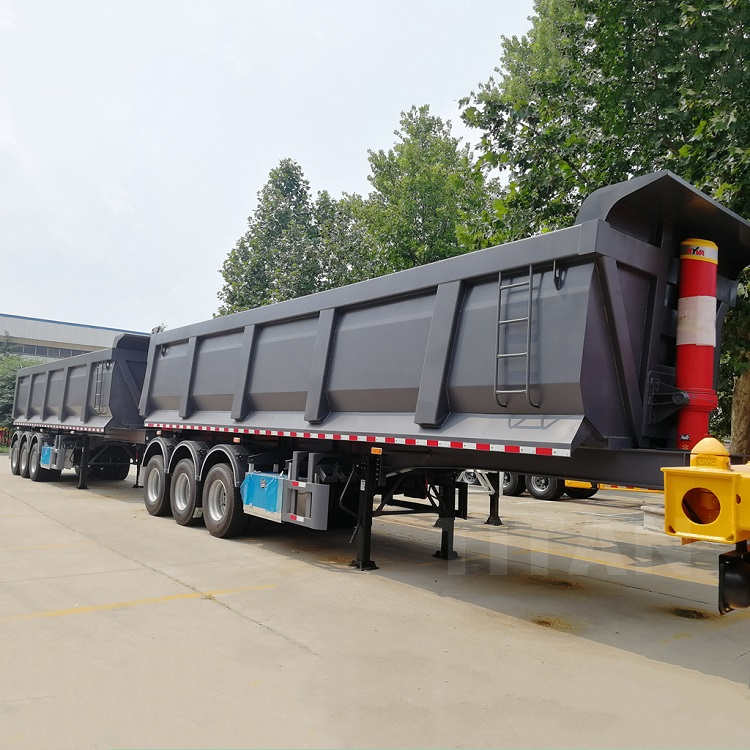

3 Axles semi tipper trailer

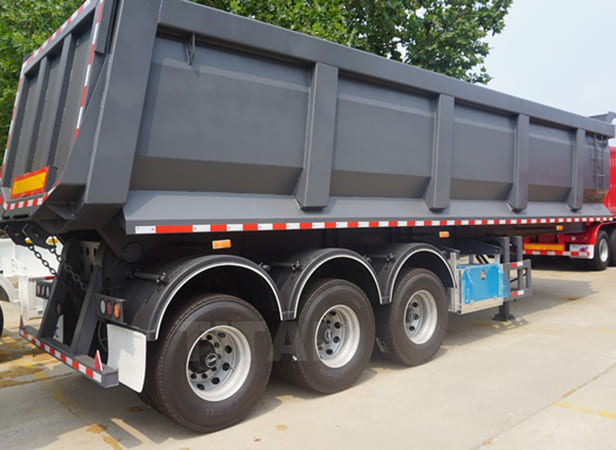

3 Axles semi tipper trailer

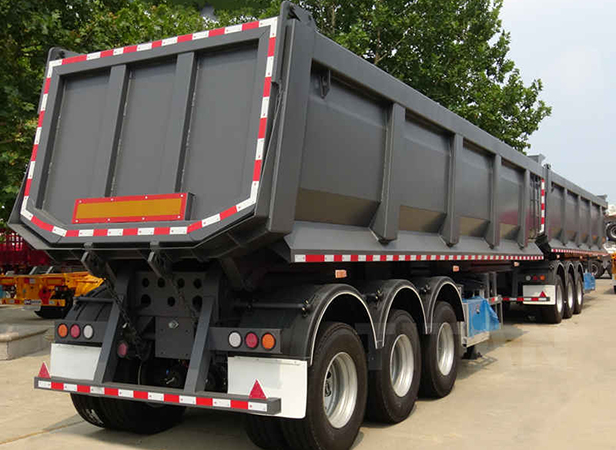

3 axles tipper trailer

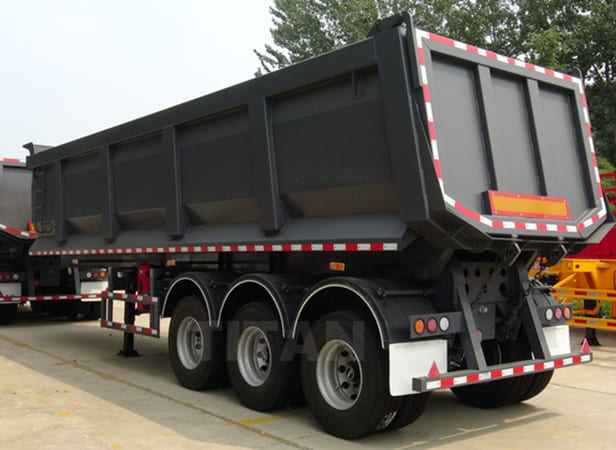

3 axles semi tipper trailer



3 Axles Semi Tipper Trailer Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.



3 Axles Semi Tipper Trailer Specification:

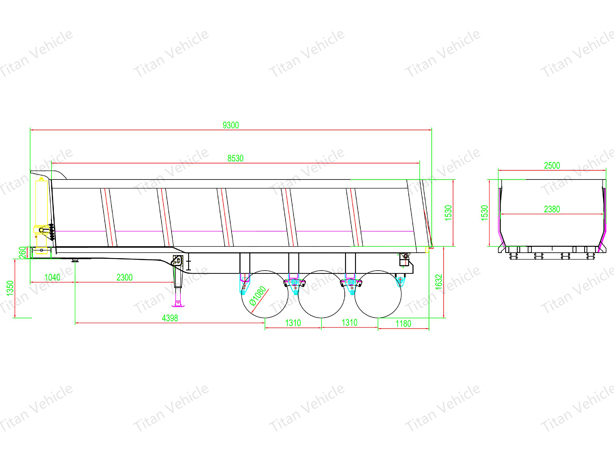

Overall dimension:9300mm * 2500mm *1600mm

Volume :  33CBM

Axles:3 axles

Suspension:Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire:12 units

King pin:90#

Landing gear:JOST

Brake system: WABCO

Electrical system: 24V, LED lights



Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.



Tipper semi trailer



3 Axles Semi Tipper Trailer Detail Show Video

tipper trailer



Please click " TITAN Tipper Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
