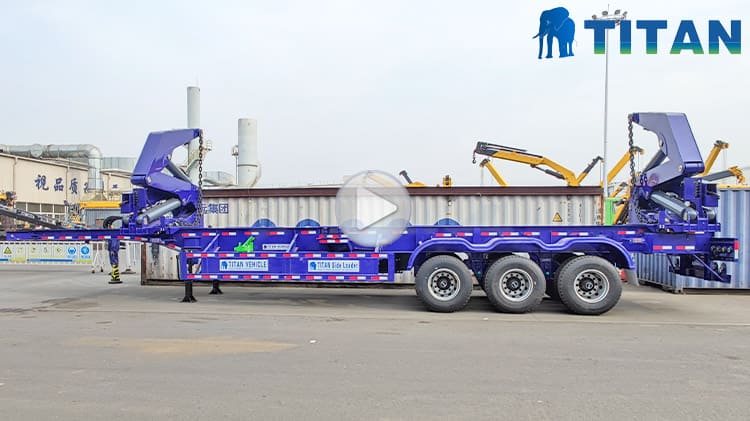

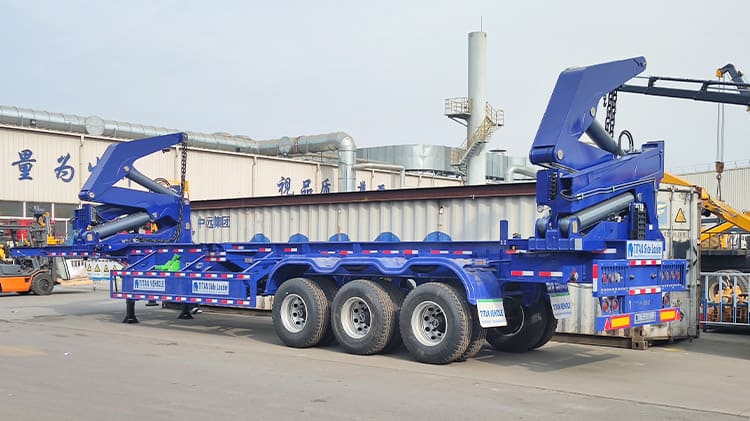

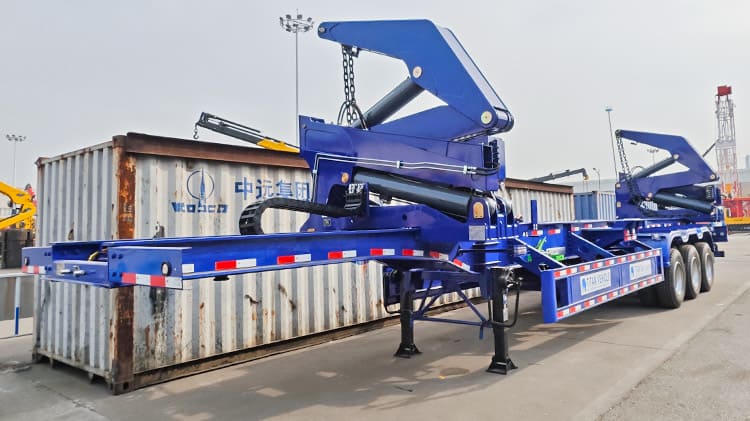

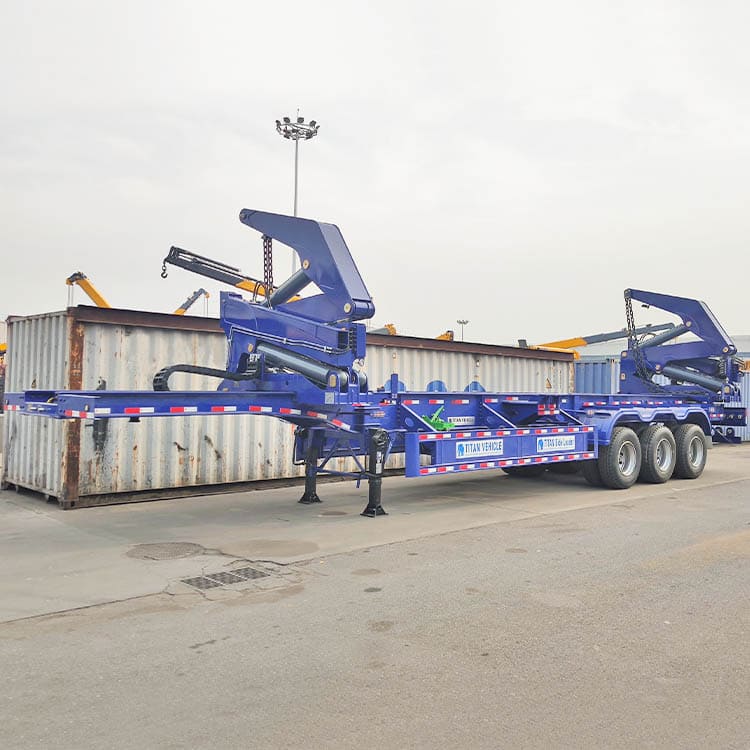

The TITAN 37ton side lifter presents a practical and efficient solution for container handling, especially in markets like Papua New Guinea where diverse operating conditions and infrastructure challenges require a combination of flexibility, durability, and load-handling precision.
Equipped with a robust lifting system, durable structural frame, and reliable components, the container side lifter is engineered to deliver secure and efficient container transport in a wide range of operating environments. Its well-optimized design makes particularly valuable for handling heavy loads in Papua New Guinea, especially in scenarios that require high levels of stability and operational efficiency.

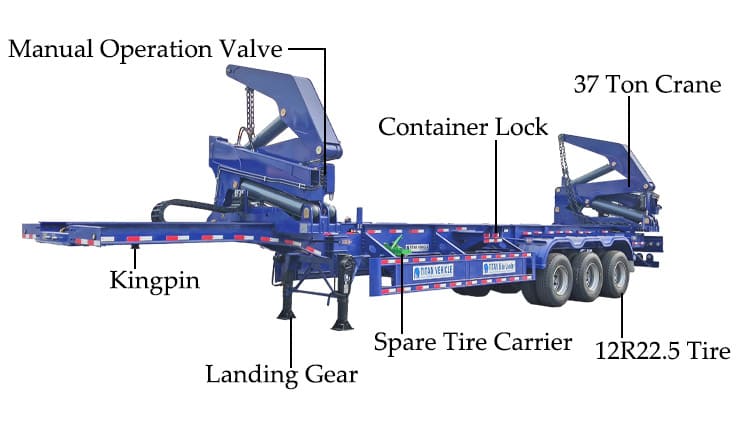

Dimension: 14100mm*2500mm*4200mm
Lifting Capacity: 45 ton
Crane Capacity: 37 ton
Trailer Material: high-strength alloy steel
Axle: 3 axles
Tire: 12 units, 12R22.5
Landing Gear: 28 ton

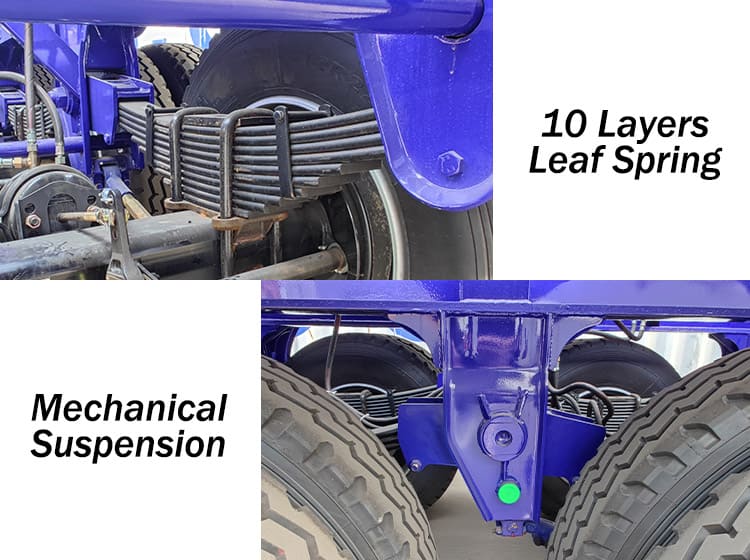

Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp with anti theft design

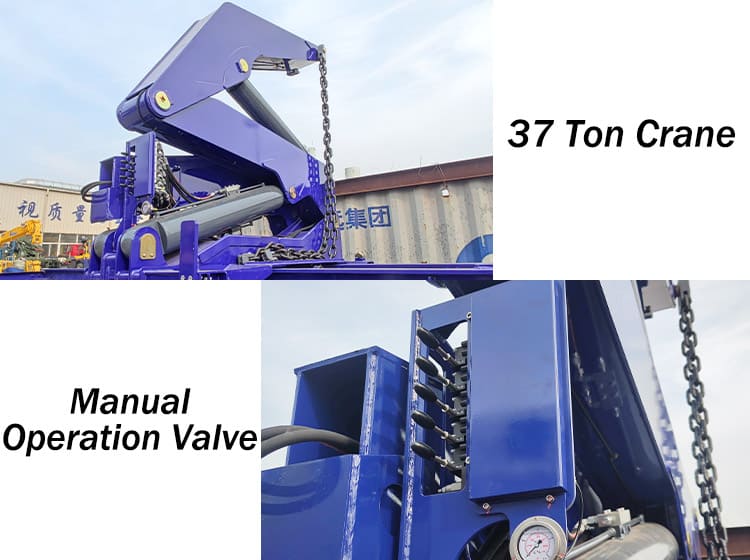

At the core of its functionality is a hydraulic crane system of container side lifter for sale, which allows for smooth vertical lifting and lowering of containers, along with the ability to adjust angles and slide containers horizontally.
The self-loading system eliminates the need for additional external lifting equipment, making ideal for space-restricted areas such as congested warehouses or uneven construction zones. With a rated lifting capacity of up to 37 tons, the hydraulic crane outperforms traditional mechanical lifting equipment by significantly enhancing operational speed and reducing handling time.
The container side lifter for sale is operated via a manual control valve, which allows the Papua New Guinea operator to control the hydraulic crane movements with ease. Designed for intuitive use, the valve provides responsive control in a range of conditions, including adverse weather.
Even under wet or extreme environmental conditions, the control system remains stable and effective, ensuring smooth operation and avoiding potential hazards. The manual mechanism is especially suited for complex work settings where both reliability and flexibility are critical.
Another notable advantage of the 37ton side lifter lies in its open-frame design, which supports both 20-foot and 40-foot container sizes. The versatility ensures compatibility with international container standards while maintaining efficient loading operations.

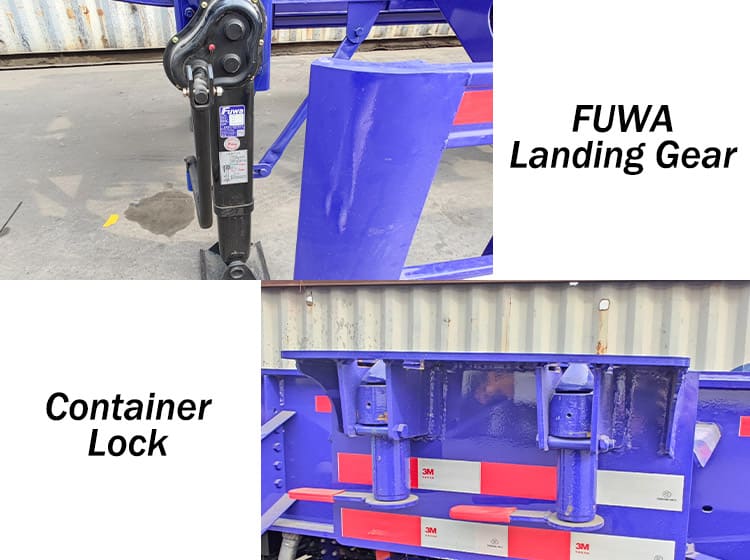

The container locking system is adjustable based on the container’s length, helping to ensure secure attachment during transit. By aligning the locking points with the container corners, operators can quickly and easily secure the load, improving workflow and reducing preparation time.
Built for strength and durability, the traction plate of the container side lifter for sale is made from a single 12 mm thick steel sheet. This single-piece design enhances structural integrity, minimizing the risk of cracking or warping under heavy load conditions. It also provides solid resistance against impact and road vibrations, especially when navigating unpaved or rough surfaces, and helps maintain stability during frequent braking.
Safety and visibility features are also integrated into the side lifter construction. The lighting system utilizes LED lamps, which offer greater brightness and a longer lifespan compared to conventional lighting. LED lights are better suited for resisting damage from gravel and uneven roads. To deter theft, the lighting units include anti-theft features.
The suspension system and chassis are built to support demanding transportation needs. The container side lifter is reinforced to handle heavy-duty towing tasks, maintaining structural reliability even during long haul trips or under challenging conditions. From rugged terrain to narrow spaces, the 37ton side lifter is engineered to perform consistently and safely.
Another key structural component of the side lifter is its landing gear system. Designed to handle dynamic loads up to 28 tons and static loads up to 45 tons, these support legs provide essential ground stability during operations. Featuring a broad base design, the landing gear helps evenly distribute the container side lifter weight, minimizing pressure on any single point. The structure significantly reduces the chance of the 37ton side lifter sinking on soft or uneven surfaces.
For international transport, TITAN adopts a protective packaging process that sets apart from other manufacturers. Before delivery, every container side lifter for sale is treated with protective spray wax to guard against corrosion. In addition, waterproof rain covers are applied to shield the side lifter from sea breeze and saltwater exposure during shipping. Depending on logistics requirements, the 37ton side lifter can be shipped in containers or transported using RORO (roll-on/roll-off) methods.
