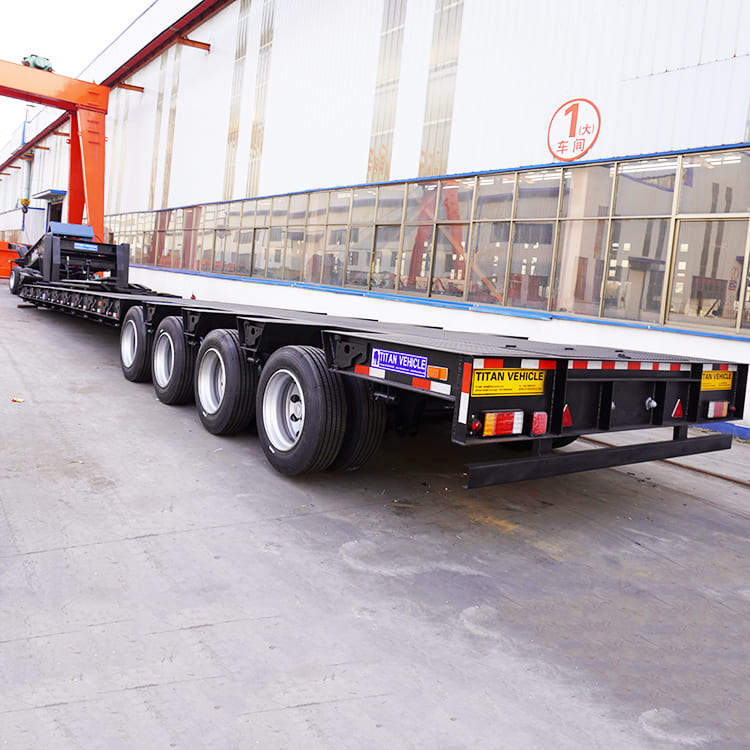

TITAN 120t hydraulic detachable gooseneck lowboy trailer usually consists of four parts: traction system, force transmission system, alignment adjustment system and locking system. The locking methods of the detachable gooseneck trailer and the front end of the semi-trailer include traction saddle locking, latch locking and cam locking, etc.
TITAN also provide customers detachable gooseneck lowboy trailer with different capacity: 60/80/100/120/150 ton detachable gooseneck trailers.
4 Axle 120T Hydraulic Detachable Gooseneck Lowboy Trailer for Sale Price
4 Axle 120T Hydraulic Detachable Gooseneck Lowboy Trailer for Sale Price
4 Axle 120T Hydraulic Detachable Gooseneck Lowboy Trailer for Sale Price
Dimension: 16500mm x 3000mm x 2500mm
Loading capacity(T): 120t
Axle: 4 axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

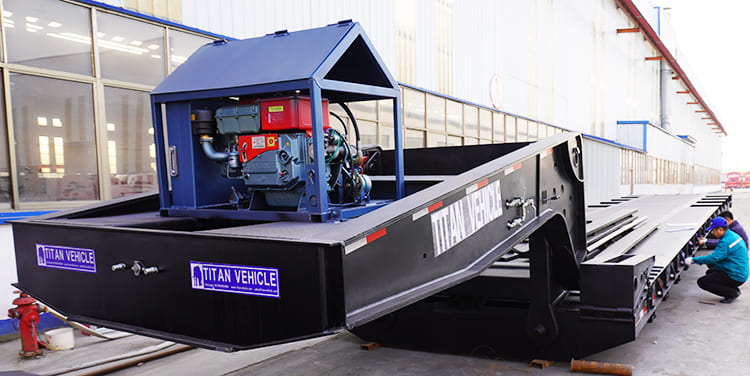

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

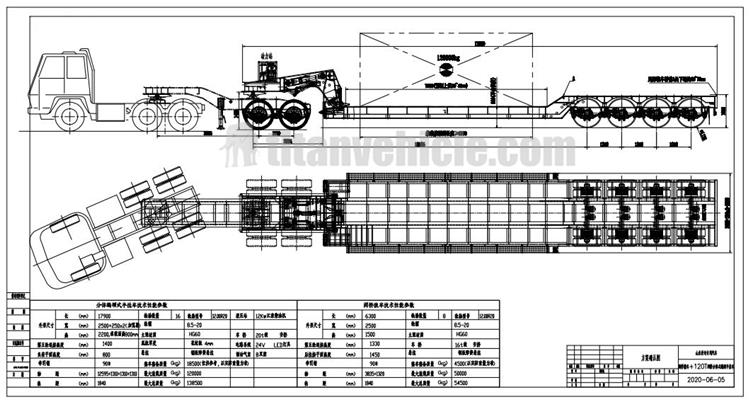

Drawing of 4 Axle Hydraulic Detachable Gooseneck Lowboy Trailer
