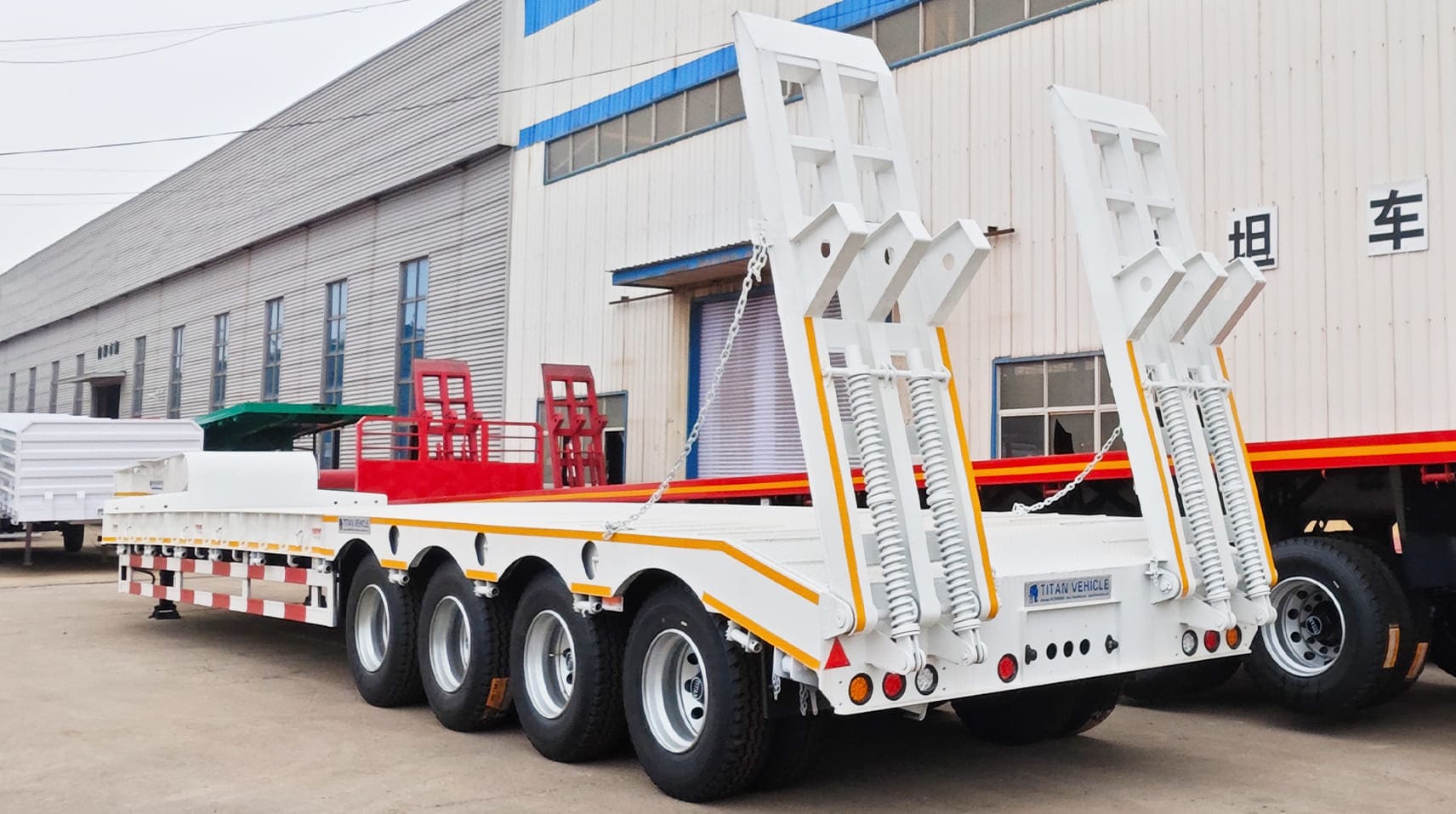

The short height of the lowbed trailer for sale floor from the ground can effectively lower the center of gravity of the transported equipment, avoiding the risk of bumps or rollovers in an emergency. The 4 axle lowbed design combined with the reinforced spring ramp can facilitate the movement of equipment, reduce the reliance on large lifting equipment, and greatly save Saudi Arabia customers loading and unloading time and costs.

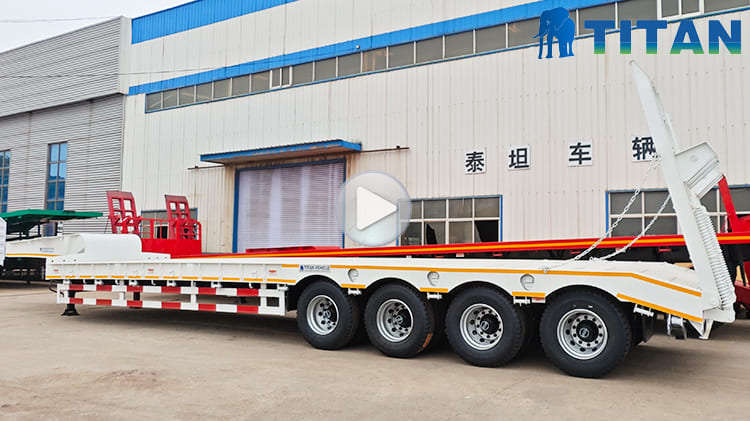

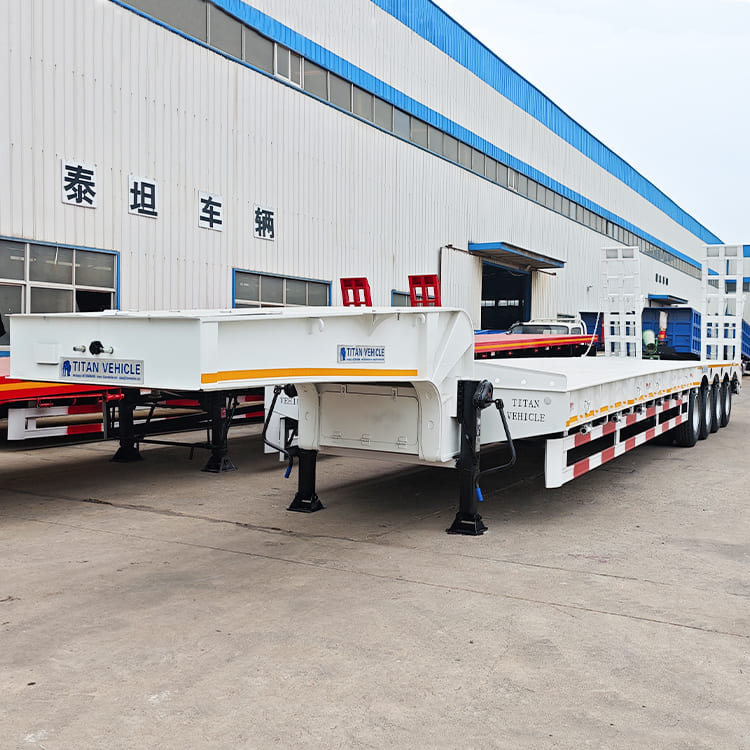

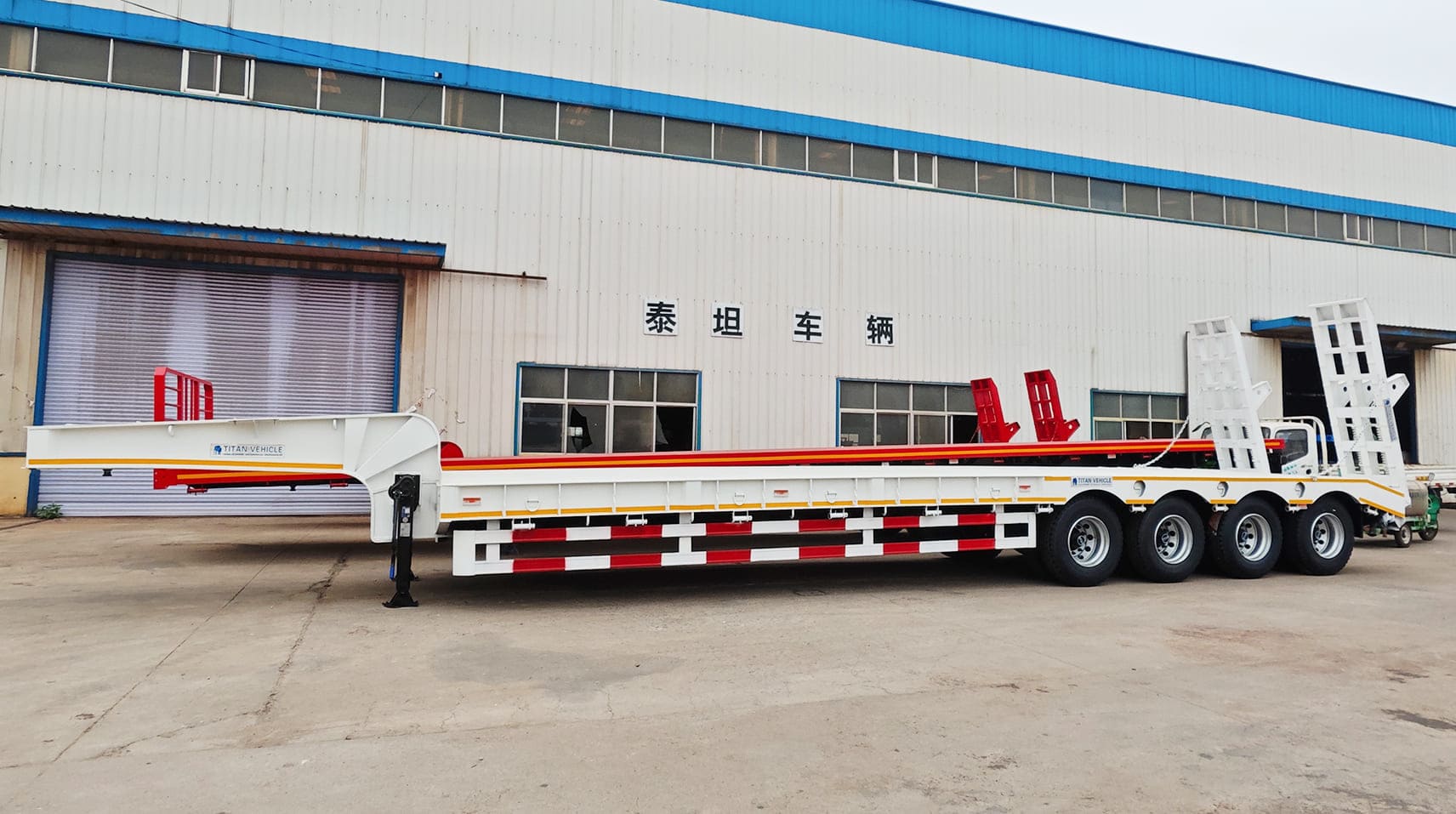

4 Axle Lowbed Trailer for Sale Near Me in Saudi Arabia Dammam
4 Axle Lowbed Trailer for Sale Near Me in Saudi Arabia Dammam

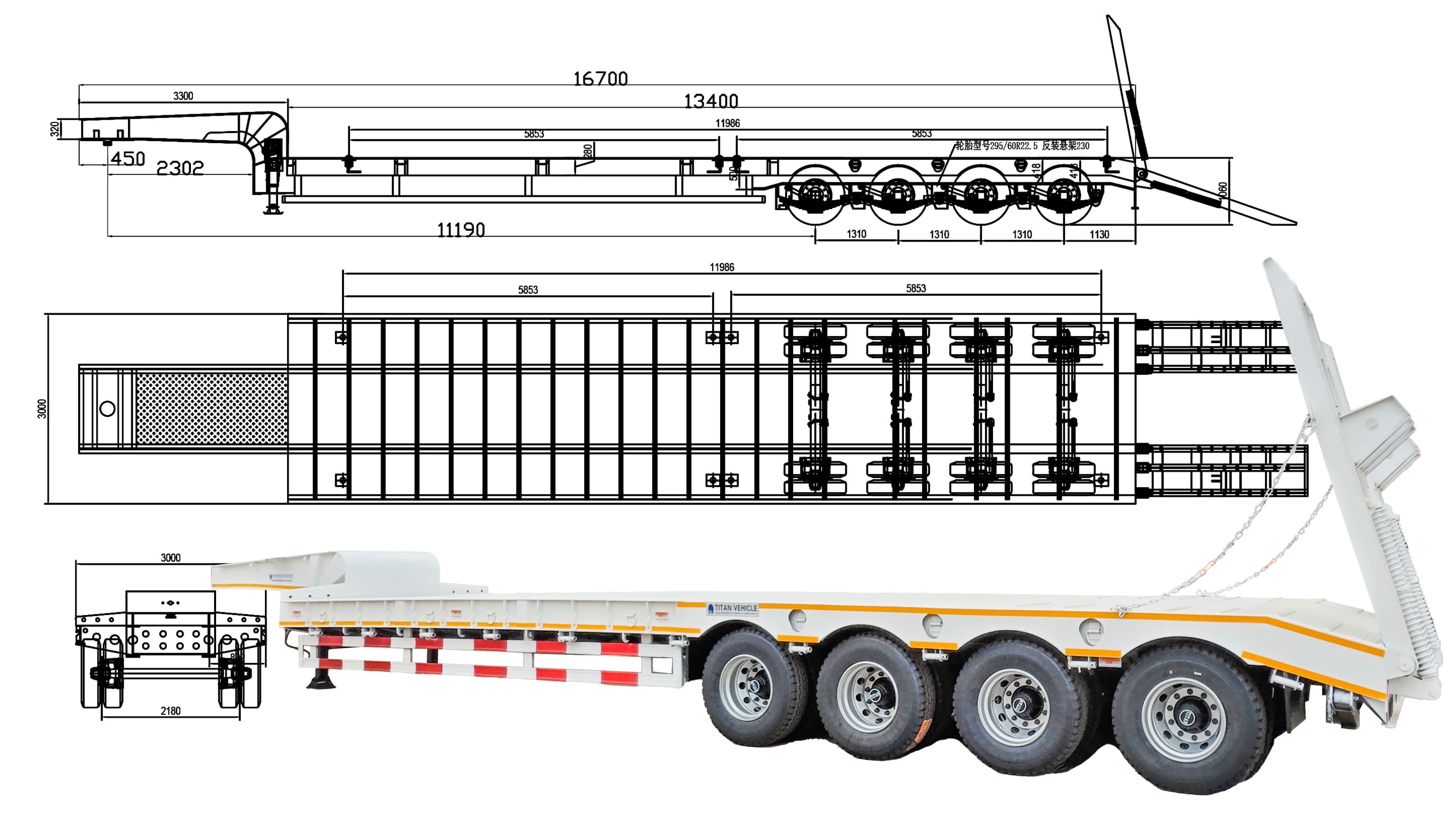

Dimension: 16700mm * 3000mm *1060mm
Tanker body material: Q460 high strength steel
Payload: 120 ton
Axles: 4 axles, TITAN brand
Tire: 16 units
Leaf Spring: 10 layers
Suspension: reinforced mechanical suspension
Landing gear: FUWA brand, 28 ton
Lamp: anti-theft net LED lamp
The core load-bearing structural main beam of the 4 axle lowbed trailer is made of Q460 high-strength steel, whose material properties are significantly better than conventional steel in terms of tensile strength and load-bearing capacity.

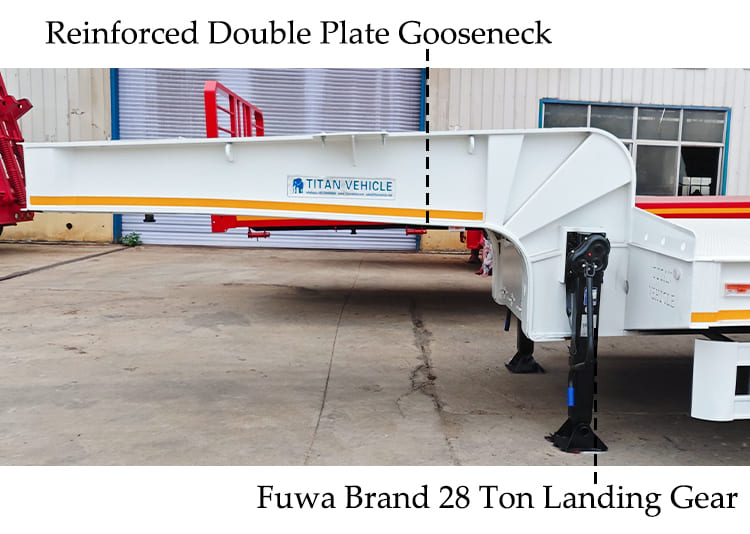

The gooseneck part of the main beam is strengthened through the double-layer vertical plate reinforcement process to form a composite support structure, so that the lowbed trailer can still effectively suppress deformation under extreme load conditions and ensure the overall stability of the transportation process.

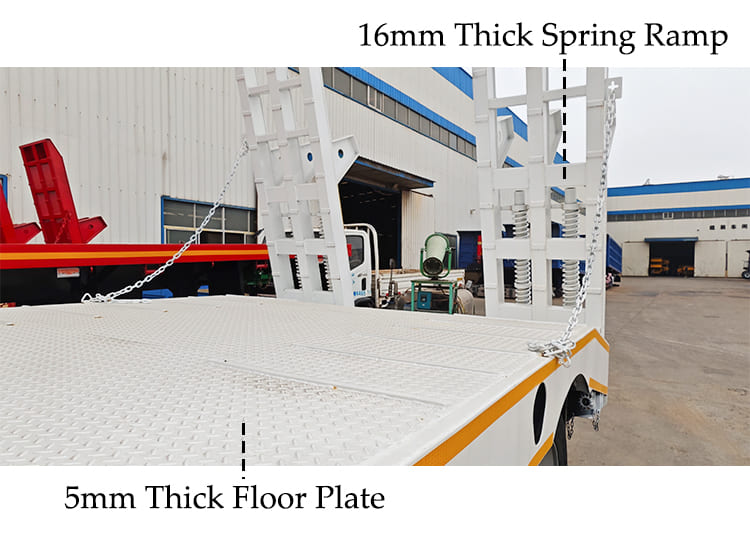

Different from the conventional smooth floor design, the TITAN lowbed trailer for sale uses functional patterned steel plates as the transportation platform. The 5mm thickened high-strength steel plate is combined with a three-dimensional anti-slip pattern to improve the surface friction while taking into account the structural strength requirements.
Such material selection and design can not only maintain the structural integrity of the 4 axle lowbed floor in Saudi Arabia's road conditions, but also significantly reduce the risk of equipment displacement during long-distance transportation by enhancing the contact resistance between heavy equipment and the floor plate.

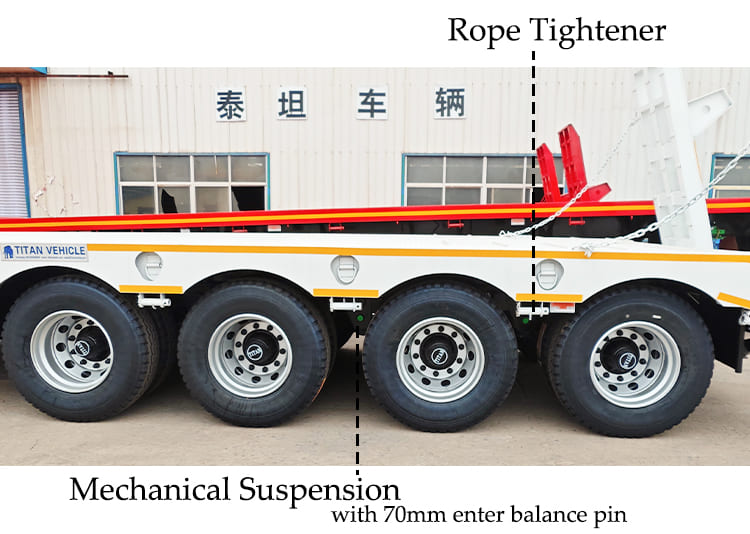

Multiple sets of rope tighteners are configured on both sides of the lowbed trailer for sale, and the full coverage and fixation of the transportation equipment is achieved through comprehensive layout. The 4 axle lowbed rope tightener is equipped with a quick locking structure, and the precise adjustment of the rope tightener can be completed through simple operation.
The rope tightener works with the reinforced floor plate to form a three-dimensional restraint system, which effectively prevents the transport equipment from slipping during sharp turns or emergency braking on the road.
The lowbed trailer lighting unit has been fully upgraded to high-brightness LED lamps, providing a clearer outline effect in low-visibility environments. The lamp body shell adopts an impact-resistant design to effectively resist the wear of gravel roads. The anti-theft net structure can significantly reduce the risk of equipment theft.
The entire lowbed trailer for sale is equipped with a surround reflective logo to ensure visibility under different lighting conditions and ensure safety during driving and parking.
The braking system is equipped with 16 tons of brake pads to achieve rapid response characteristics and effectively shorten the braking distance in emergency situations. The lowbed trailer pipeline system is made of high-pressure resistant rubber material, which greatly extends the service life of key components. The electrical circuit uses durable cables to ensure stable signal transmission in complex environments.
The traction device is made of integral steel plate, and the 12mm thick homogeneous steel plate is processed to form a strong hardness. During driving, the traction plate ensures stable transmission of traction while effectively absorbing road impact energy through certain structural deformation.
Under the action of the traction plate, the 4 axle lowbed can still maintain stable power transmission characteristics under the terrain conditions of Saudi Arabia, ensuring the continuity of the transportation process.
The unique packaging strategy enables TITAN trailers to establish a double protection mechanism during the packaging stage. The trailers are sprayed with professional-grade moisture-proof wax and covered with waterproof cloth. The packaging method of TITAN trailers can effectively isolate the erosion of the humid environment during sea transportation, forming a unique transportation process quality assurance system.
