4 axle 100 ton semi low loader trailer for sale is mainly used to transport heavy equipment with non-centralized force. Because of semi low loader trailer for sales heavy load, the configuration of the semi low loader trailer for sale is also stronger.
The 4 axle 100 ton semi low loader trailer for sale is mainly used to transport heavy equipment with non-centralized force. Because of semi low loader trailer for sales heavy load, the configuration of the semi low loader trailer for sale is also stronger.
In addition to all the accessories of low loader trailer 100 tons adopt world famous brands, such as JOST, WABCO, etc., the frame, side beam and side beam diagonal support of low loader trailer 100 ton are all reinforced design.

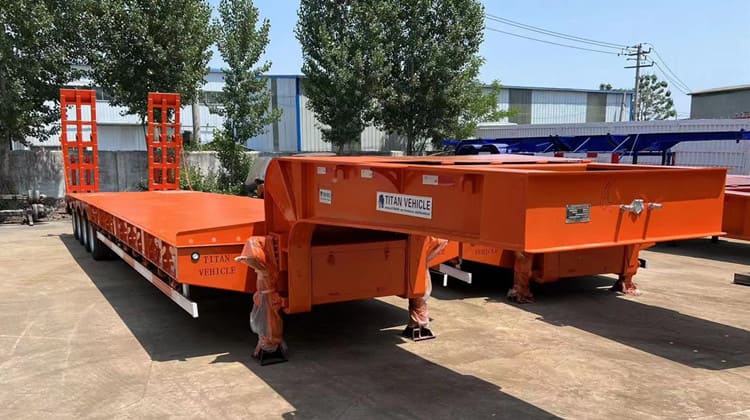

4 Axle semi low loader trailer 100ton for sale in Dominica

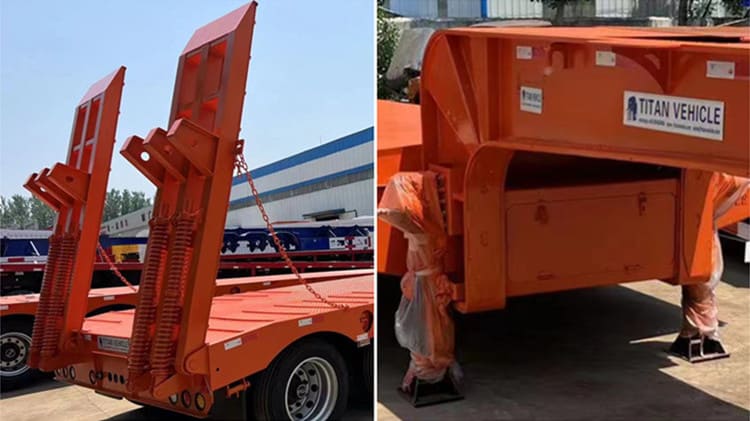

4 Axle low loader truck trailer 100ton for sale in Dominica

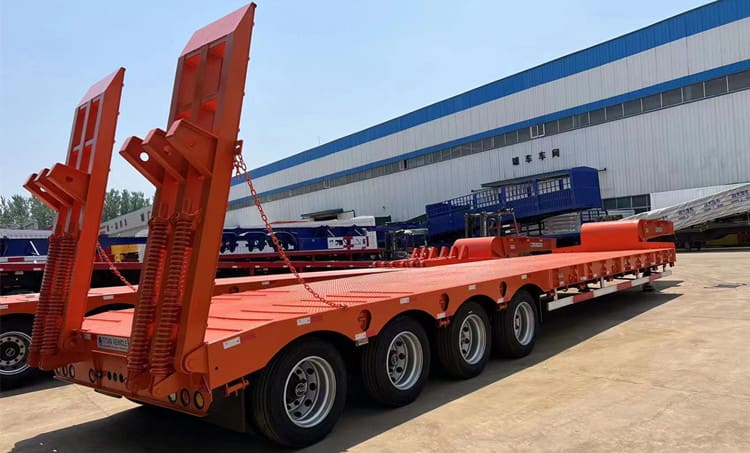

4 Axle semi low loader truck trailer 100ton for sale in Dominica
Overall dimension: 16000mm * 3000mm *1350mm
Loading capacity(T): 100T
Axle: 4 axle, 16ton FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 16 unit, 12.00R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST 28Ton
Main beam: Height: 550mm, Upper plate: 20mm, Middle plate: 14mm, Lower plate: 20mm, Material: Q460C steel.
Bottom Platform: 5mm thick checkered plate
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

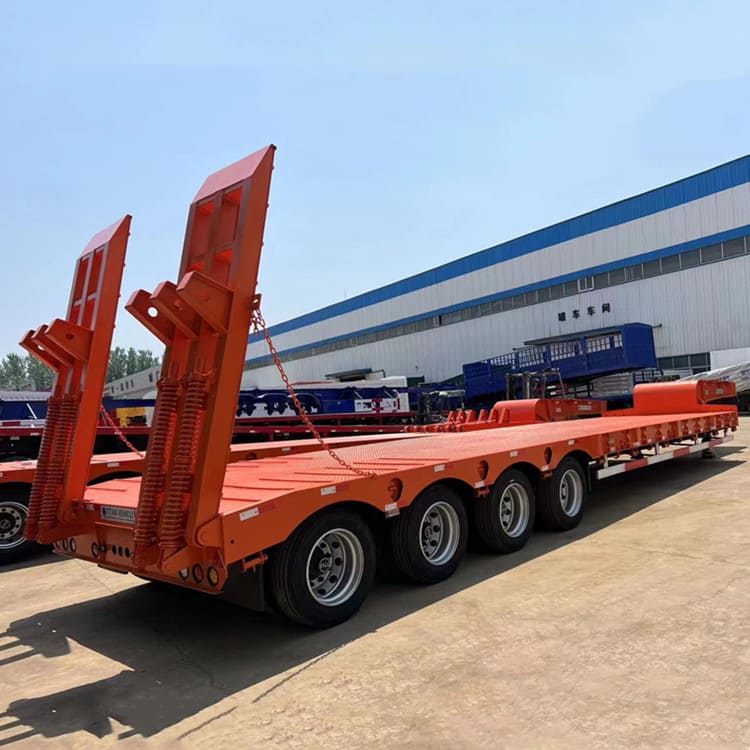

4 Axle semi low loader truck trailer 100ton for sale in Dominica
1. The steel used for low loader trailer for sale beams is high-quality high-strength steel Q460C, which has greater strength and better toughness.
2. The side beam of the low loader trailer 100 ton of the 4th bridge is made of T700 steel with higher strength than Q460C, and the side beam is welded by I-shaped manganese steel with a height of 300mm and a width of 140mm by automatic submerged arc welding process.
3. 4 Axle low loader truck uses a 16-ton axle, which is more durable than a 13-ton axle
4. 4 Axle low loader truck uses a double-spring ladder, which is welded with high-strength plates, and one person can operate the ladder.
5.The suspension and leaf spring of the semi low loader trailers are thickened and widened, which can effectively cope with the harsh road conditions under larger loads.

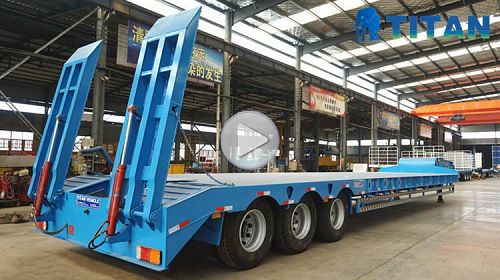

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
