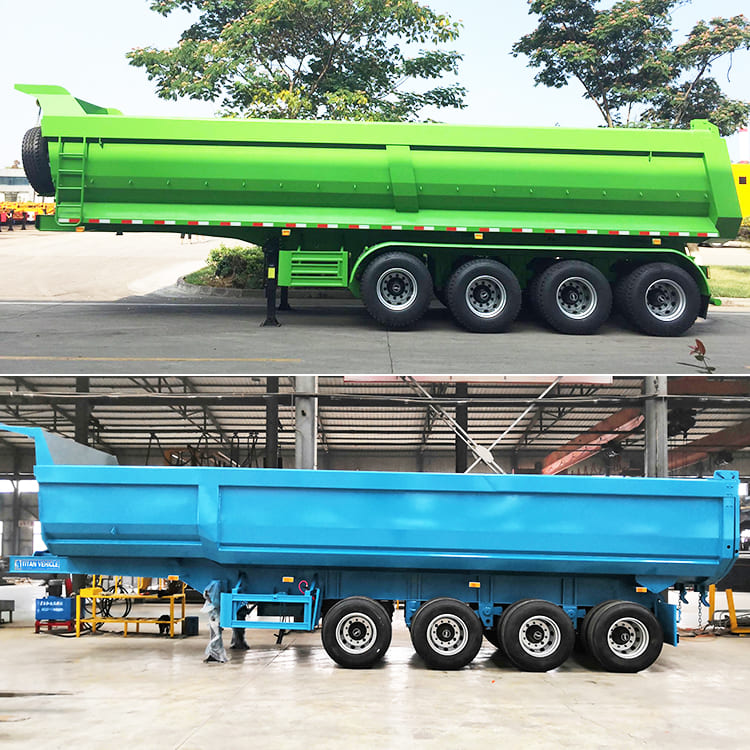

4 Axles 60T Semi End Dump Trailer

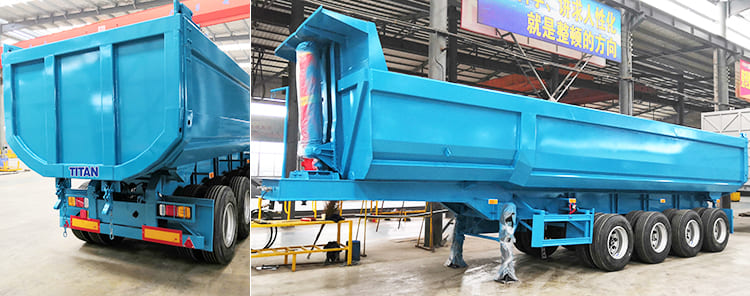

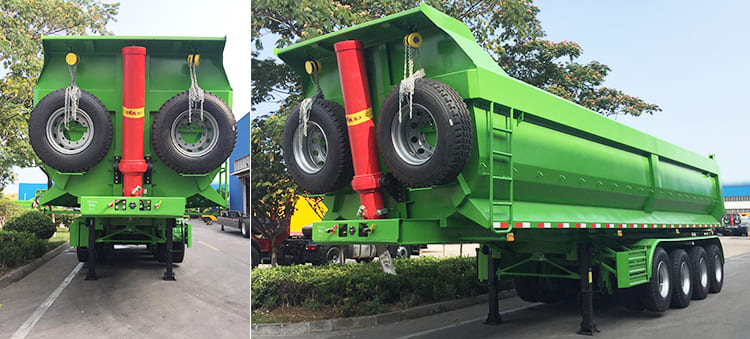

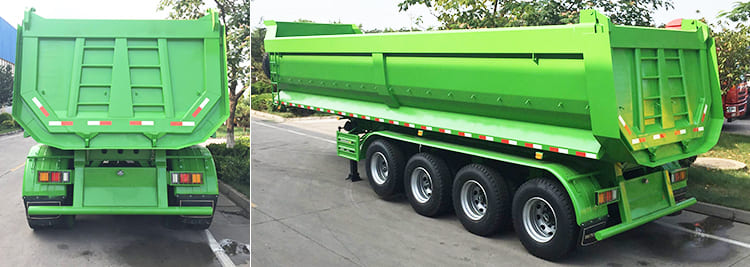

4 Axles Semi End Dump Trailer

TITAN 4 axle semi end dump trailer's frame and the longitudinal beam are welded with high-quality steel plates, and the cargo box adopts a U-shaped design. It has the characteristics of high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no permanent deformation. The main components of the semi end dump trailer are processed by advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the axles and leaf springs are precisely assembled by assembly machines.

Semi End Dump Trailers for Sale Manufacturers | Semi Dump Trailers for Sale

Semi End Dump Trailers for Sale Manufacturers | Semi Dump Trailers for Sale

Semi End Dump Trailers for Sale Manufacturers | Semi Dump Trailers for Sale

Specification of 60 ton semi dump trailer：

Dimension: 9300mm * 2500mm *3700mm

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm

Total volume(m³): 60 ton

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Semi Dump Trailer for Sale Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

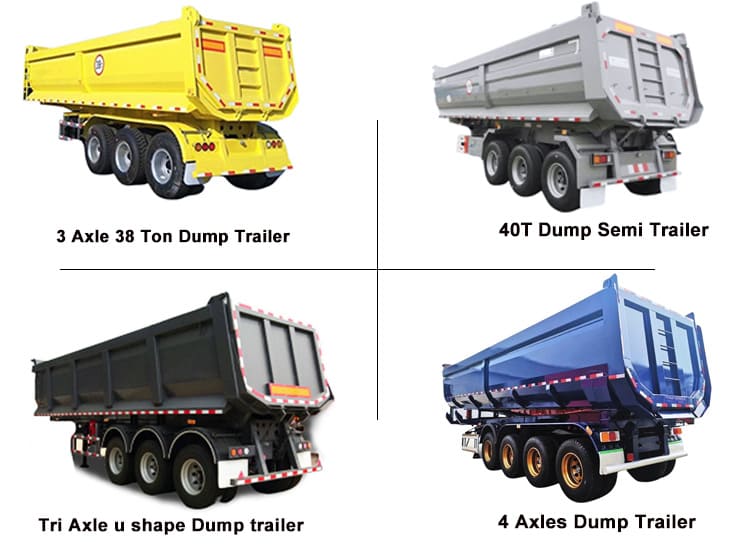

Other Semi End Dump Trailers for Sale
