Shandong Titan Vehicle Co., Ltd. is a well-known manufacturer and exporter of special truck trailers and semi-trailers in China. The company was established in 2004.
]TITAN Vehicle adopts high strength steel material to manufacture the 40 foot flatbed semi trailer price for sale, it can make the flatbed trailer have a higher loading capacity and a longer service life.

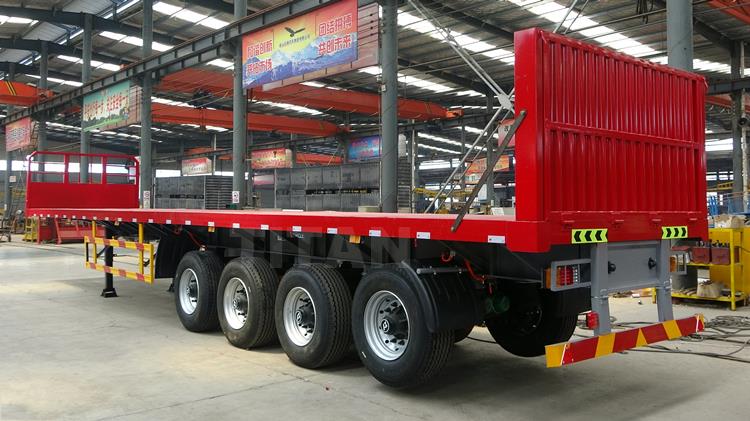

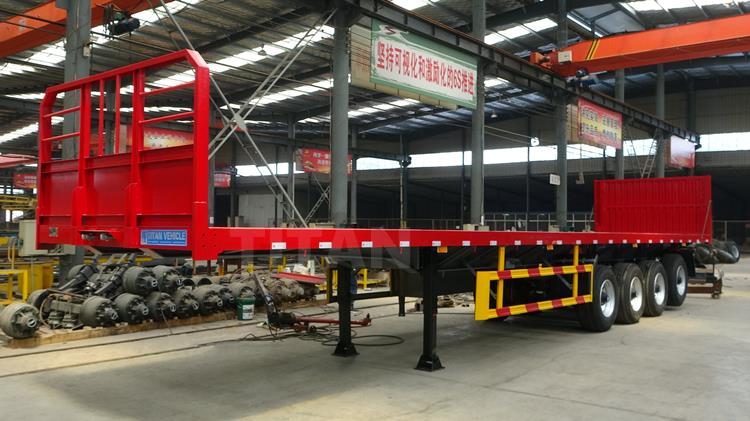

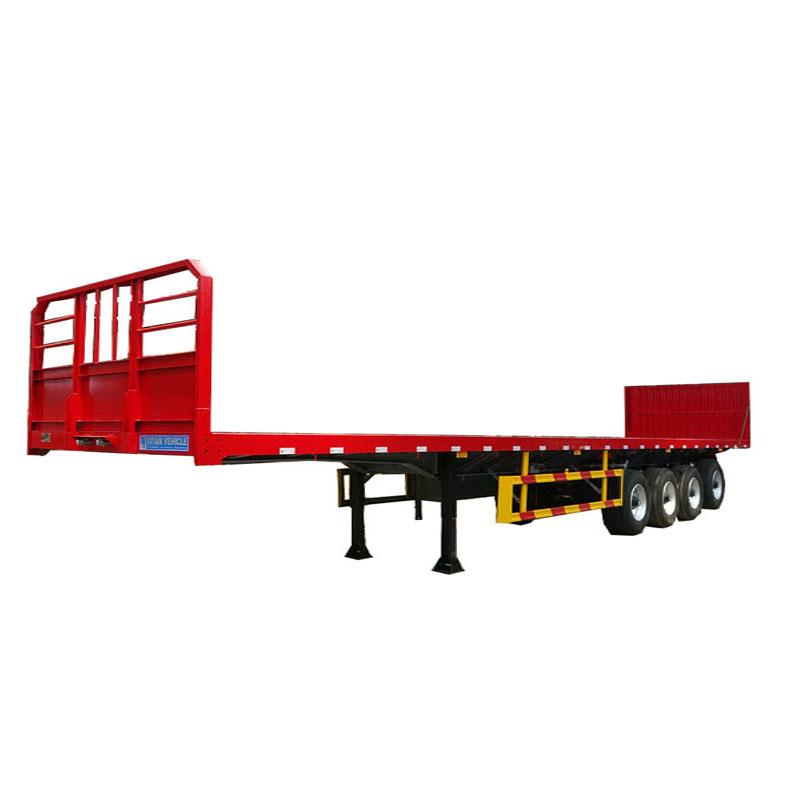

40 Foot Flatbed Container Semi Trailer Price For Sale
40 Foot Flatbed Container Semi Trailer Price For Sale
Dimension(mm): 13000x2500x1550mm
Transport: 20ft, 40ft, 45ft container
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

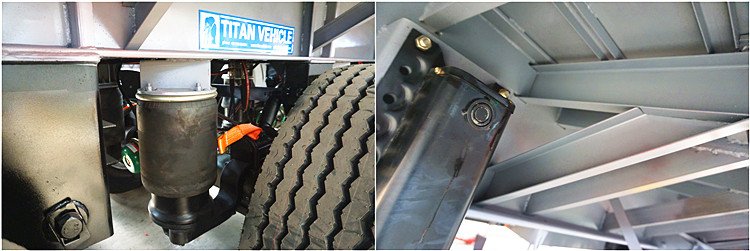

Suspension: Airbag Suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

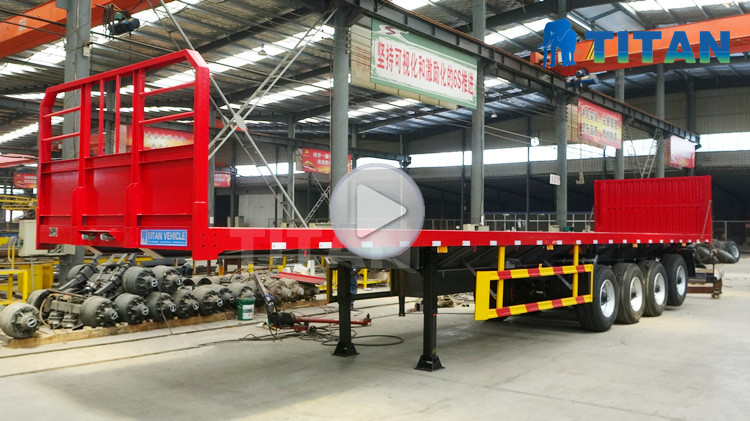

4 Axle flatbed semi trailer details display video
