In Mali, 45 ton reach stacker have become vital equipment in managing container transport and handling operations. These machines are valued for their ability to lift, move, and stack shipping containers efficiently while offering a strong balance between stability and maneuverability. The reach stacker for sale are widely used in ports, rail freight terminals, and logistics centers, where fast handling and operational flexibility are essential.
Vehicle Model: XCSE, 45Ton
Rated Power: 200kw
Rated Lipting Capacity: 45 ton
No-load speed: 28 km/h
Fully loaded speed: 25 km/h
Max Lifting Height: 15100mm
Total Vehicle Curb Weight: 73500kg
Engine: Cummins brand
Motor Model: DM380H46
A key advantage of using reach stacker price over traditional fixed crane systems lies in the ability to operate in compact and restricted spaces. Their relatively compact design allows to function efficiently in facilities with limited working areas and tight schedules. The level of adaptability not only enhances operational flexibility but also helps reduce infrastructure investment by eliminating the need for permanent installations.

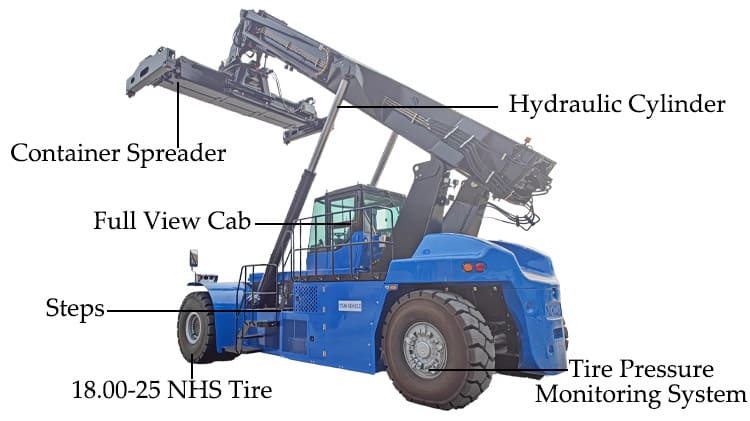

The robust chassis serves as the foundation of the 45 ton reach stacker performance. Designed to withstand the rigors of rough terrains often found in loading zones, it incorporates the drive motor, mechanical components, and power systems in a compact configuration.
Reinforced axles and large pneumatic tires allow the reach stacker for sale to maintain performance on uneven or rugged surfaces across Mali various working environments. Most units are powered by diesel engines that deliver the torque necessary for short-distance hauling of fully loaded containers.

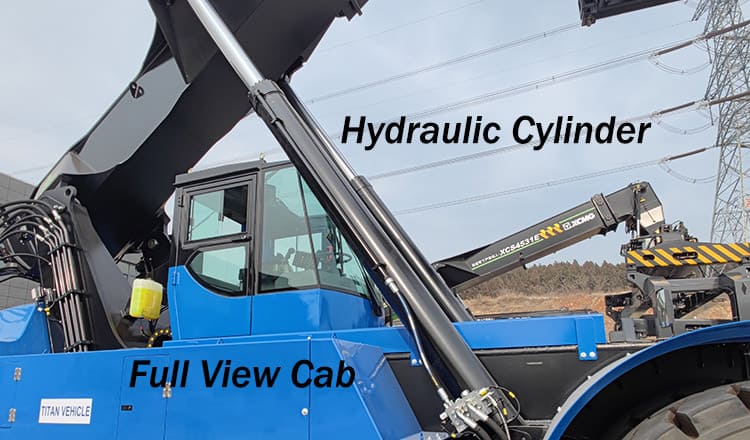

The operator cabin is another important feature, designed to support both comfort and control. Mounted above the main frame, it provides a wide field of view over the working area, helping operators navigate busy container yards more effectively.
Inside the cabin, controls are arranged for ergonomic access. Joystick-operated systems, display screens, and onboard diagnostics give the Mali operator better control and allow real-time monitoring of machine functions. This setup improves handling precision and reduces the chance of accidents during daily operations.
The core lifting function is executed through a heavy duty crane arm that can tilt and extend to reach stacker for sale in multiple rows and at elevated heights. Constructed from high strength steel, the crane is engineered to withstand long hours of intensive use without compromising on performance or accuracy. Hydraulic cylinders supply the lifting force, enabling stable, controlled operation even in restricted working zones.

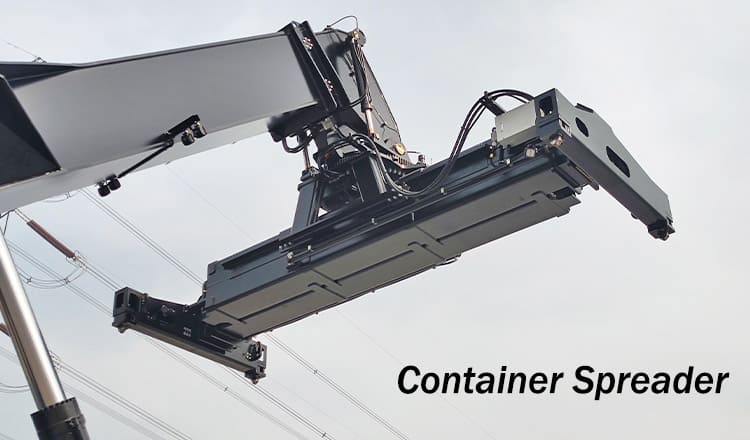

Attached to the end of the crane arm is the container spreader, a critical tool for securing and lifting containers. The spreader uses a twist-lock mechanism that connects to the top corners of the container. It is adaptable to standard 20-foot and 40-foot containers and often includes built-in alignment guides and sensors to speed up and improve the locking process which improves both safety and operational efficiency during frequent container changes.
The hydraulic system is essential to the reach stacker price functionality. It powers various movements such as arm extension, spreader activation, and in some models, the steering mechanism. A well-designed hydraulic setup provides reliable and smooth operation, while also improving energy efficiency by reducing hydraulic losses. This contributes to lower fuel consumption and extends the overall lifespan of the equipment.

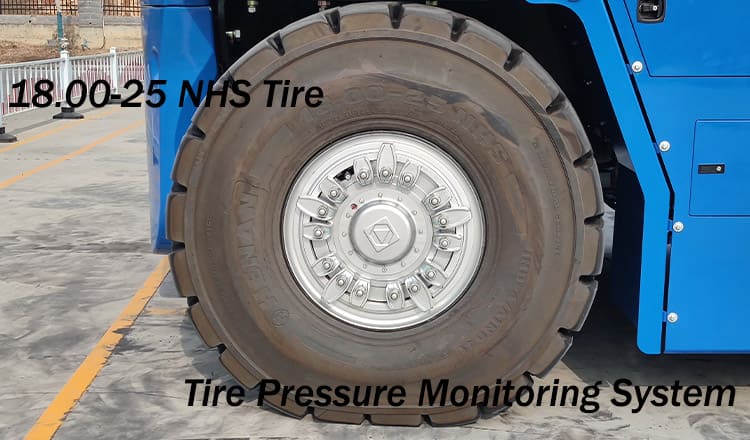

Safety considerations are embedded throughout the machine. Load sensors are integrated to prevent overloading, while systems like TPMS (Tire Pressure Monitoring System) help reach stacker price identify pressure irregularities early.
More advanced models may also include rear-view cameras, radar sensors, and anti-rollover features that enhance safety during stacking or tight maneuvering. These precautions aim to protect both the operator and nearby personnel, especially in high-traffic environments.
Another essential component is the counterweight system located at the rear of the 45 ton reach stacker. This feature maintains balance when lifting containers at full extension. The counterweights are carefully calculated to align with the lifting capacity and arm dimensions. On uneven or sloped ground, additional stabilizing devices may be deployed to ensure proper balance and operational safety.
