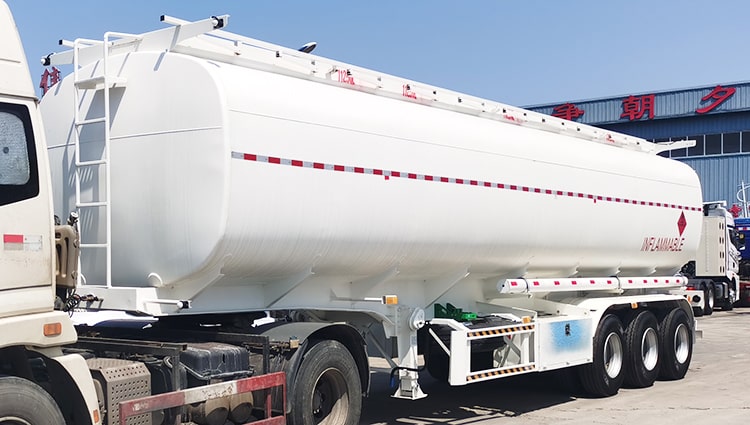

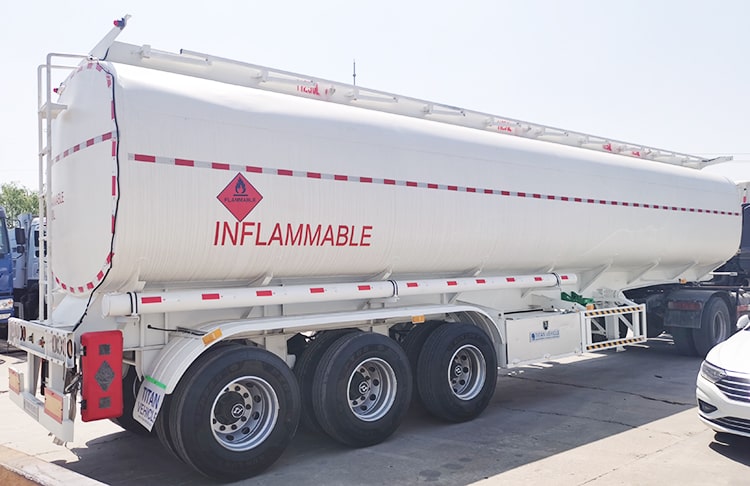

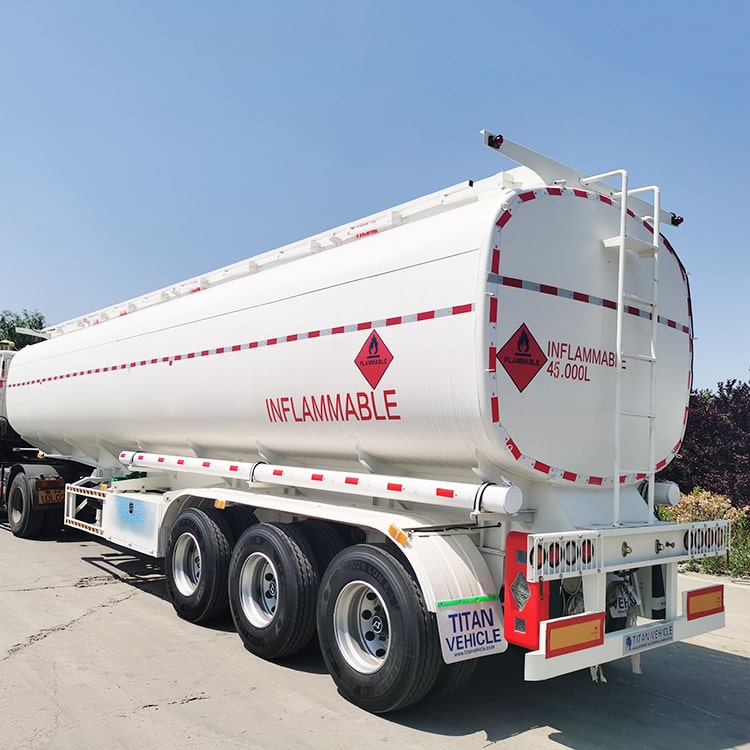

TITAN 45000 liters petrol tanker is mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel oil, crude oil, lubricating oil and coal tar. It can bed divided into several compartments (2/3/4/5/6/7) according to customers need. Each compartments has been eqquipmented with bottom vavles, which makes the operation easier, time-saving, safe and environmentally friendly when loading and unloading liquids.
Petrol Tanker Price | How Much Does A Petrol Tanker Cost in Nigeria
Petrol Tanker Price | How Much Does A Petrol Tanker Cost in Nigeria
Petrol Tanker Price | How Much Does A Petrol Tanker Cost in Nigeria
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 45000 Liters
Tank Body Material: 5mm or 6mm/ carbon steel
End plate: 5mm or 6mm/ carbon steel
Manhole Cover: carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

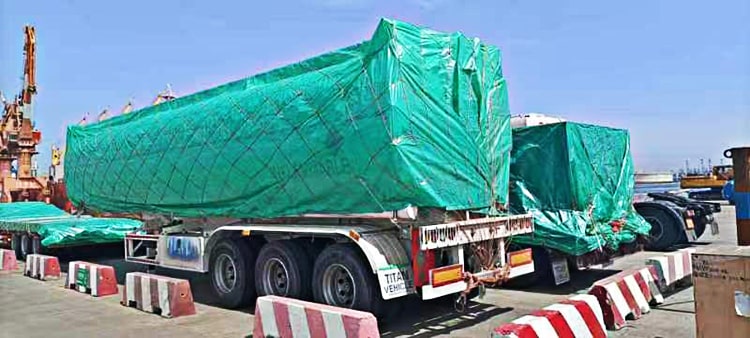

TITAN uses a professional packaging solution. Before the petrol tanker trailer is sent away, it will spray waterproof wax to effectively protect the appearance of the tanker. At the same time, TITAN uses a professional waterproof rain cloth to protect the tanker from being scratched. Shipping is fast and customers can receive their goods within seven days from the day when tanker trailer was pakaged.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
