Price: 25000 USD

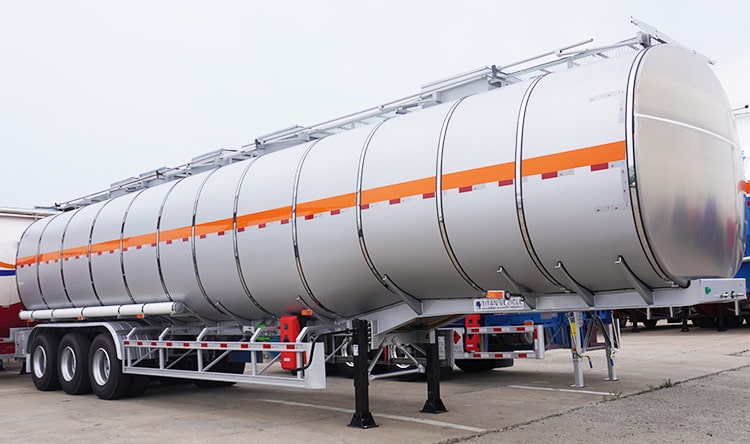

The tank body of this tanker trailer is made of stainless steel, which made the tank has a longer life and strong corrosion resistance. The stainless steel tanker trailer is lighter than the carbon steel tanker trailer.
TITAN Vehicle adopts world famous brand tire and axles BPW German brand air suspension and axle high-quality running system, which only need less maintenance, and longer service life. The stainless steel taner trailer is more convenient to clean and not easy to rust. At the same time, the recycling value of the tank is higher.
TITAN also offers customers tanker trailers with different material (carbon steel, aluminum steel etc.) The volume of the stainless steel tanker trailers can reach 90000 Liters maximumly.

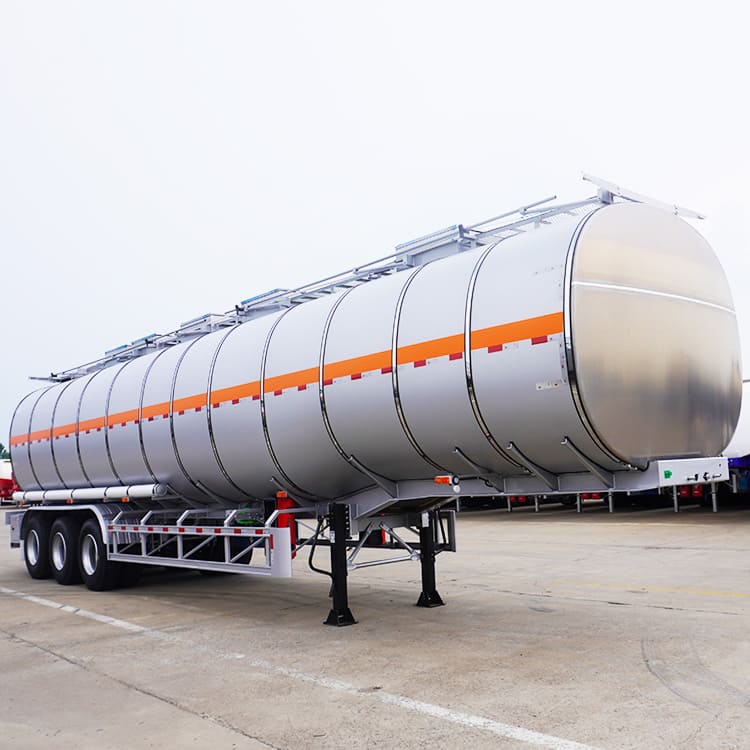

55000L Stainless Steel Tanker Trailers for Sale | Tanker Trailer Price
55000L Stainless Steel Tanker Trailers for Sale | Tanker Trailer Price
55000L Stainless Steel Tanker Trailers for Sale | Tanker Trailer Price
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 55000 Liters
Tank Body Material: 5mm or 6mm/ stainless steel
End plate: 5mm or 6mm/ stainless steel
Manhole Cover: stainless steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

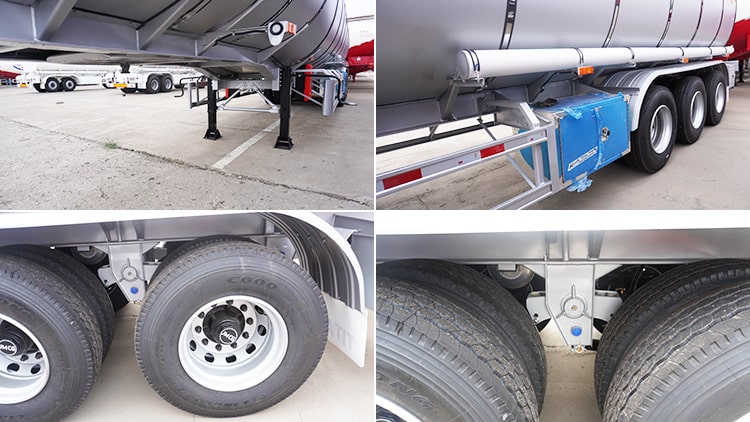

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

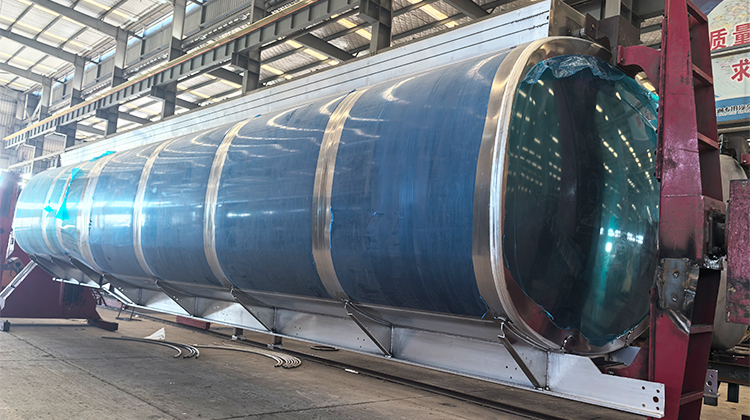

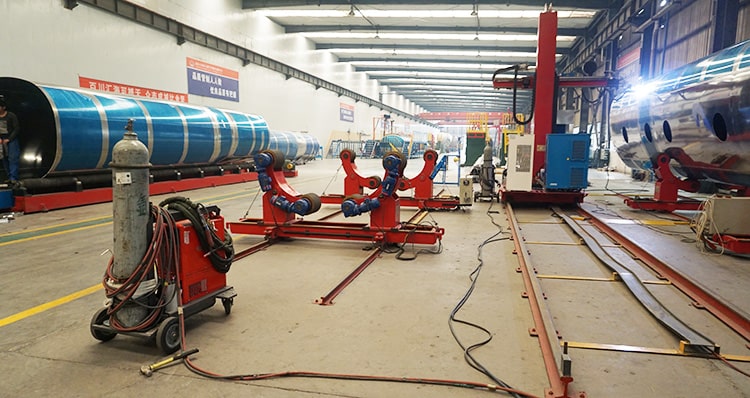

The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.
Each compartment of the TITAN tank has a separate bottom valve, making it easier to load and unload liquid.

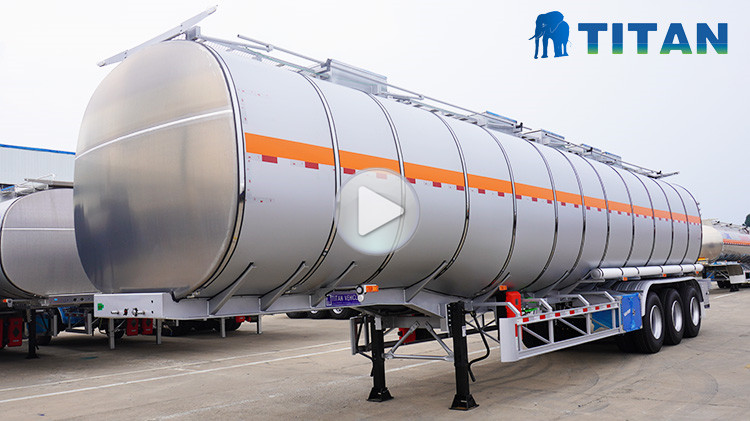

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
