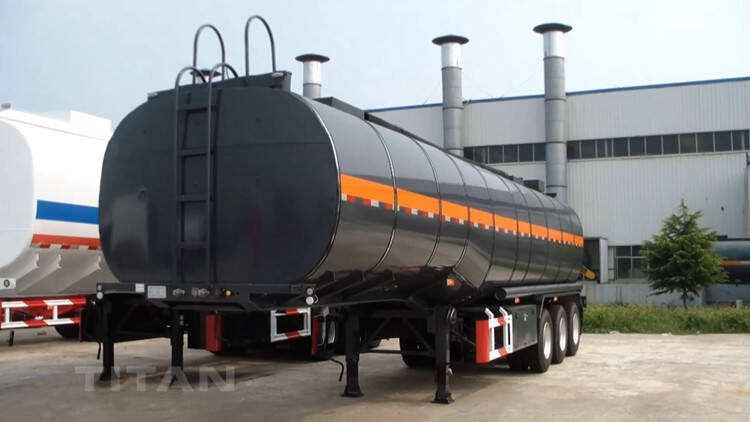

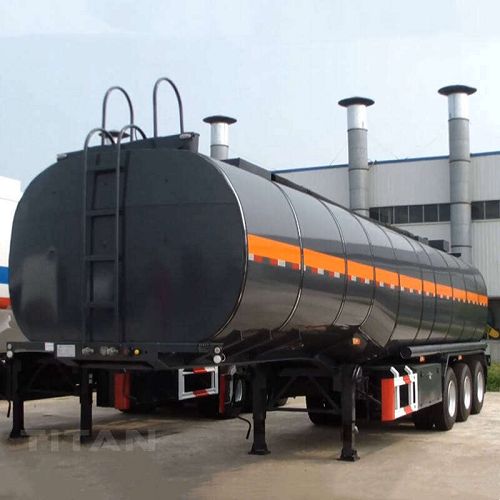

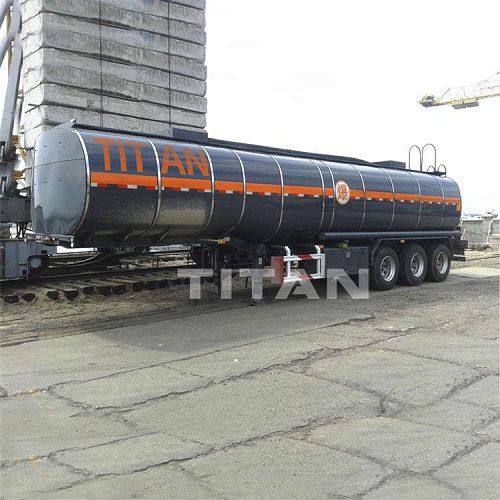

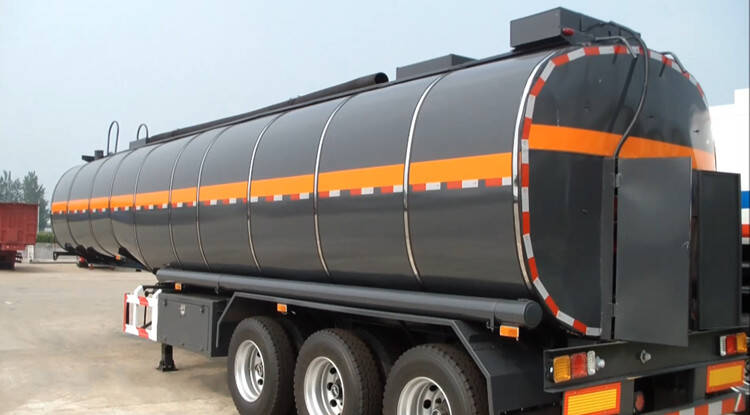

TITAN manufacture high quality Asphalt Bitumen tank trailer is used to transport liquide asphalt from oil refinery and wharf to asphalt storge depot, also transport asphalt from asphalt storage depot to asphalt plant.
Bitumen tank trailer also called heated bitumen tank trailer, heated bitumen transport, hot asphalt tanker, Insulation asphalt tanker, Liquid Asphalt tank, semi-trailer hot asphalt tanker
The long service life and low maintenance of TITAN Bitumen tank trailer have been well accepted by the customers across the world.
Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
The tanker can be produce with 1 compartments to 7 compartments according to customer demand
Axles: The axle can be selected in different famous brand of BPW and FUWA . domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
Suspension system: Mechanical suspension and air suspension series optional.
Brand: TITAN 45000 liters Fuel Tanker Trailer
Dimensions: 12500 mm(Length) x 2500 mm(Length) x 4000mm(Height)
Tank Capacity: 45,000 liters
Tank Material: Q235B carbon steel
Compartments: 1 to 7 compartments, based on customer needs
Discharge: 3” or 4” ball valves
Discharge Pipes: 4” rubber hose, 2 units, 6 metre/each
Ladder: The tank is equipped with a front or rear ladder to facilitate the arrival to manholes.
Main Beams: Q345B steel fabricated I beams
Landing Gears: Jost two speed landing gear, driver side crank
Axles: 3 axles, 13T/16T
Suspensions: Merchanical suspension or air suspension
Brake System: WABCO

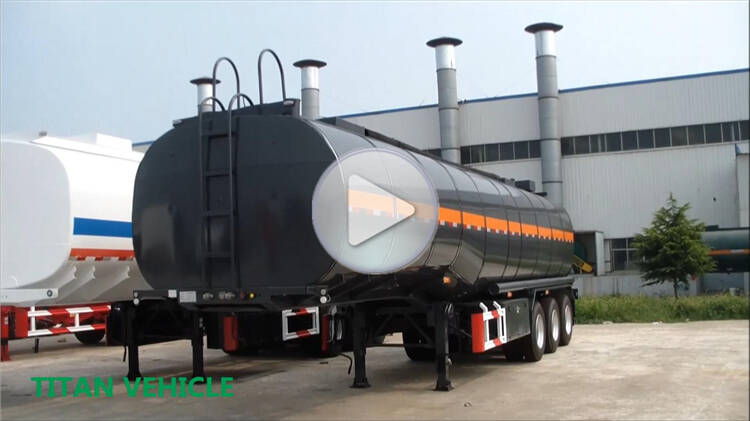

Asphalt Bitumen Tank Trailer details display video
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
